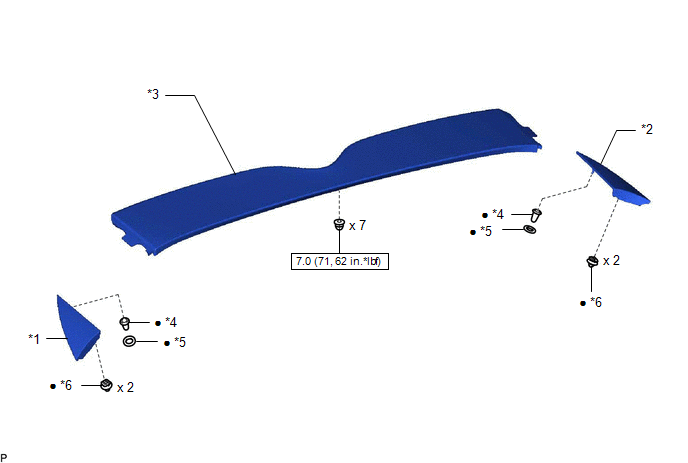

Components [09/2016 - ]
| Callout | Description | Callout | Description |
| *1 | REAR ROOF DRIP SIDE FINISH MOULDING SUB-ASSEMBLY LH | *2 | REAR ROOF DRIP SIDE FINISH MOULDING SUB-ASSEMBLY RH |
| *3 | ROOF TOP MOULDING SUB-ASSEMBLY | *4 | CAP |
| *5 | GASKET | *6 | CLIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
