Components [09/2016 - ]

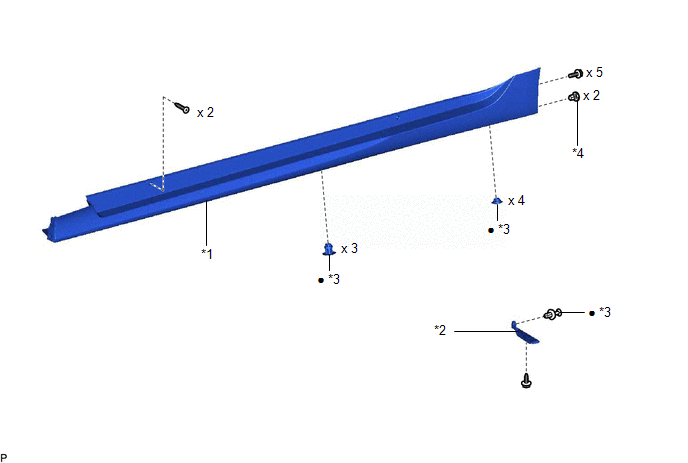

Fig 1: Rocker Panel Moulding Replacement Components
GTY882440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BODY ROCKER PANEL MOULDING ASSEMBLY *2 REAR WHEEL HOUSE FRONT PLATE
*3 CLIP *4 GROMMET
• Non-reusable part - -
