Components [09/2016 - ]

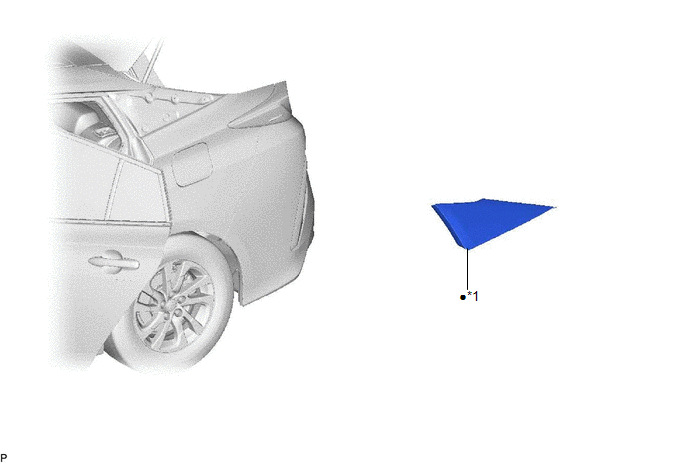

Fig 1: Quarter Garnish Replacement Components With Torque Specifications
GTY713029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 QUARTER PILLAR COVER SUB-ASSEMBLY - -
• Non-reusable part - -
