Removal [09/2016 - ]: Procedure

REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 6 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 6 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 - ]

REMOVE LIGHT CONTROL RHEOSTAT (COMBINATION SWITCH ASSEMBLY)

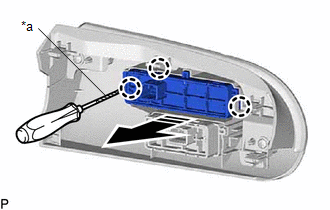

Using a screwdriver, disengage the 3 claws and remove the light control rheostat (combination switch assembly) as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Remove in this Direction

HINT:

Tape the screwdriver tip before use.
