Installation [09/2016 - ]: Procedure

  1. INSTALL LIGHT CONTROL RHEOSTAT (COMBINATION SWITCH ASSEMBLY)

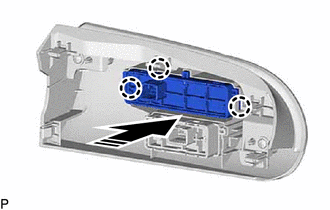

    1. Engage the 3 claws to install the light control rheostat (combination switch assembly) as shown in the illustration.
      GTY737749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Refer to PROCEDURE - Step 26 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 26 [05/2019 - ]
