Reassembly [09/2016 - ]: Procedure

  1. INSTALL NO. 2 COMBINATION METER MIRROR
    1. Engage the 2 guides.
      GTY576490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 combination meter mirror with the 3 screws.
  2. INSTALL COMBINATION METER MIRROR
    1. Engage the 2 guides to install the combination meter mirror as shown in the illustration.
      GTY574169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 2 claws to install the mirror clip and combination meter mirror as shown in the illustration.
      GTY541584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL COMBINATION METER WIRE
    1. Connect the connector.
      GTY576060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clamps to install the combination meter wire.
  4. INSTALL COMBINATION DISPLAY
    1. Engage the 2 guides as shown in the illustration.
      GTY575563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the combination display with the 2 screws.

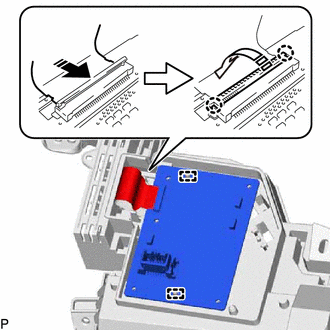

  5. INSTALL COMBINATION METER MIRROR ECU
    1. Engage the 2 guides.
      GTY725382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Connect the connector and push down the holder as indicated by the arrow, in the order shown in the illustration to engage the 2 claws.
      NOTE:
      • Be sure to connect the connector securely.
      • Be sure to engage the claws securely.
    3. Connect the 2 connectors to install the combination meter mirror ECU.
      GTY539229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 COMBINATION METER MIRROR PLATE
    1. Install the No. 1 combination meter mirror plate with the 5 screws.
      GTY604251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 COMBINATION METER MIRROR CASE
    1. Engage the 2 guides and 6 claws as shown in the illustration.
      GTY560425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the No. 1 combination meter mirror case with the screw.
      GTY583357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
