Disassembly [09/2016 - ]: Procedure

  1. REMOVE NO. 1 COMBINATION METER MIRROR CASE
    1. Remove the screw.
      GTY583357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws and 2 guides to remove the No. 1 combination meter mirror case as shown in the illustration.
      GTY567814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 1 COMBINATION METER MIRROR PLATE
    1. Remove the 5 screws and No. 1 combination meter mirror plate.
      GTY576997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COMBINATION METER MIRROR ECU
    1. Disconnect the 2 connectors.
      GTY597650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

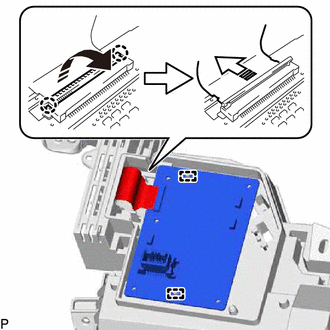

    2. Disengage the 2 claws and raise the holder in the direction indicated by the arrow (1) shown in the illustration.
      GTY720257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Make sure not to rotate the holder 90° or more, or it may be damaged.

    3. Disconnect the connector in the direction indicated by the arrow (2) shown in the illustration.
    4. Disengage the 2 guides to remove the combination meter mirror ECU.
  4. REMOVE COMBINATION DISPLAY
    1. Remove the 2 screws.
      GTY568425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 guides to remove the combination display as shown in the illustration.
  5. REMOVE COMBINATION METER WIRE
    1. Disconnect the connector.
      GTY576061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps to remove the combination meter wire.
  6. REMOVE COMBINATION METER MIRROR
    1. Disengage the 2 claws and remove the mirror clip as shown in the illustration.
      GTY599504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 guides to remove the combination meter mirror as shown in the illustration.
      GTY581980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE NO. 2 COMBINATION METER MIRROR
    1. Remove the 3 screws.
      GTY576491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the No. 2 combination meter mirror.
