Disassembly [09/2016 - ]: Procedure

  1. REMOVE COMBINATION METER GLASS
    1. Remove the 9 bushes.
      GTY566554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 12 claws to remove the combination meter glass.
      GTY603733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 COMBINATION METER COVER
    1. Remove the 2 screws.
      GTY566555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 10 claws to remove the No. 1 combination meter cover.
  3. REMOVE NO. 1 COMBINATION METER PLATE
    1. Disengage the 3 guides and remove the No. 1 combination meter plate.
      GTY590609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 2 COMBINATION METER CASE
    1. Remove the screw.
      GTY555972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the No. 2 combination meter case.
      GTY555968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws.
      GTY555971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides and disconnect the connector to remove the No. 2 combination meter case with combination meter multi-display as shown in the illustration.
      GTY540641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:
      • Make sure to pull the connector straight up when disconnecting it as it is easily damaged.
      • Do not apply excessive force to the connector.
    5. Disengage the 2 guides to remove the combination meter multi-display from the No. 2 combination meter case as shown in the illustration.
      GTY608828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE NO. 2 METER CIRCUIT PLATE
    1. Remove the 4 screws.
      GTY604254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 guides to remove the No. 2 meter circuit plate as shown in the illustration.
      GTY566035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE METER CIRCUIT PLATE
    1. Disengage the 4 claws and 4 guides as shown in the illustration.
      GTY718882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

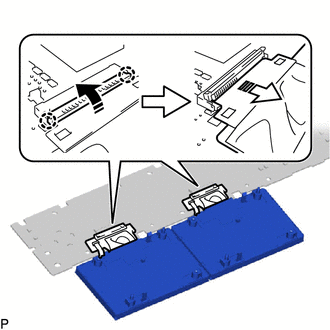

    2. Disengage the 4 claws and raise each holder in the direction indicated by the arrow (1) shown in the illustration.
      GTY724433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      Make sure not to rotate the holder 90° or more, or it may be damaged.

    3. Disconnect each connector in the direction indicated by the arrow (2) shown in the illustration to remove the TFT display from the meter circuit plate.
