Parts Location [09/2016 - 05/2019]: Illustration

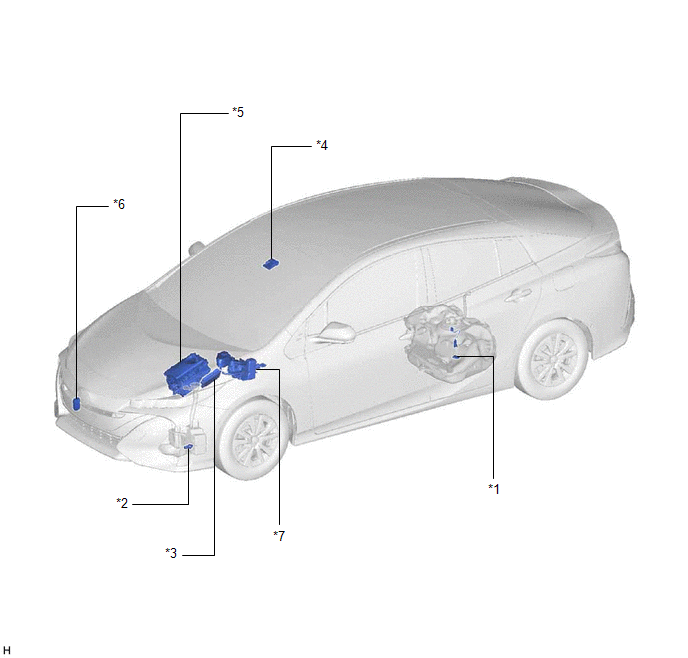

Fig 1: Meter / Gauge System Parts Location (1 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SENDER GAUGE ASSEMBLY	*2	LEVEL WARNING SWITCH ASSEMBLY (w/ Washer Fluid Level Warning)
*3	ECM	*4	FORWARD RECOGNITION CAMERA
*5	INVERTER WITH CONVERTER ASSEMBLY	*6	SWING GRILL ACTUATOR ASSEMBLY
*7	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU	-	-

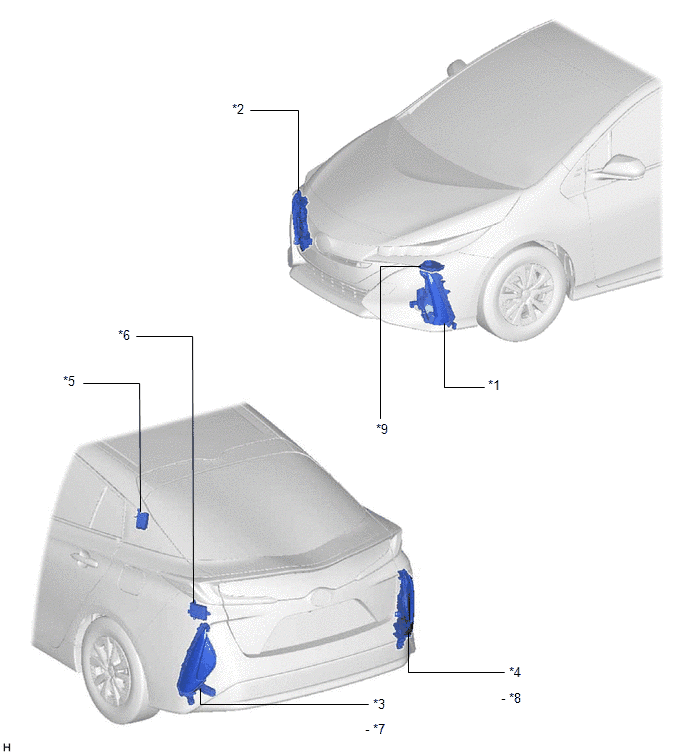

Fig 1: Meter / Gauge System Parts Location (2 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT TURN SIGNAL LIGHT ASSEMBLY LH	*2	FRONT TURN SIGNAL LIGHT ASSEMBLY RH
*3	REAR TURN SIGNAL LIGHT ASSEMBLY LH	*4	REAR TURN SIGNAL LIGHT ASSEMBLY RH
*5	TIRE PRESSURE WARNING ECU AND RECEIVER	*6	BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)
*7	- REAR TURN SIGNAL LIGHT LENS AND BODY LH	*8	- REAR TURN SIGNAL LIGHT LENS AND BODY RH
*9	NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH	-	-

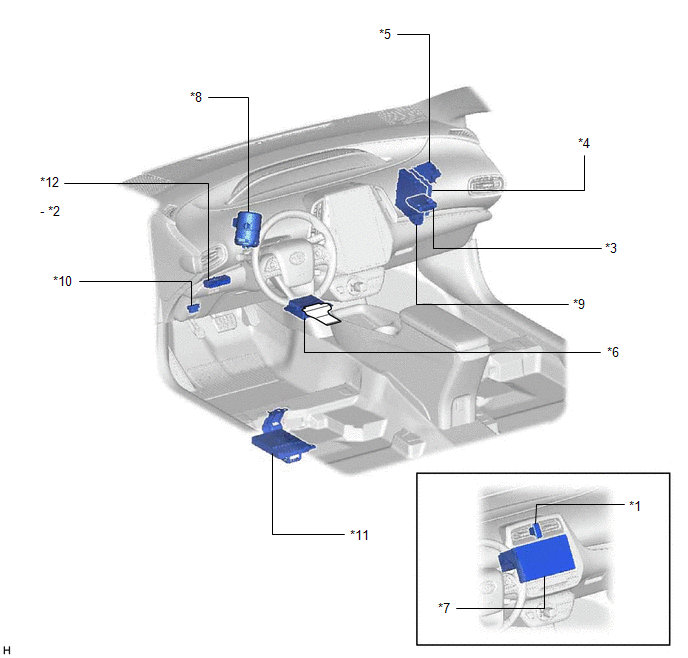

Fig 1: Meter / Gauge System Parts Location (3 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HAZARD WARNING SIGNAL SWITCH ASSEMBLY (for 7 Inch Display Navigation Receiver Type)	*2	LIGHT CONTROL RHEOSTAT SWITCH
*3	DRIVING SUPPORT ECU ASSEMBLY	*4	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*5	CLEARANCE WARNING ECU ASSEMBLY (w/ Intelligent Clearance Sonar System)	*6	AIRBAG ECU ASSEMBLY
*7	NAVIGATION RECEIVER ASSEMBLY (for 7 Inch Display)	*8	POWER STEERING ECU ASSEMBLY
*9	HYBRID VEHICLE CONTROL ECU	*10	DLC3
*11	STEREO COMPONENT AMPLIFIER ASSEMBLY	*12	COMBINATION SWITCH ASSEMBLY

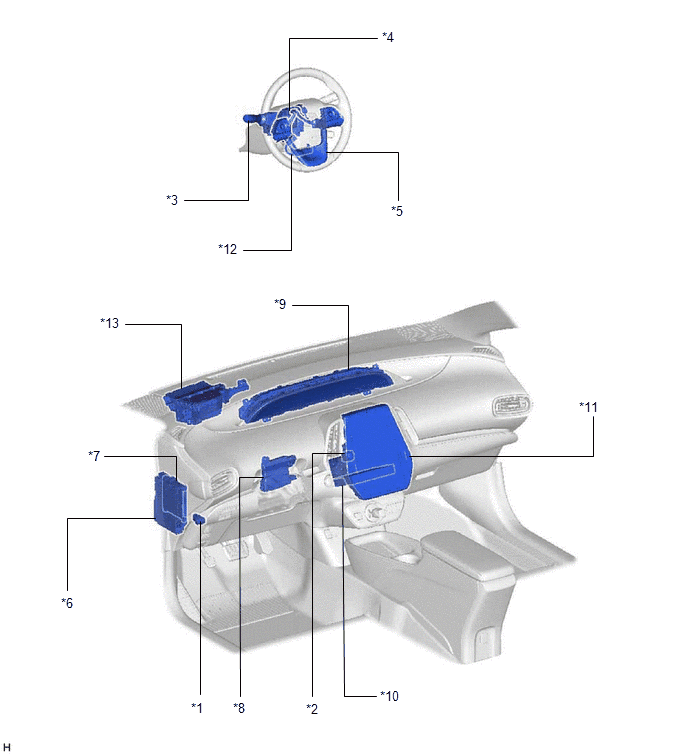

Fig 1: Meter / Gauge System Parts Location (4 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL LID OPENER SWITCH	*2	HAZARD WARNING SIGNAL SWITCH ASSEMBLY (for 11.6 Inch Display Navigation Receiver Type)
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	SPIRAL CABLE SUB-ASSEMBLY
*5	STEERING PAD SWITCH ASSEMBLY	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE - HAZ FUSE
*7	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*8	AIR CONDITIONING AMPLIFIER ASSEMBLY
*9	COMBINATION METER ASSEMBLY - METER CIRCUIT PLATE - NO. 2 METER CIRCUIT PLATE	*10	DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)
*11	NAVIGATION RECEIVER ASSEMBLY (for 11.6 Inch Display)	*12	STEERING WHEEL HEATER CONTROL ASSEMBLY (w/ Heated Steering Wheel System)
*13	METER MIRROR SUB-ASSEMBLY (w/ Headup Display System) - COMBINATION METER MIRROR ECU	-	-

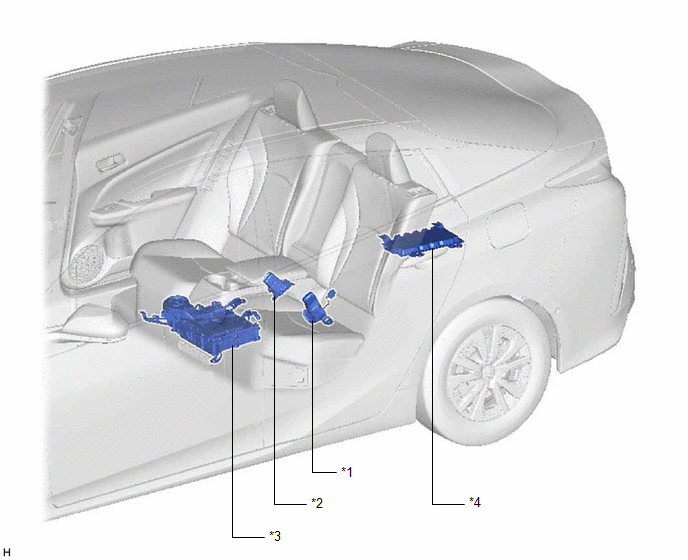

Fig 1: Meter / Gauge System Parts Location (5 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT INNER BELT ASSEMBLY LH	*2	REAR SEAT INNER BELT ASSEMBLY RH
*3	ELECTRIC VEHICLE CHARGER ASSEMBLY	*4	BATTERY ECU ASSEMBLY

Fig 1: Meter / Gauge System Parts Location (6 Of 6) (09/2016 - 05/2019)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE OIL LEVEL SENSOR	*2	ENGINE OIL PRESSURE SWITCH ASSEMBLY
*3	ENGINE COOLANT TEMPERATURE SENSOR	-	-
