Vehicle Proximity Notification System Warning Message Display Malfunction [09/2016 - 07/2020]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

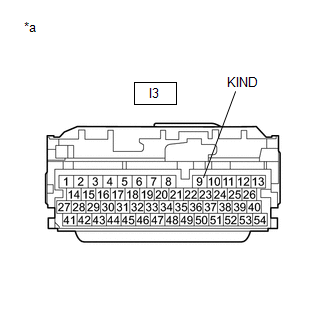

1. Disconnect the I3 hybrid vehicle control ECU connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   I3-9 (KIND) - Body ground	Power switch on (IG)	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the power switch off.
2. Connect SST to terminal I3-9 (KIND) and body ground.
   • SST: 09843-18040
3. Turn the power switch on (IG).
4. Wait 5 seconds or more.
5. Check the combination meter assembly display.

   Result

   Result	Proceed to
   "Proximity Notification System Malfunction Visit Your Dealer" displayed on multi-information display	A
   "Proximity Notification System Malfunction Visit Your Dealer" not displayed on multi-information display	B

Result:

A

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [09/2016 - 07/2020]

Result:

B

REPLACE COMBINATION METER ASSEMBLY (METER CIRCUIT PLATE). Refer to  DISASSEMBLY [09/2016 - ]

1. Disconnect the I6 combination meter assembly (meter circuit plate) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I3-9 (KIND) - I6-5 (IND)	Always	Below 1 Ω
   I3-9 (KIND) or I6-5 (IND) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY (METER CIRCUIT PLATE). Refer to  DISASSEMBLY [09/2016 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
