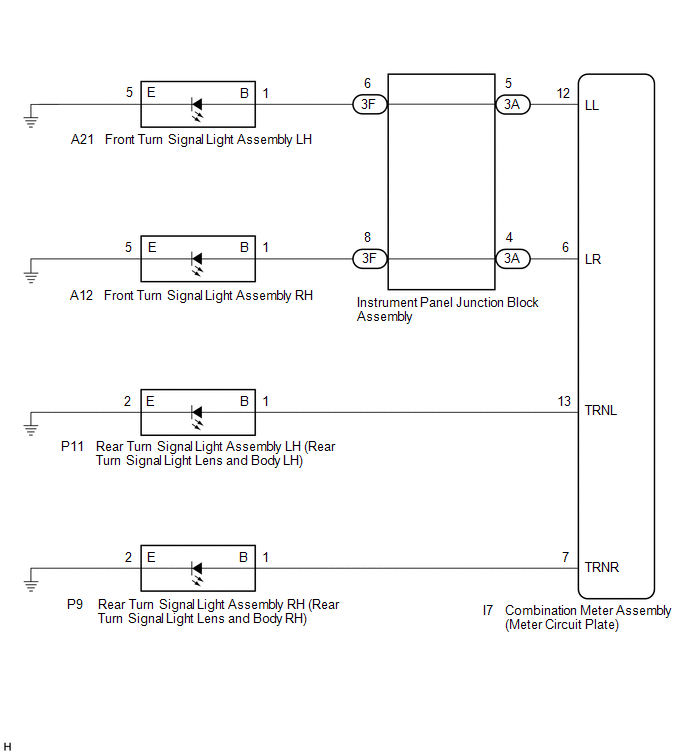

DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [09/2016 - ]: Wiring Diagram

GTY718320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
