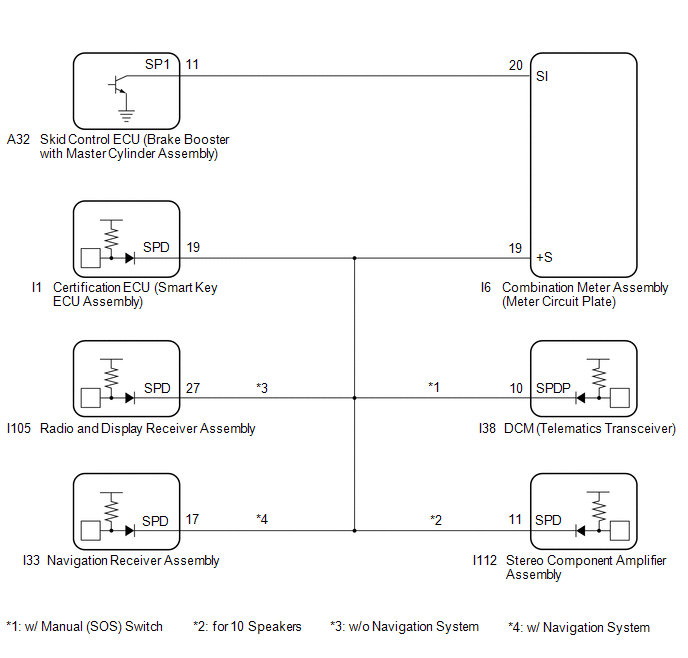

Speed Signal Circuit [05/2019 - 07/2020]: Wiring Diagram

GTY883390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
