System Diagram [04/2018 - ]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

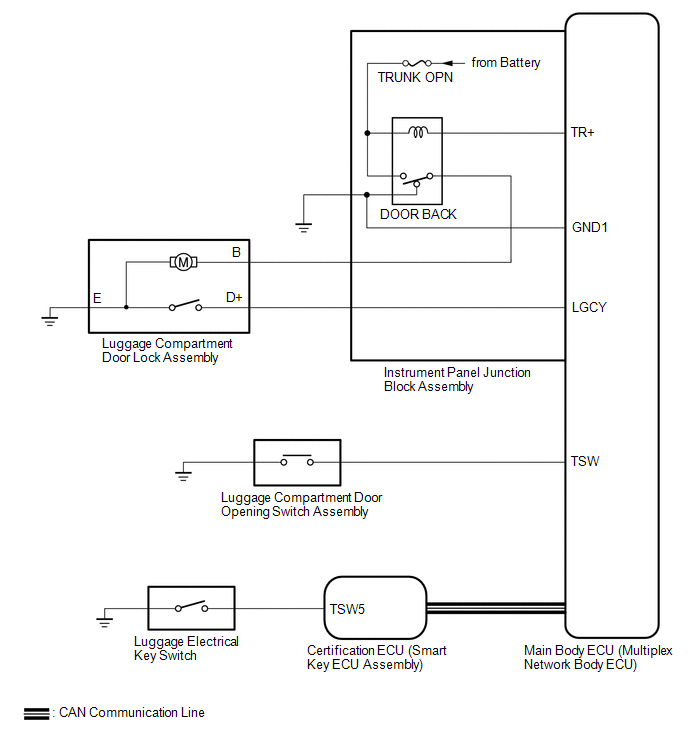

- Luggage Compartment Door Opener System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
COMMUNICATION TABLE
| Sender |
Receiver |
Signal |
Line |
| Certification ECU (Smart Key ECU Assembly) |
Main Body ECU (Multiplex Network Body ECU) |
Luggage compartment door lock assembly open operation signal |
CAN |
