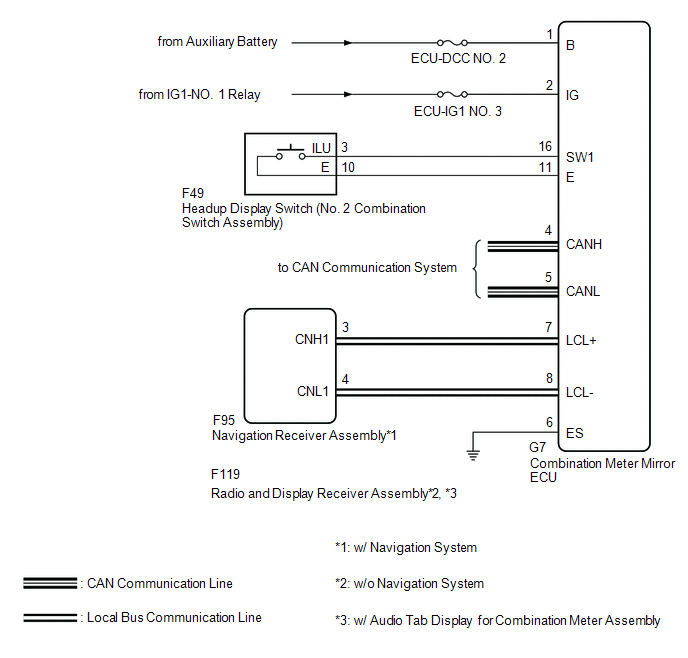

Home >> Toyota >> 2017 >> Prius Four >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> HEADUP Display - Diagnostics - Introduction >> HEADUP Display System >> System Diagram [08/2019 - ] >> System Diagram [08/2019 - ]
