Installation [11/2015 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Engage the clamp.
    2. Connect the 2 connectors.
    3. Engage the 3 clips.

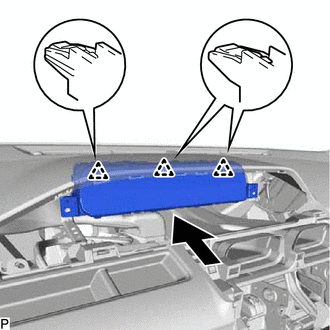

      GTY330910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the combination meter assembly with the 2 screws.
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 and Refer to PROCEDURE - Step 8

  3. INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 9 and Refer to PROCEDURE - Step 9

  4. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 10 and Refer to PROCEDURE - Step 10

  5. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 11 and Refer to PROCEDURE - Step 11

  6. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12 and Refer to PROCEDURE - Step 12

  7. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    HINT:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2015 - 06/2017] and Refer to INITIALIZATION [06/2017 - ] ).

  8. INSTALL FRONT FLOOR COVER RH

    Refer to PROCEDURE - Step 7 and Refer to PROCEDURE - Step 7
