Parts Location [06/2017 - ]: Illustration

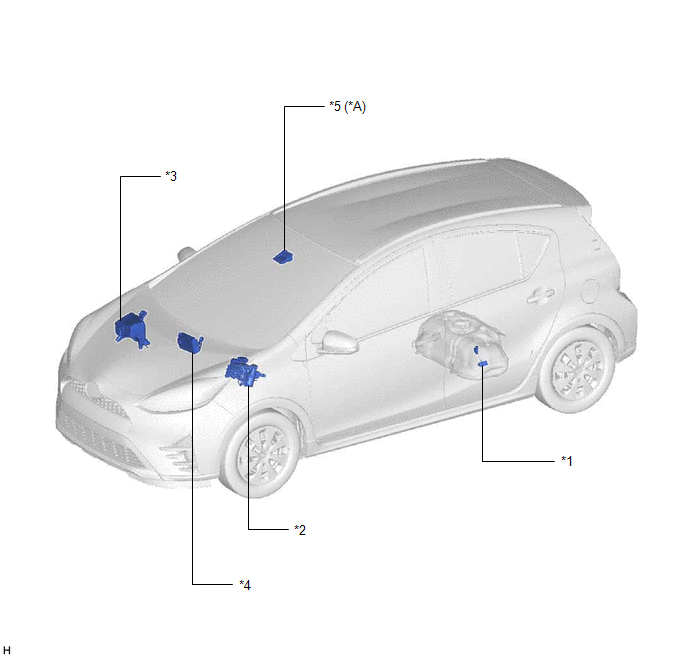

| *A | w/ Pre-collision City Sensor | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
| *3 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - METER FUSE - H-LP LH-HI FUSE - HAZ FUSE - DIM RELAY |
*4 | ECM |
| *5 | PRE-COLLISION CITY SENSOR | - | - |

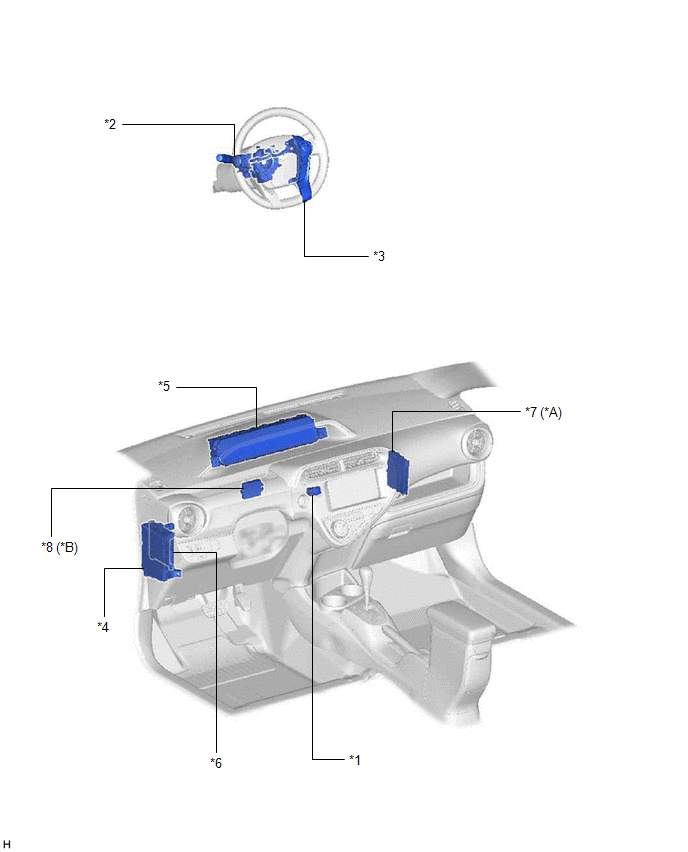

| *A | w/ Smart Key System | *B | w/o Smart Key System (w/ Engine Immobiliser System) |
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | STEERING PAD SWITCH RH | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL FUSE - PANEL FUSE - FOG FR RELAY (w/ Front Fog Light) - TAIL RELAY |
| *5 | COMBINATION METER ASSEMBLY | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | TRANSPONDER KEY ECU ASSEMBLY |

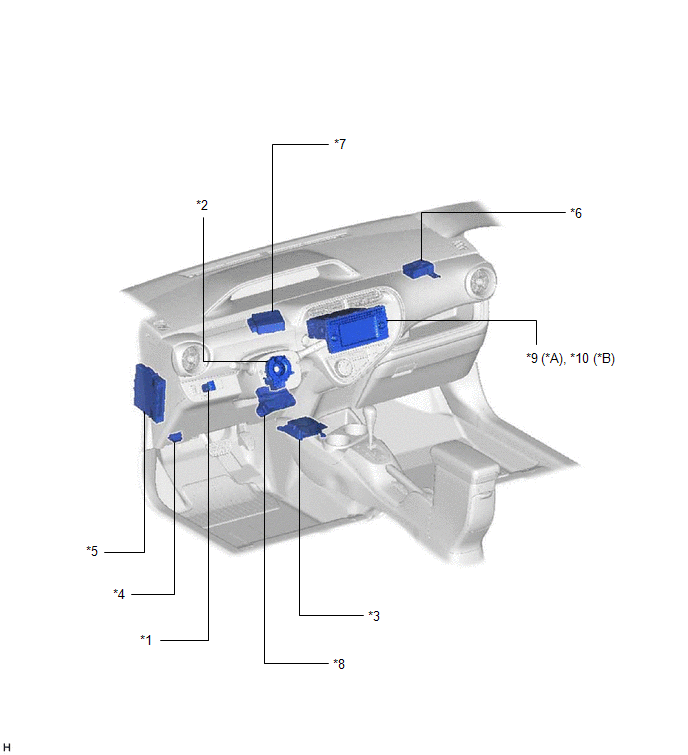

| *A | for Radio and Display Type | *B | for Navigation Receiver Type |
| *1 | LIGHT CONTROL RHEOSTAT | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *3 | AIRBAG SENSOR ASSEMBLY | *4 | DLC3 |
| *5 | HYBRID VEHICLE CONTROL ECU | *6 | VEHICLE APPROACHING SPEAKER CONTROLLER |
| *7 | POWER STEERING ECU ASSEMBLY | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *10 | NAVIGATION RECEIVER ASSEMBLY |

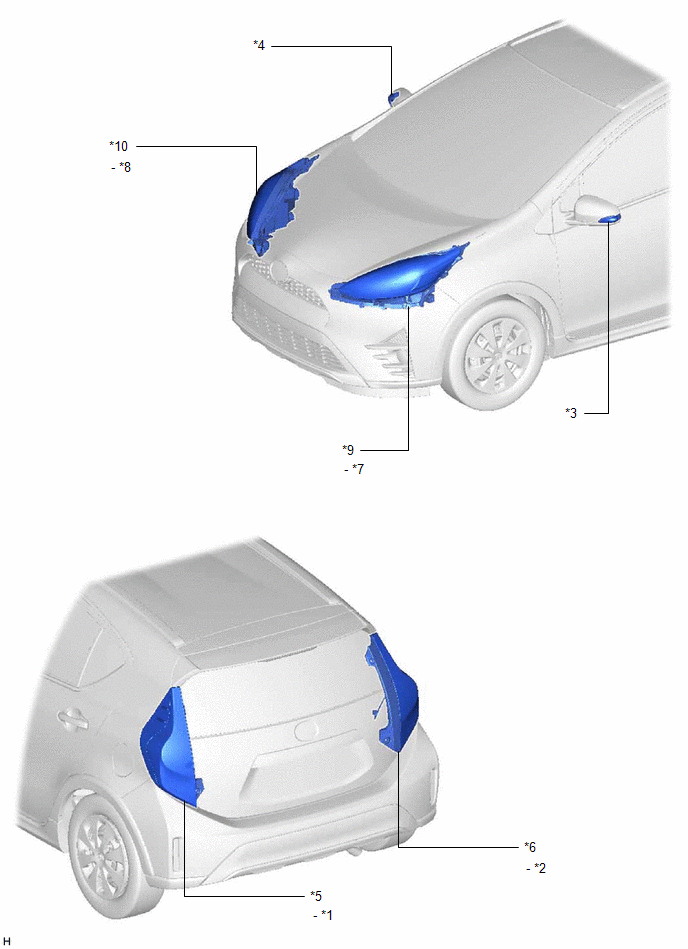

| *1 | REAR TURN SIGNAL LIGHT LH | *2 | REAR TURN SIGNAL LIGHT RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | REAR COMBINATION LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *7 | FRONT TURN SIGNAL LIGHT LH | *8 | FRONT TURN SIGNAL LIGHT RH |
| *9 | HEADLIGHT ASSEMBLY LH | *10 | HEADLIGHT ASSEMBLY RH |
