DTC B1810/53: Short in Driver Side Squib 2nd Step Circuit; DTC B1811/53: Open in Driver Side Squib 2nd Step Circuit; DTC B1812/53: Short to GND in Driver Side Squib 2nd Step Circuit; DTC B1813/53: Short to B+ in Driver Side Squib 2nd Step Circuit [06/2017 - ]: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.
      GTY438987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
      *4 Instrument Panel Wire
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the horn button assembly, spiral cable with sensor sub-assembly and airbag sensor assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the horn button assembly, spiral cable with sensor sub-assembly and airbag sensor assembly.
    5. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

    6. Check that the spiral cable with sensor sub-assembly connector (on the horn button assembly side) is not loose, deformed or damaged.

      OK

      The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

    7. Check that the short springs of the activation prevention mechanisms of the instrument panel wire connector and spiral cable with sensor sub-assembly connector are not deformed or damaged.

      OK

      The short springs are not deformed or damaged.

    4

    NG

    REPLACE WIRE HARNESS

    4

    OK

    See step  2

  2. CHECK HORN BUTTON ASSEMBLY (DRIVER SIDE SQUIB 2ND STEP)
    1. Connect the instrument panel wire to the airbag sensor assembly and spiral cable with sensor sub-assembly.

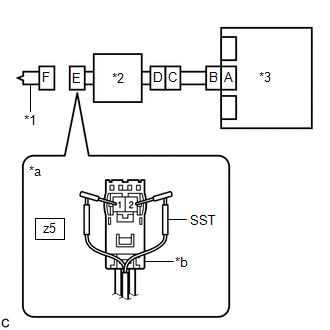

      GTY752380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Horn Button Assembly)
      *b Color: Black
    2. Connect SST (resistance 2.1 Ω) to connector E (black connector).
      WARNING:

      Never connect the tester to the horn button assembly (driver side squib 2nd step) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting it.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Clear the DTCs stored in memory (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    5. Turn the ignition switch off.
    6. Turn the ignition switch to ON (IG), and wait for at least 60 seconds.
    7. Check for DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

      OK

      DTC B1810/53, B1811/53, B1812/53 or B1813/53 is not output.

      HINT:

      Codes other than DTCs B1810/53, B1811/53, B1812/53 and B1813/53 may be output at this time, but they are not related to this check.

    8. Turn the ignition switch off.
    9. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    10. Disconnect SST from connector E.

    Result:

    OK

    REPLACE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [11/2015 - ] )

    Result:

    NG

    See step  3

  3. CHECK DRIVER SIDE SQUIB 2ND STEP CIRCUIT
    1. Disconnect the instrument panel wire from the airbag sensor assembly.
      GTY770782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Horn Button Assembly)
      *b Color: Black
    2. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) auxiliary battery terminal.
      2. Turn the ignition switch to ON (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - Body ground Ignition switch ON (IG) Below 1 V
        z5-1 (D2-) - Body ground Ignition switch ON (IG) Below 1 V
      4. Turn the ignition switch off.
      5. Disconnect the cable from the negative (-) auxiliary battery terminal.
        WARNING:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Check for an open in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - z5-1 (D2-) Always Below 1 Ω
    4. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - Body ground Always 1 MΩ or higher
        z5-1 (D2-) - Body ground Always 1 MΩ or higher
    5. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [06/2017 - ] ).
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - z5-1 (D2-) Always 1 MΩ or higher
      3. Restore the released activation prevention mechanism of connector B to the original condition.

    Result:

    NG

    See step  5

    Result:

    OK

    See step  4

  4. CHECK DTC
    1. Connect the connectors to the horn button assembly and airbag sensor assembly.
      GTY447904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Clear the DTCs stored in memory (Refer to DTC CHECK / CLEAR [11/2015 - ] ).
    4. Turn the ignition switch off.
    5. Turn the ignition switch to ON (IG), and wait for at least 60 seconds.
    6. Check for DTCs (Refer to DTC CHECK / CLEAR [11/2015 - ] ).

      OK

      DTC B1810/53, B1811/53, B1812/53 or B1813/53 is not output.

      HINT:

      Codes other than DTCs B1810/53, B1811/53, B1812/53 and B1813/53 may be output at this time, but they are not related to this check.

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2015 - ] )

    Result:

    NG

    REPLACE AIRBAG SENSOR ASSEMBLY

    Refer to REMOVAL [11/2015 - ] )

  5. CHECK INSTRUMENT PANEL WIRE
    1. Disconnect the instrument panel wire from the spiral cable with sensor sub-assembly.

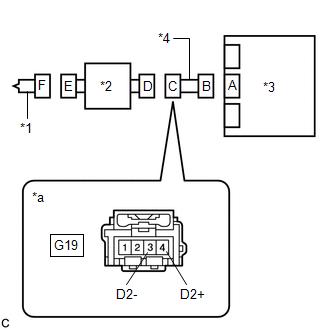

      GTY763663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Spiral Cable with Sensor Sub-assembly)
    2. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) auxiliary battery terminal.
      2. Turn the ignition switch to ON (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        G19-4 (D2+) - Body ground Ignition switch ON (IG) Below 1 V
        G19-3 (D2-) - Body ground Ignition switch ON (IG) Below 1 V
      4. Turn the ignition switch off.
      5. Disconnect the cable from the negative (-) auxiliary battery terminal.
        WARNING:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Check for an open in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G19-4 (D2+) - G19-3 (D2-) Always Below 1 Ω
    4. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G19-4 (D2+) - Body ground Always 1 MΩ or higher
        G19-3 (D2-) - Body ground Always 1 MΩ or higher
    5. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B (Refer to DIAGNOSIS SYSTEM [06/2017 - ] ).
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        G19-4 (D2+) - G19-3 (D2-) Always 1 MΩ or higher
      3. Restore the released activation prevention mechanism of connector B to the original condition.

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

    Result:

    OK

    See step  6

  6. CHECK SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
    1. Check for a short to B+ in the circuit.

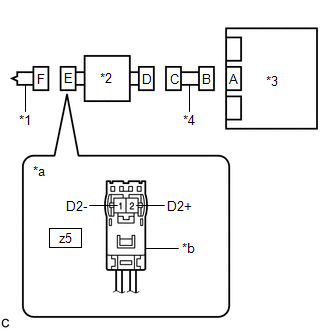

      GTY748046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Horn Button Assembly
      *2 Spiral Cable with Sensor Sub-assembly
      *3 Airbag Sensor Assembly
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Horn Button Assembly)
      *b Color: Black
      1. Connect the cable to the negative (-) auxiliary battery terminal.
      2. Turn the ignition switch to ON (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - Body ground Ignition switch ON (IG) Below 1 V
        z5-1 (D2-) - Body ground Ignition switch ON (IG) Below 1 V
      4. Turn the ignition switch off.
      5. Disconnect the cable from the negative (-) auxiliary battery terminal.
        WARNING:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    2. Check for an open in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - z5-1 (D2-) Always Below 1 Ω
    3. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - Body ground Always 1 MΩ or higher
        z5-1 (D2-) - Body ground Always 1 MΩ or higher
    4. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector D (Refer to DIAGNOSIS SYSTEM [06/2017 - ] ).
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        z5-2 (D2+) - z5-1 (D2-) Always 1 MΩ or higher
      3. Restore the released activation prevention mechanism of connector D to the original condition.

    Result:

    OK

    USE SIMULATION METHOD TO CHECK

    Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2015 - ] )

    Result:

    NG

    REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [11/2015 - ] )
