OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>

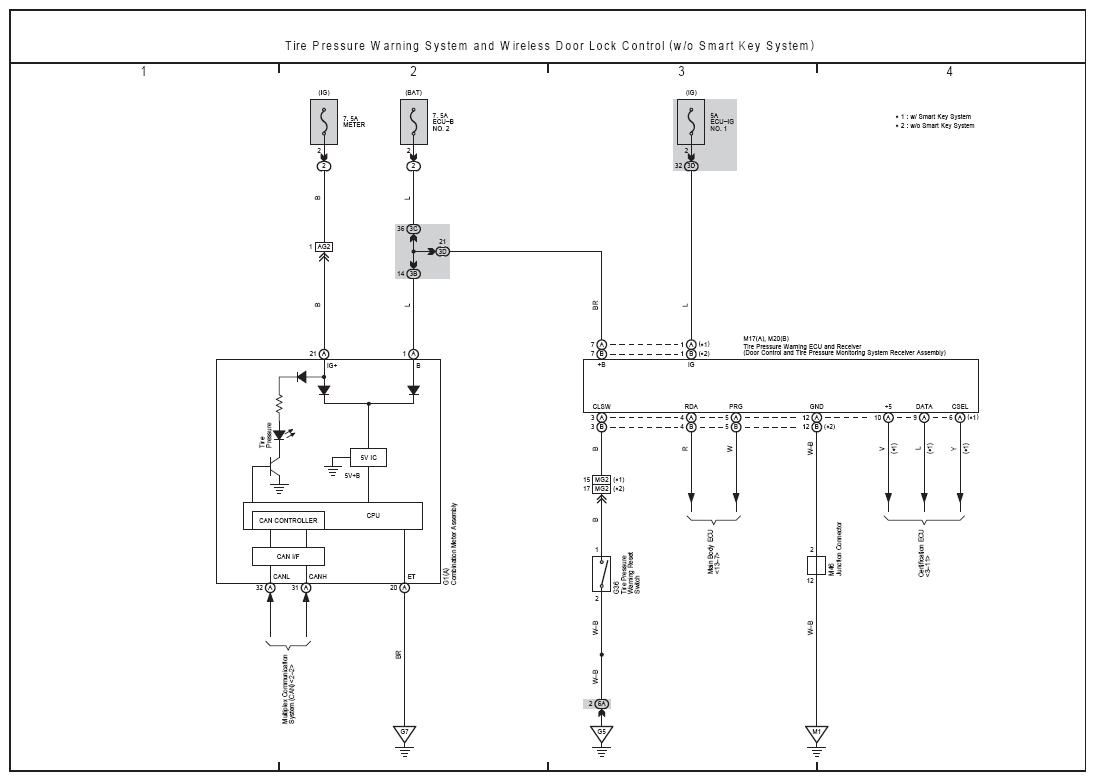

Tire Pressure Warning System And Wireless Door Lock Control (W/O Smart Key System)
Tire Pressure Warning System And Wireless Door Lock Control (W/O Smart Key System)
