Starting (W/O Smart Key System), Hybrid System, Shift Control System, Cruise Control

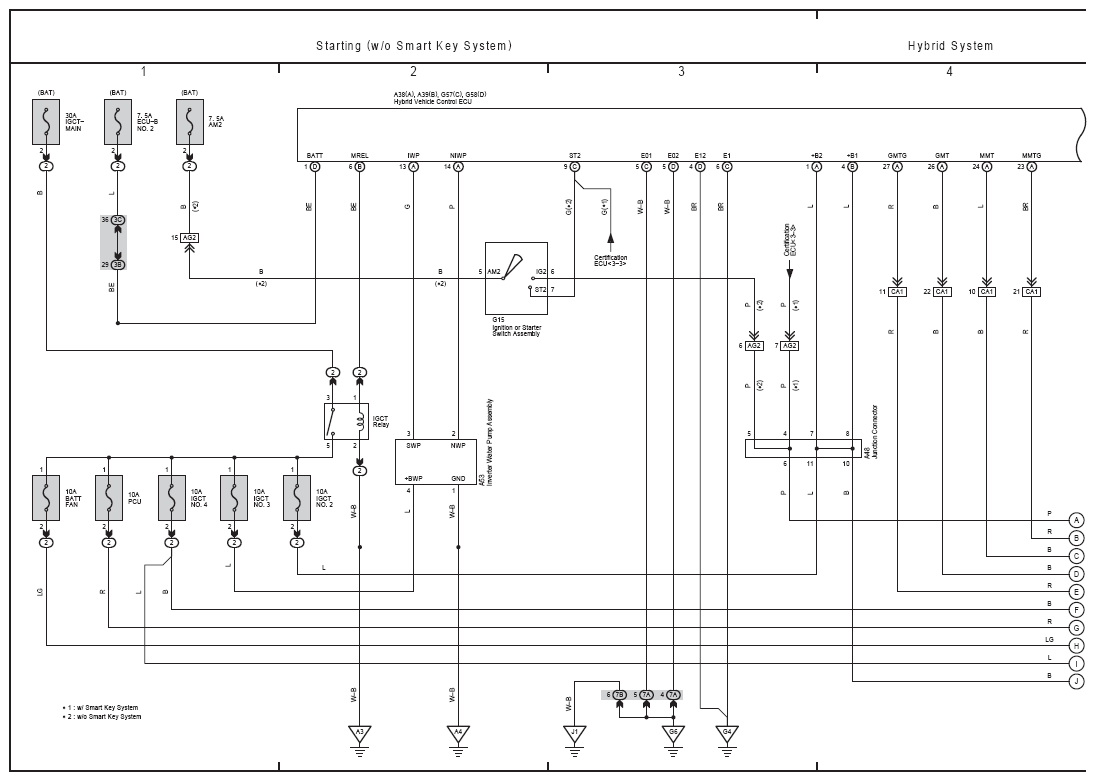

G12232607

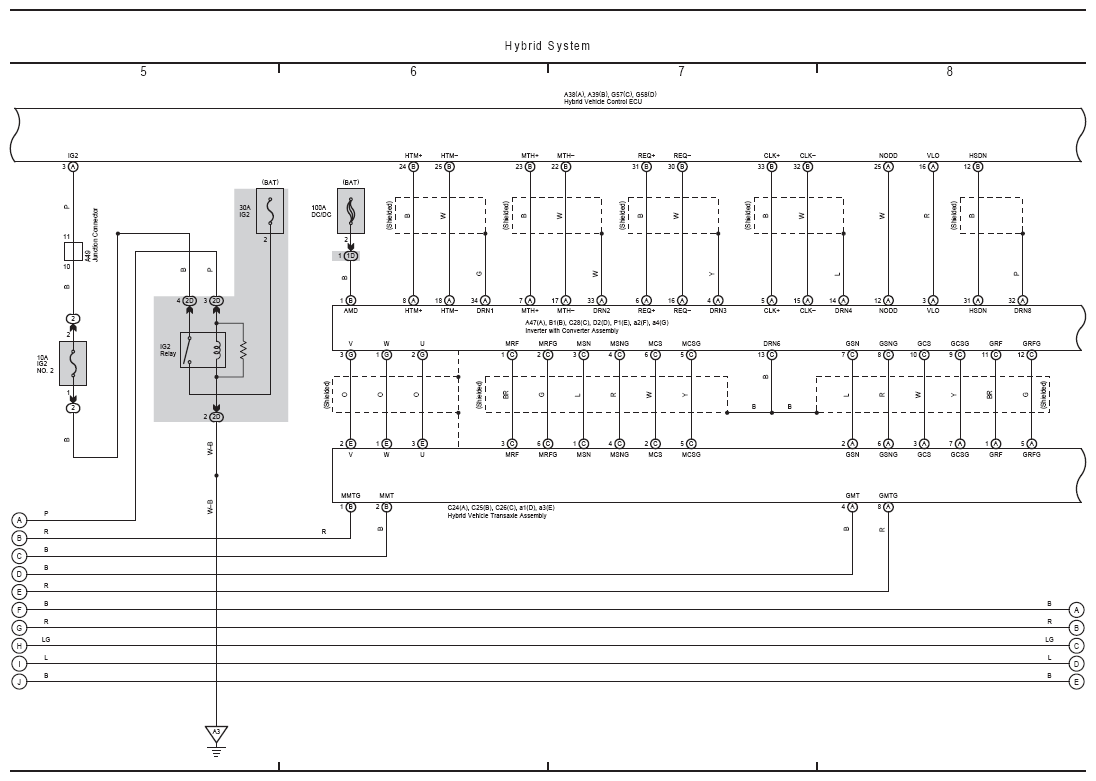

G12232608

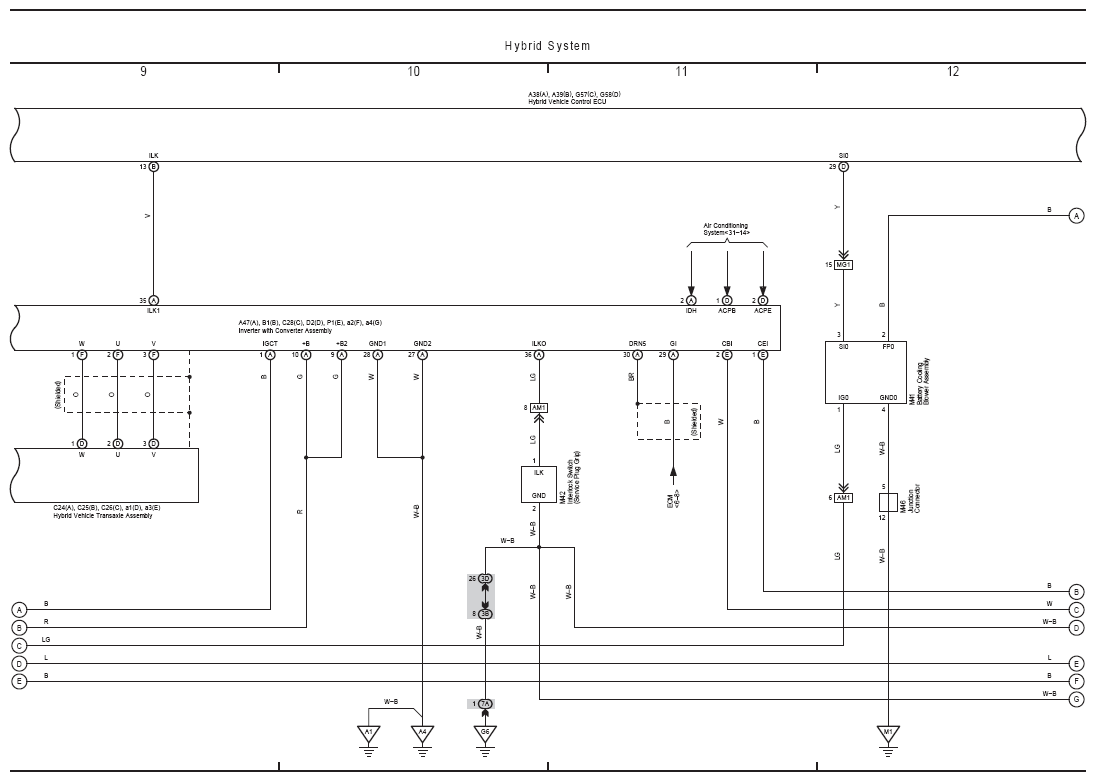

G12232609

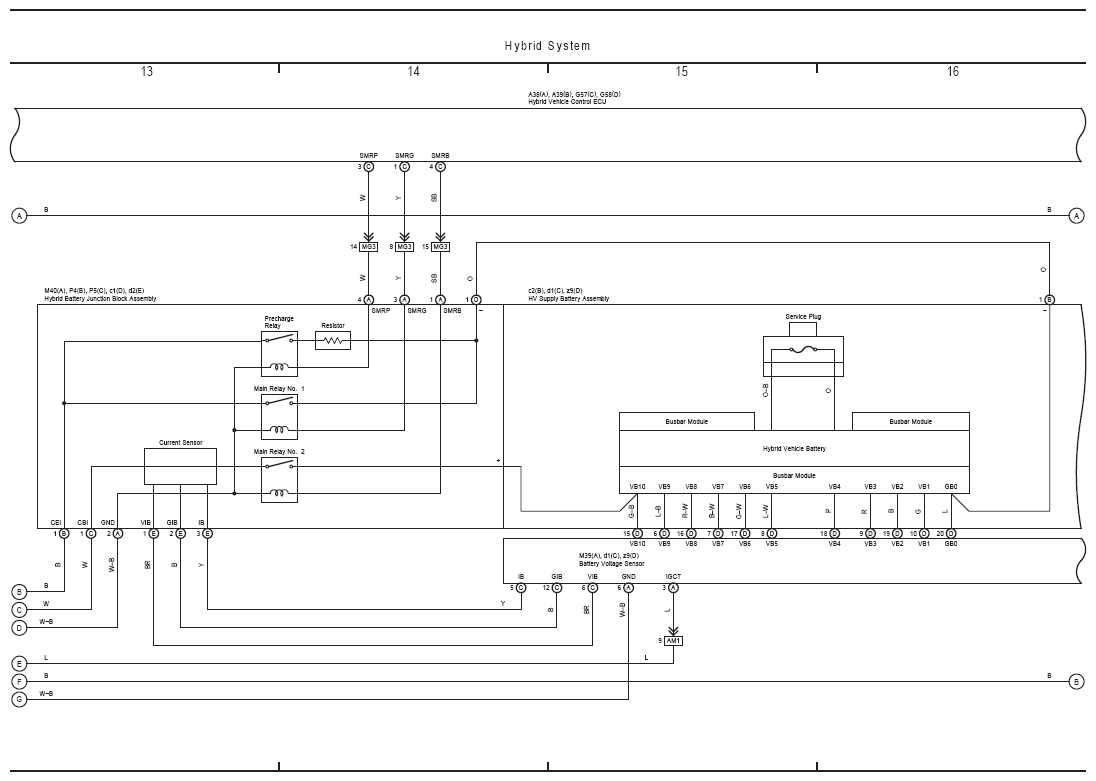

G12232610

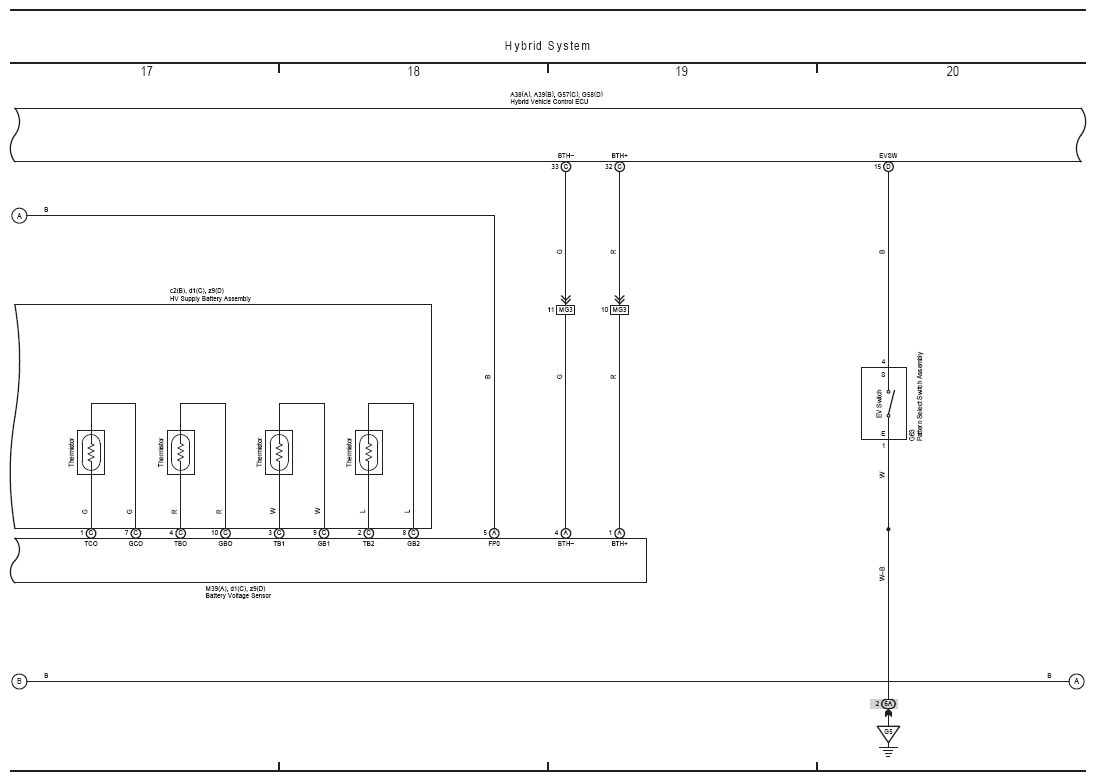

G12232611

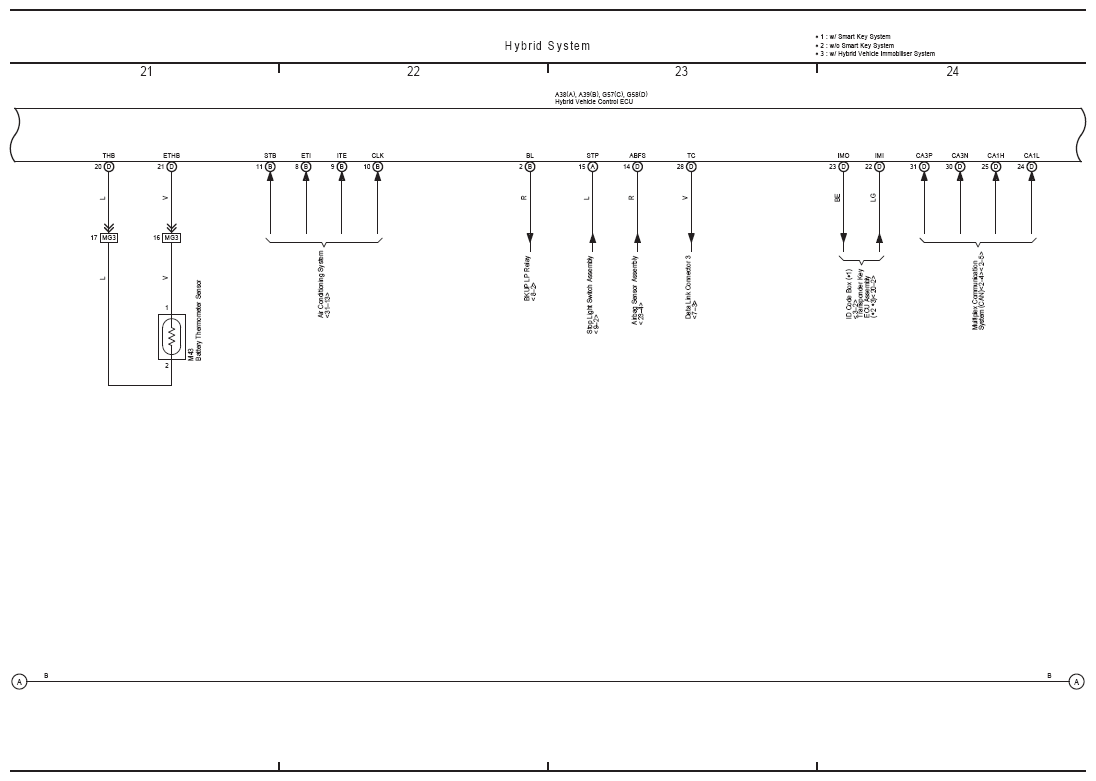

G12232612

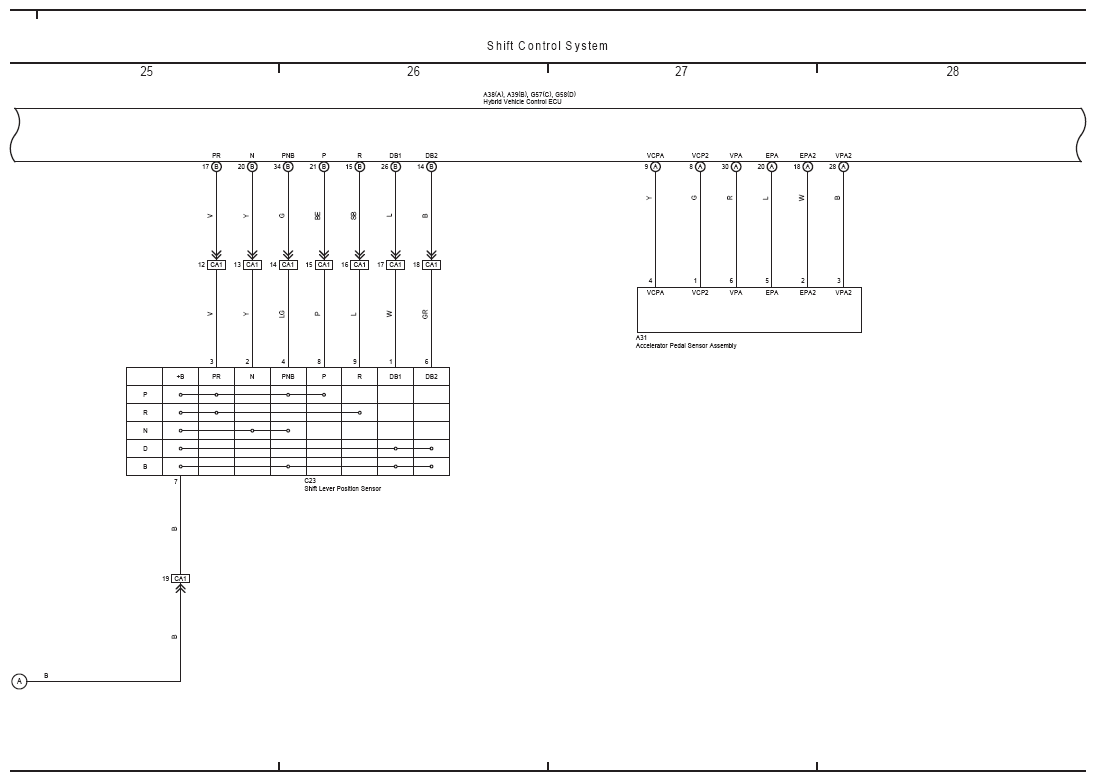

G12232613

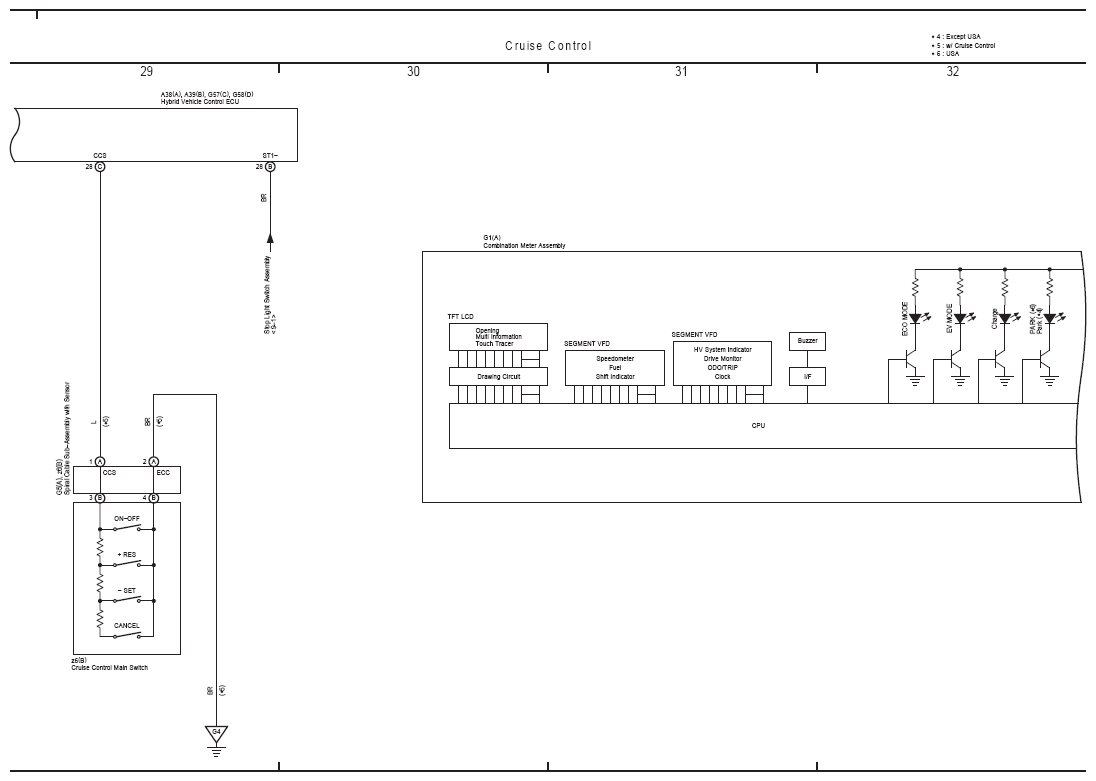

G12232614

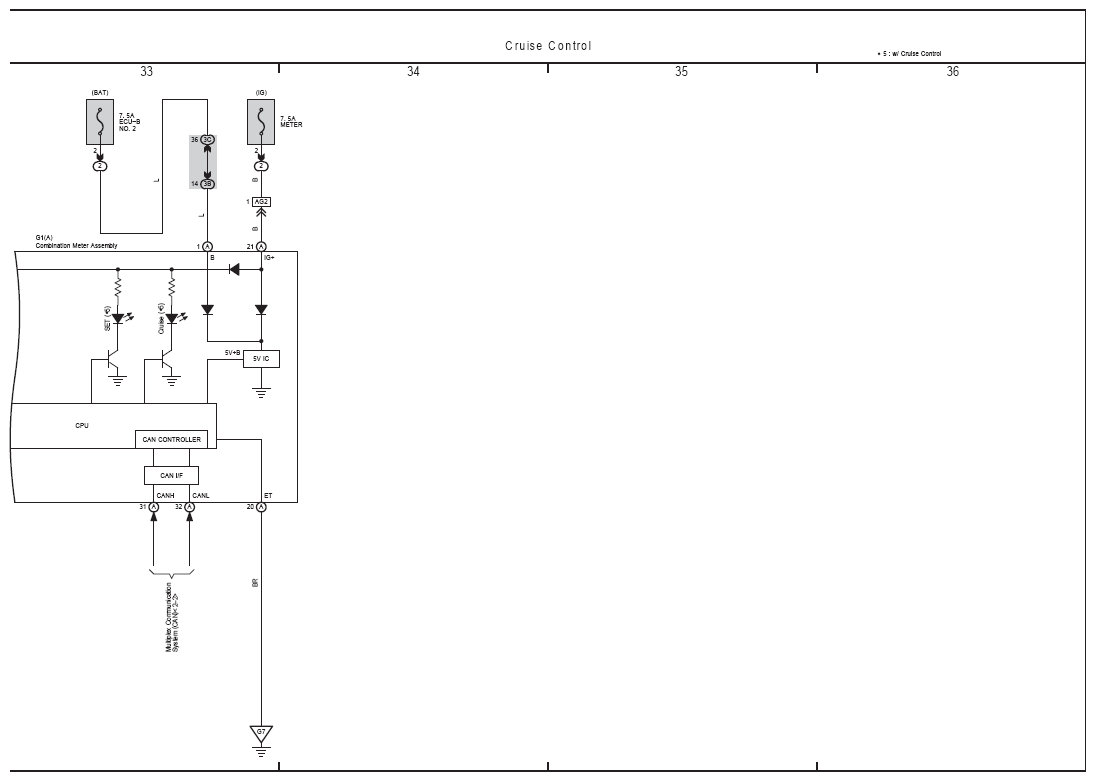

G12232615
