OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>

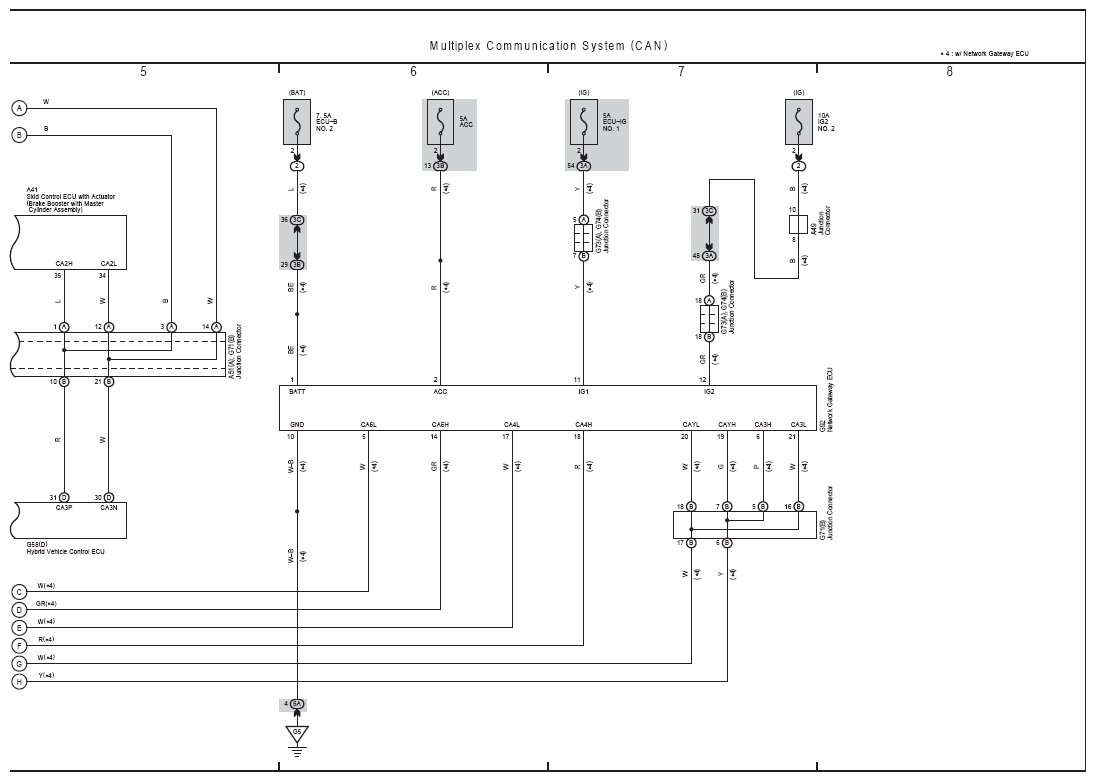

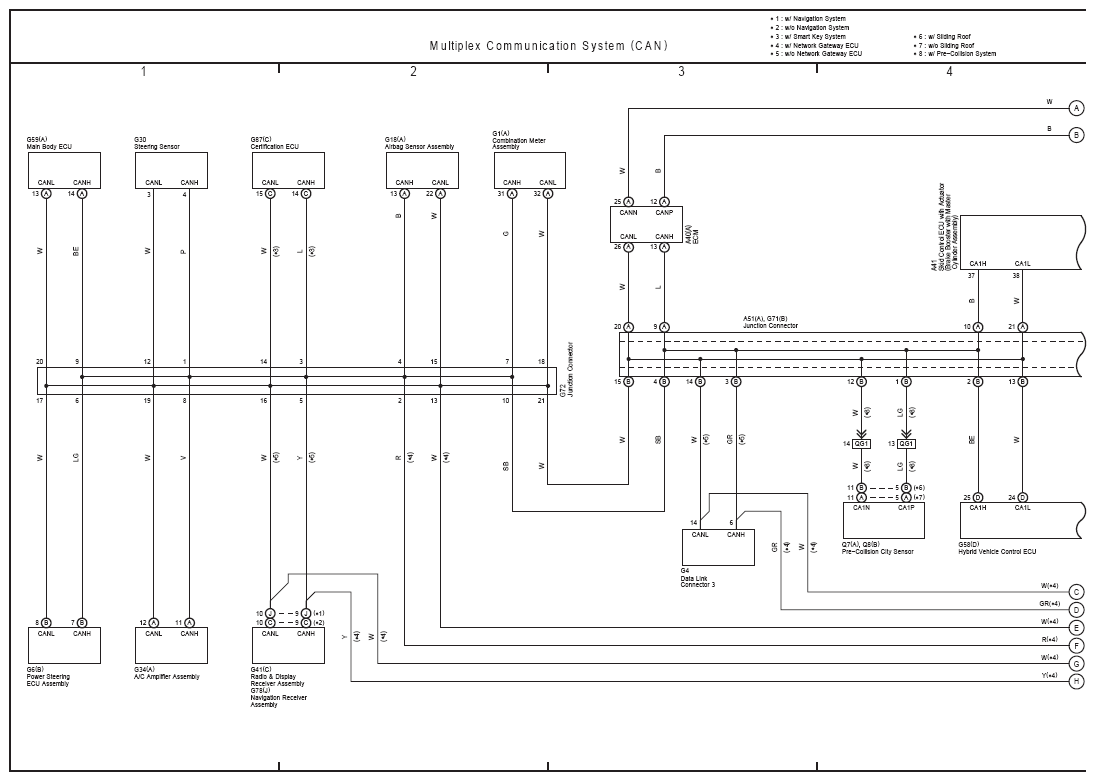

Multiplex Communication System (CAN)
Multiplex Communication System (CAN)
