Overall Electrical Wiring Diagram
>>

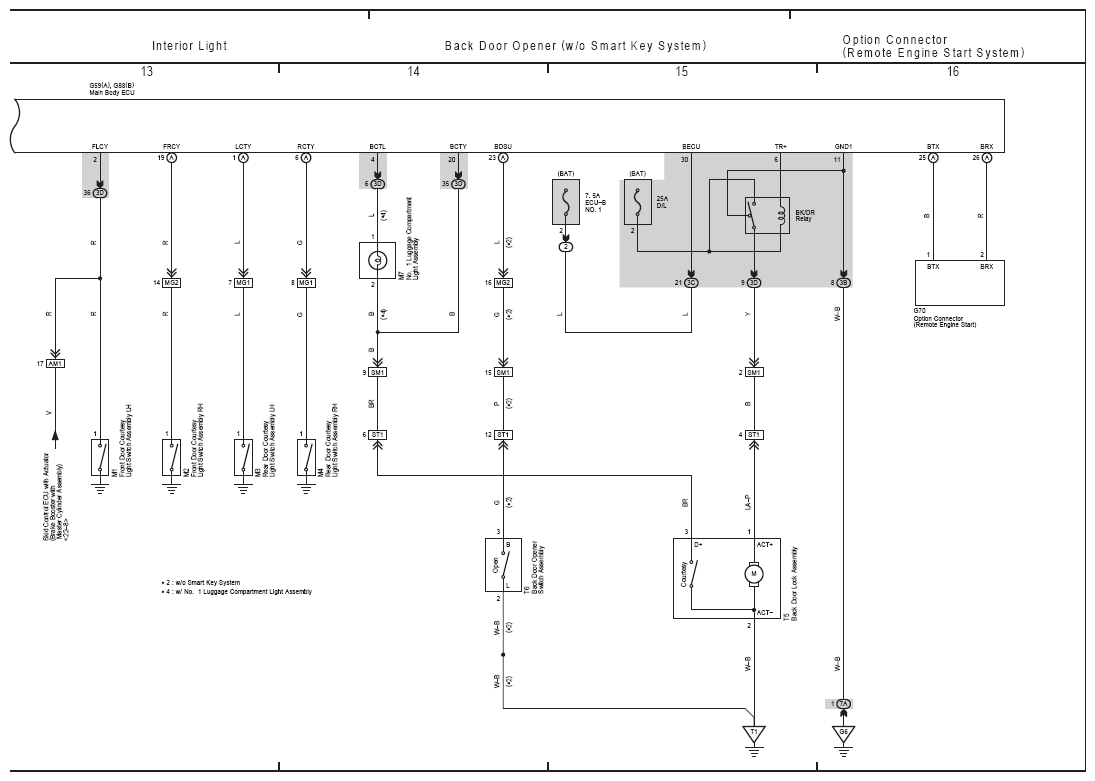

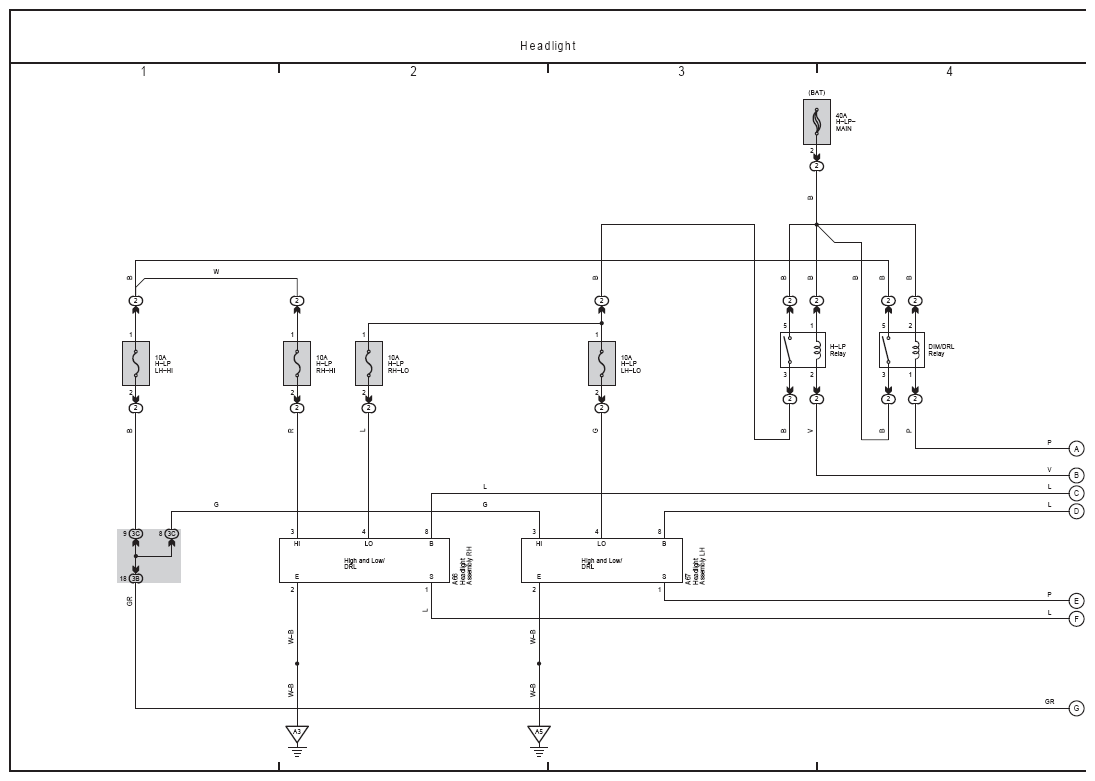

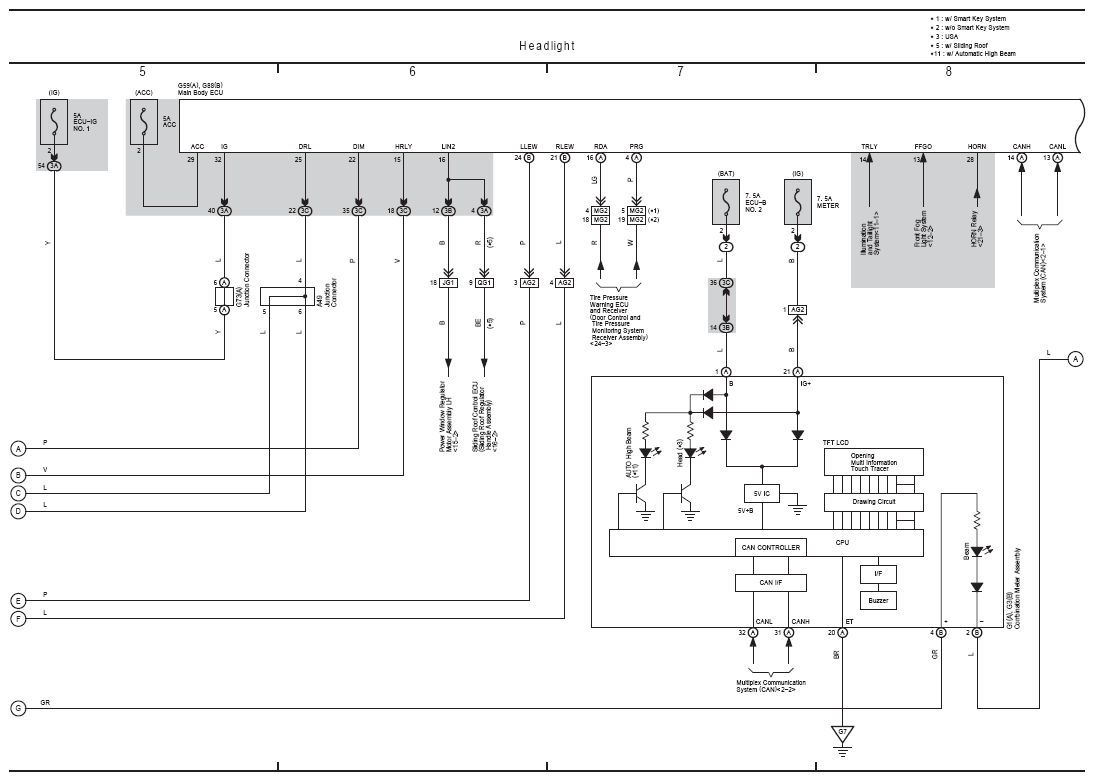

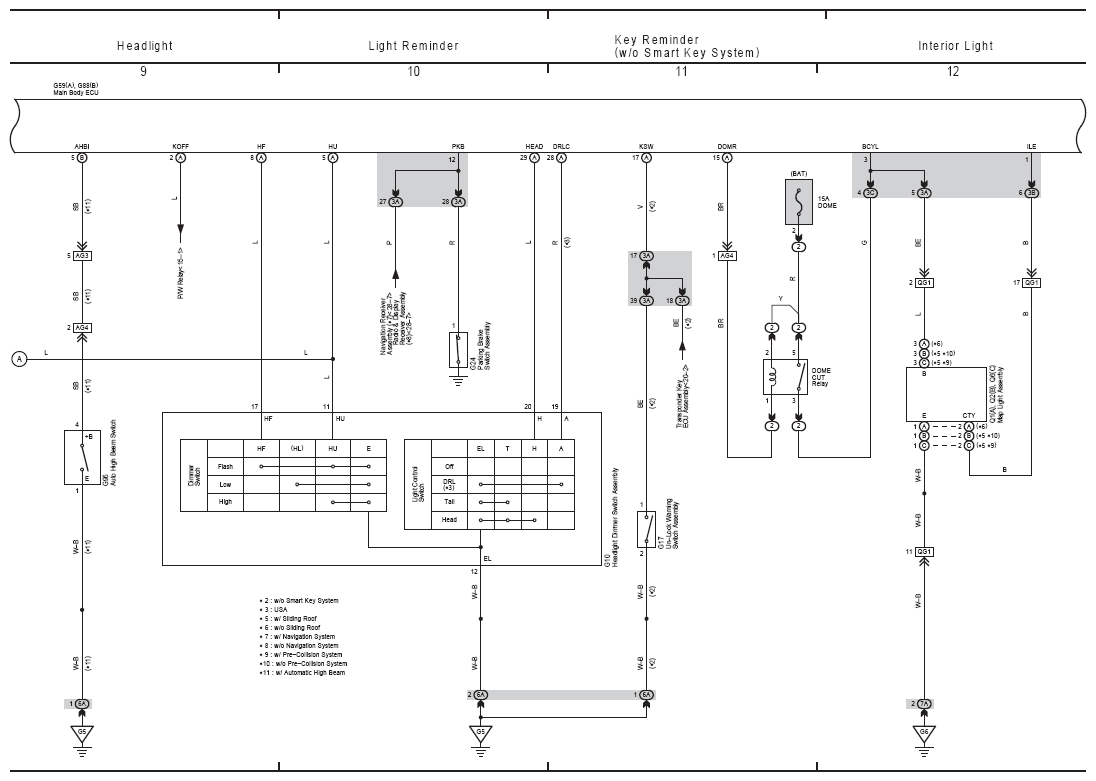

Headlight, Light Reminder, Key Reminder (W/O Smart Key System), Interior Light, Back Door Opener (W/O Smart Key System), Option Connector (Remote Engine Start System)
Headlight, Light Reminder, Key Reminder (W/O Smart Key System), Interior Light, Back Door Opener (W/O Smart Key System), Option Connector (Remote Engine Start System)
