OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>

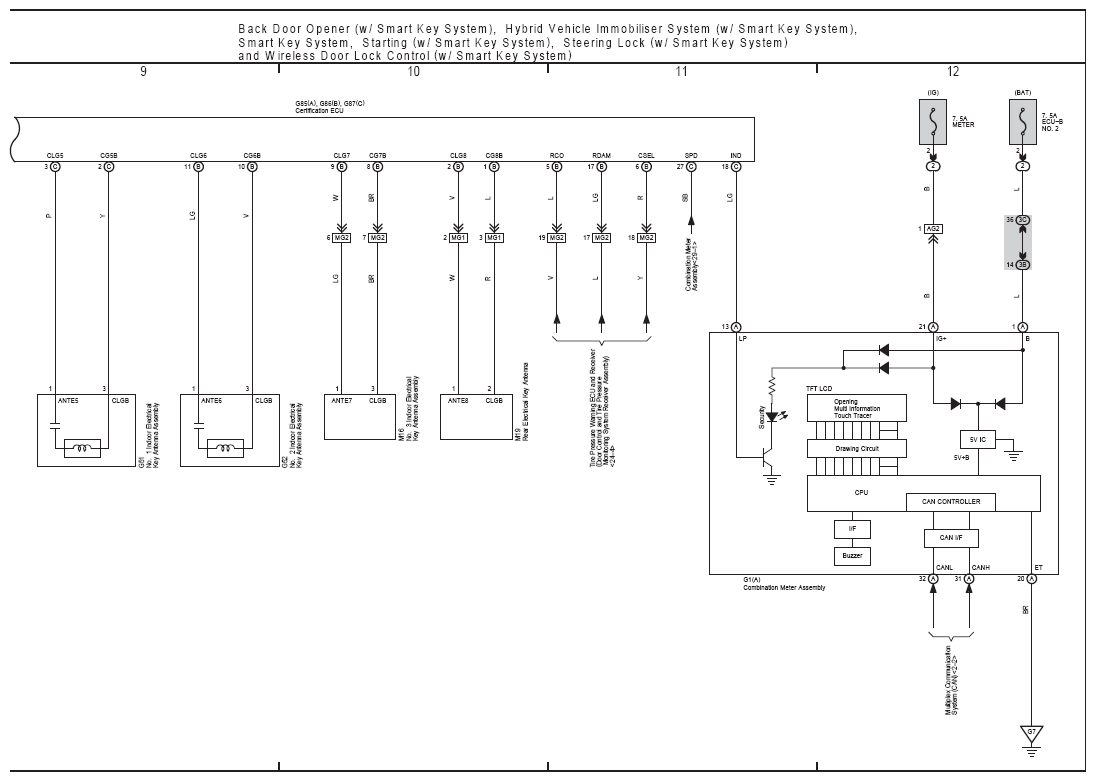

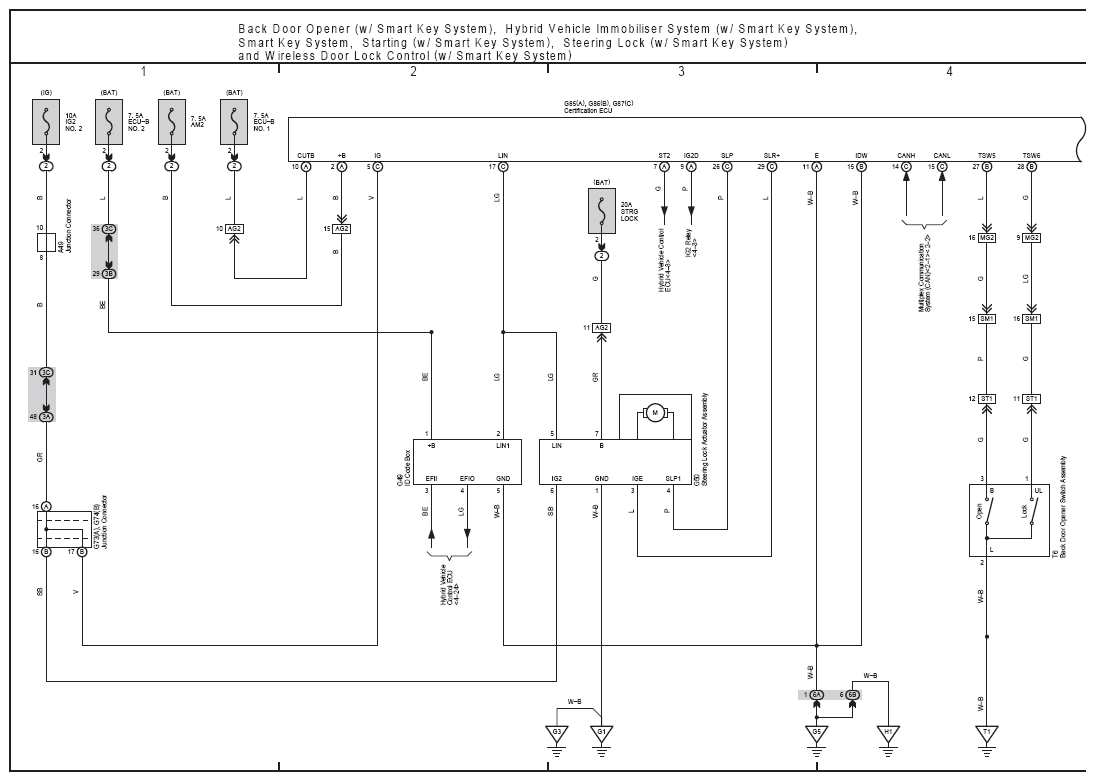

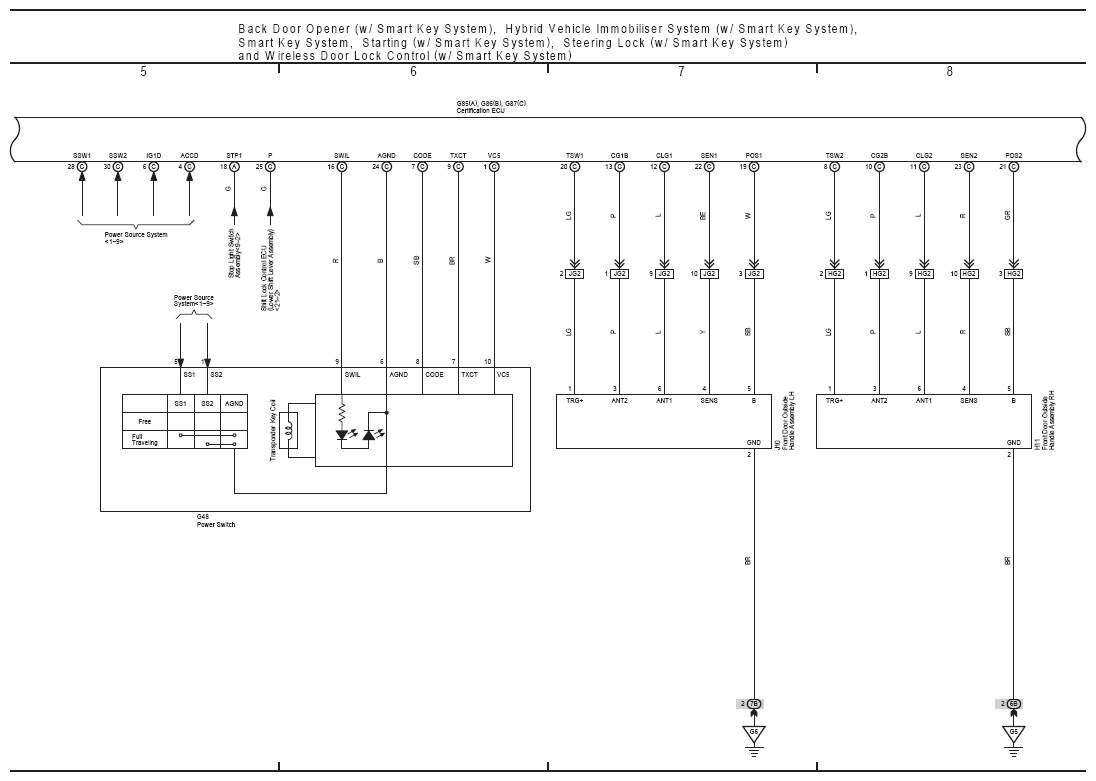

Back Door Opener (W/Smart Key System), Hybrid Vehicle Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System) And Wireless Door Lock Control (W/Smart Key System)
Back Door Opener (W/Smart Key System), Hybrid Vehicle Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System) And Wireless Door Lock Control (W/Smart Key System)
