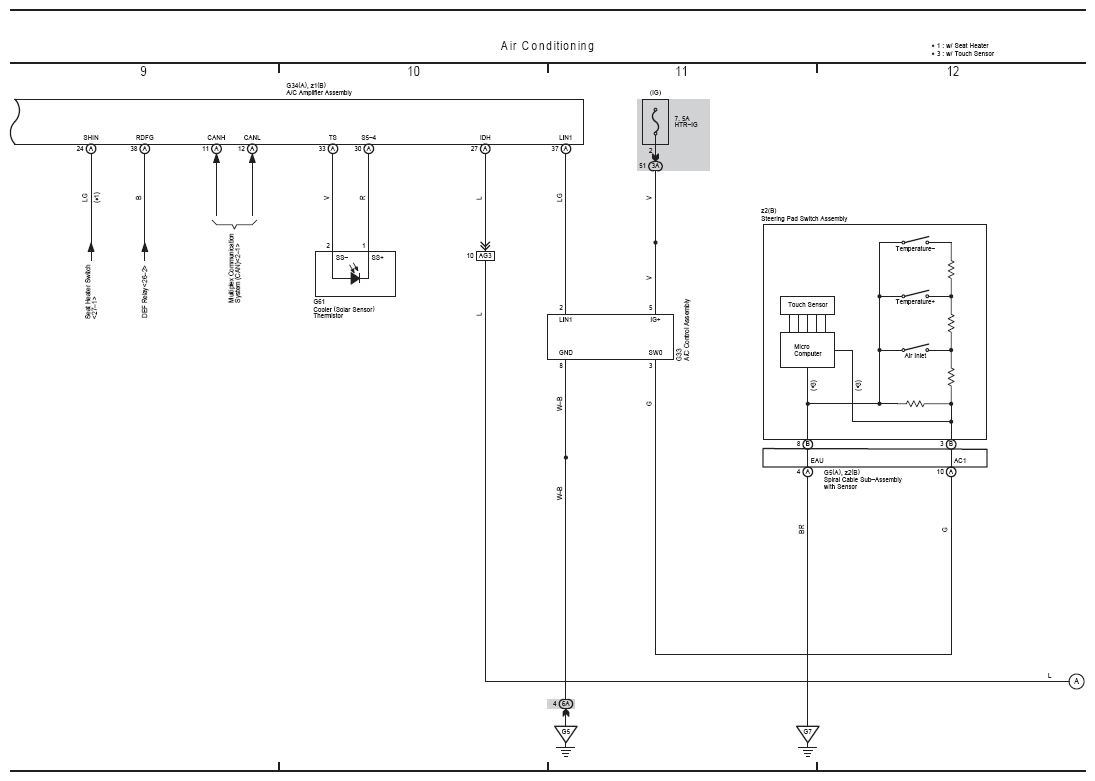

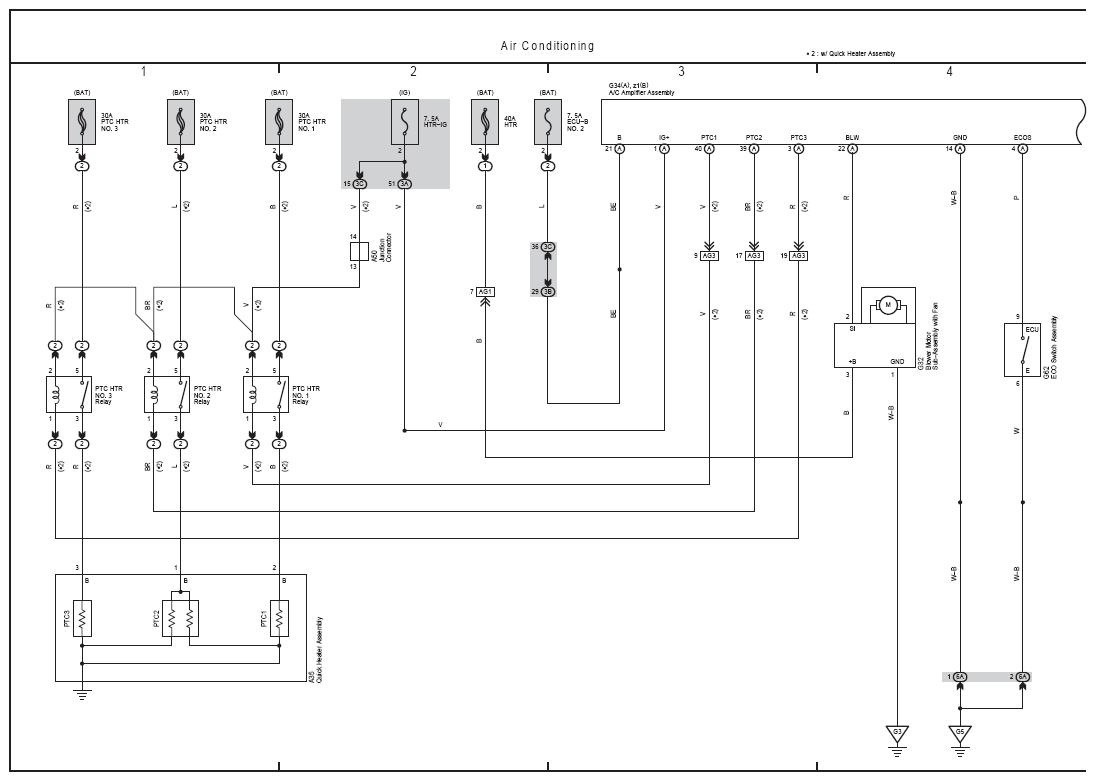

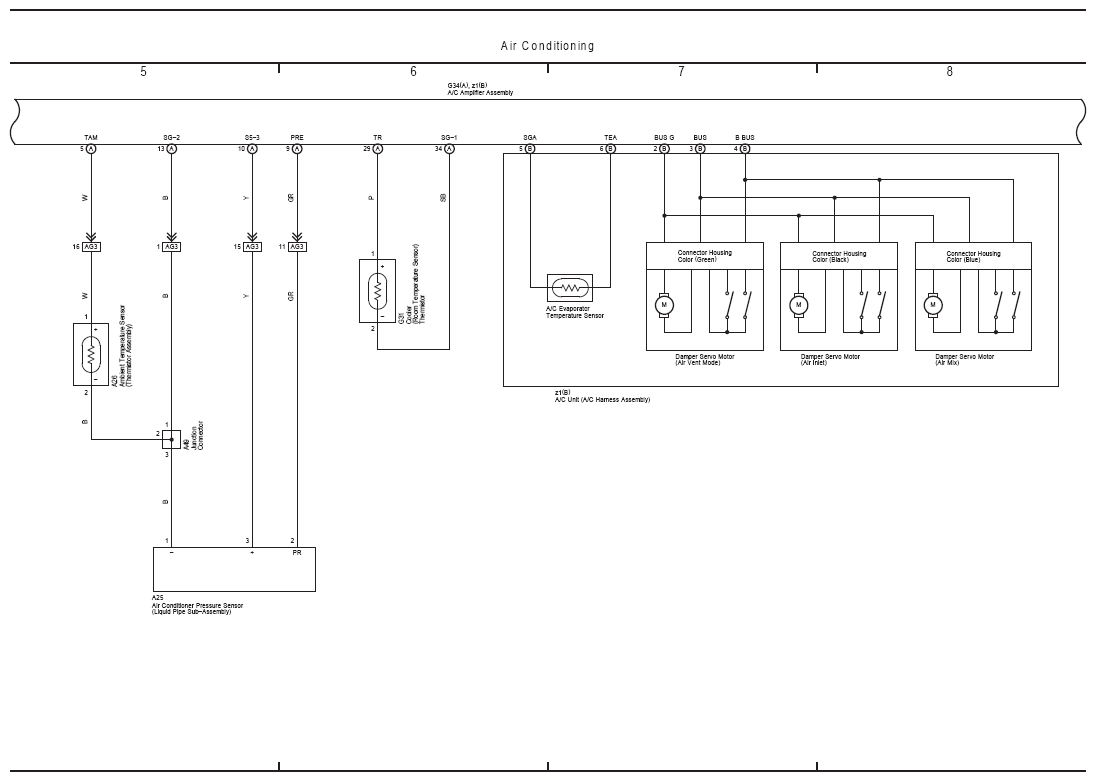

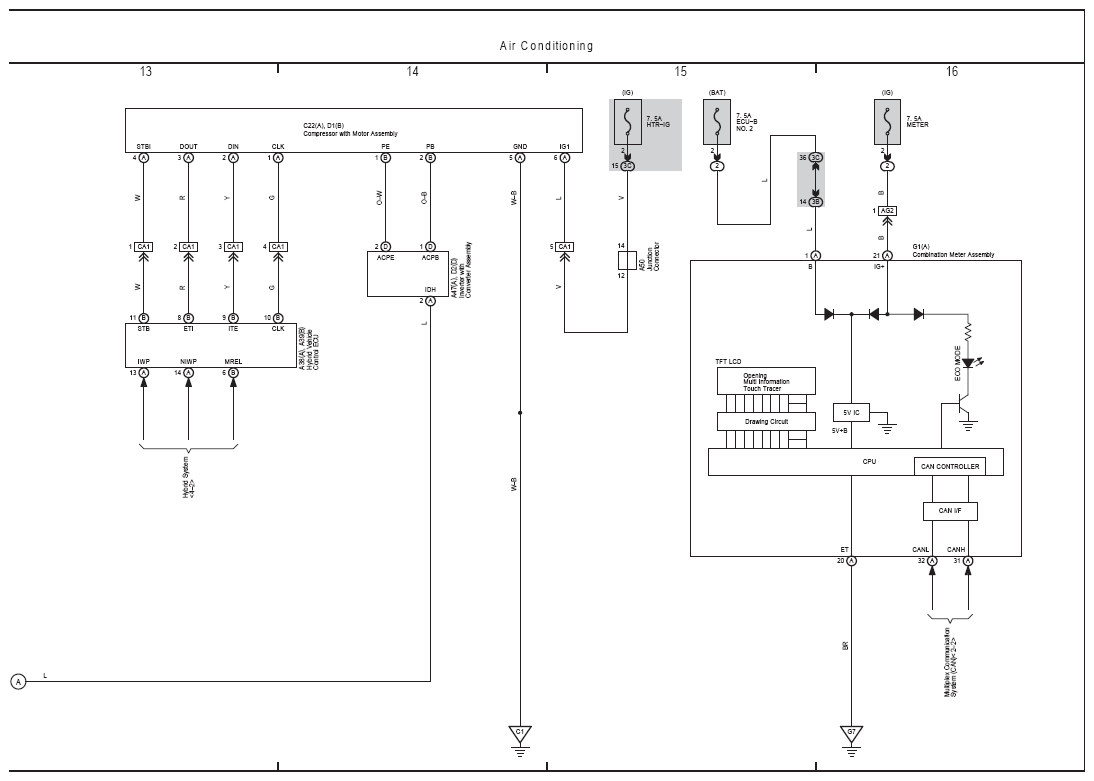

Home >> Toyota >> 2017 >> Prius C One >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Air Conditioning
