OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
ABS, Brake Assist, Hill-Start Assist Control, TRAC And VSC

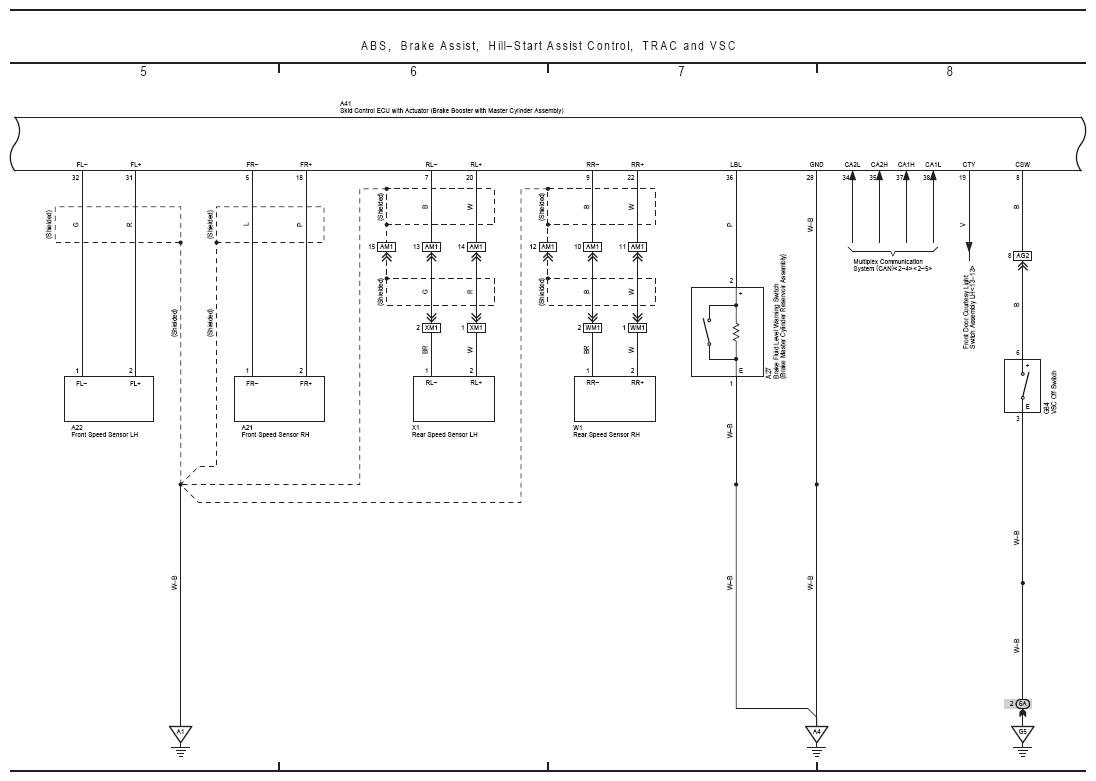

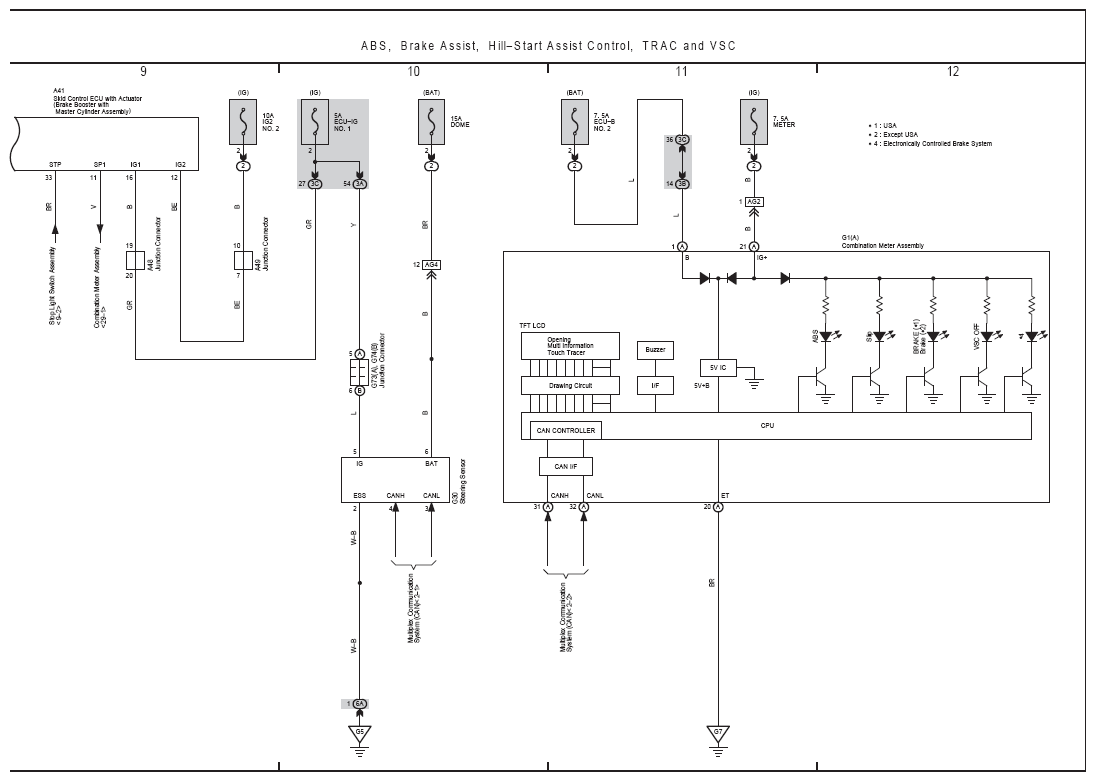

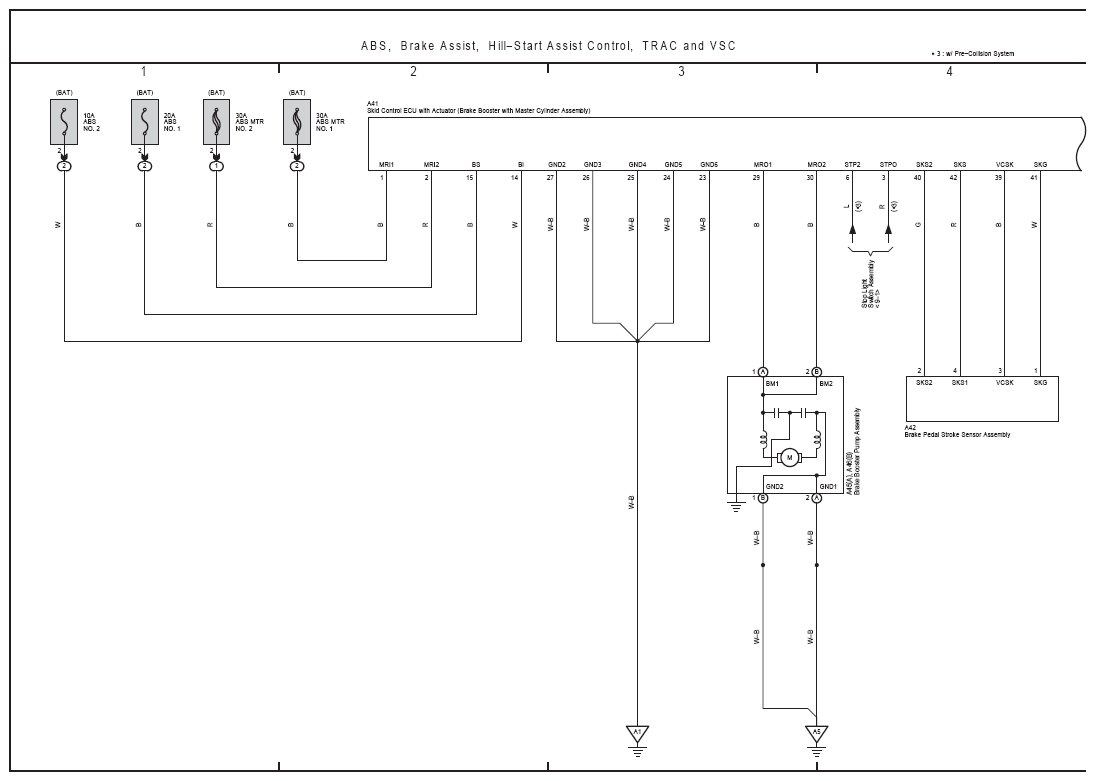

ABS, Brake Assist, Hill-Start Assist Control, TRAC And VSC
