Diagnosis Circuit [06/2015 - ]: Procedure

1. Check if a CAN communication DTC is output.

   Refer to DIAGNOSIS SYSTEM [06/2015 - 01/2018] , or refer to DIAGNOSIS SYSTEM [01/2018 - 11/2018] , or refer to DIAGNOSIS SYSTEM [11/2018 - ]

   Result

   Result	Proceed to
   DTCs are output	A
   DTC is not output	B

Result:

A

GO TO CAN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2015 - 11/2018]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2018 - ]

Result:

B

See step  2

1. Turn the power switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

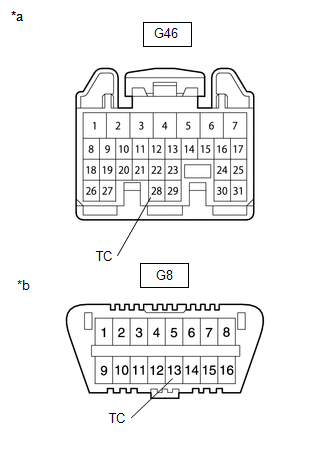

   *a	Front view of wire harness connector (to EV Control ECU)
   *b	Front view of DLC3

2. Disconnect the connector from the EV Control ECU.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G8-13 (TC) - G46-28 (TC)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G8-4 (CG) - Body ground	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of DLC3

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G46-28 (TC) - Body ground	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to EV Control ECU)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [06/2015 - 11/2018]  , or refer to  REMOVAL [11/2018 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR OR ECU
