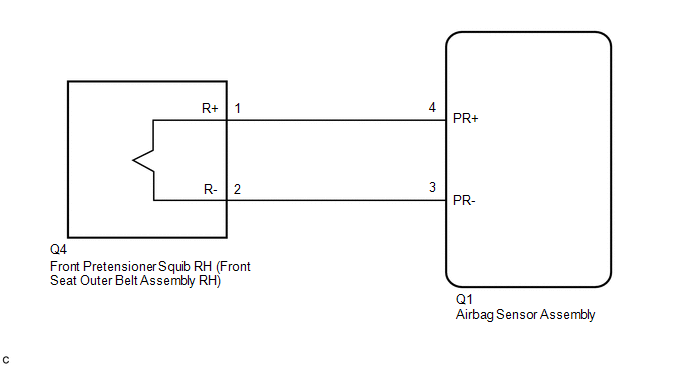

DTC B1901-73: Open in Front Pretensioner Squib RH Circuit [06/2015 - ]: Wiring Diagram

GTY597308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
