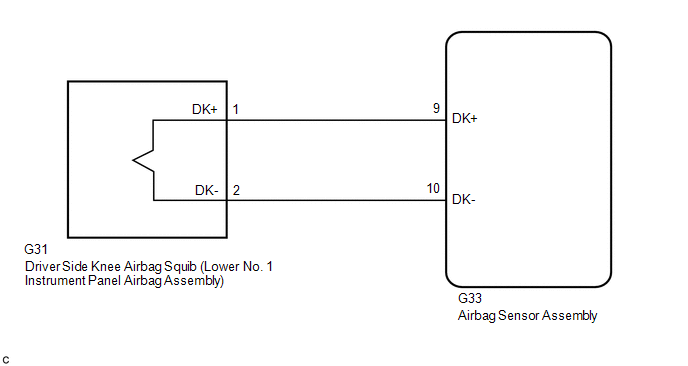

DTC B1861-64: Open in Driver Side Knee Airbag Squib Circuit [06/2015 - ]: Wiring Diagram

GTY580509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
