Home >> Toyota >> 2017 >> Mirai >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Overall Electrical Wiring Diagram >> Overall Electrical Wiring Diagram >> Mirror Heater, Remote Control Mirror

Mirror Heater, Remote Control Mirror

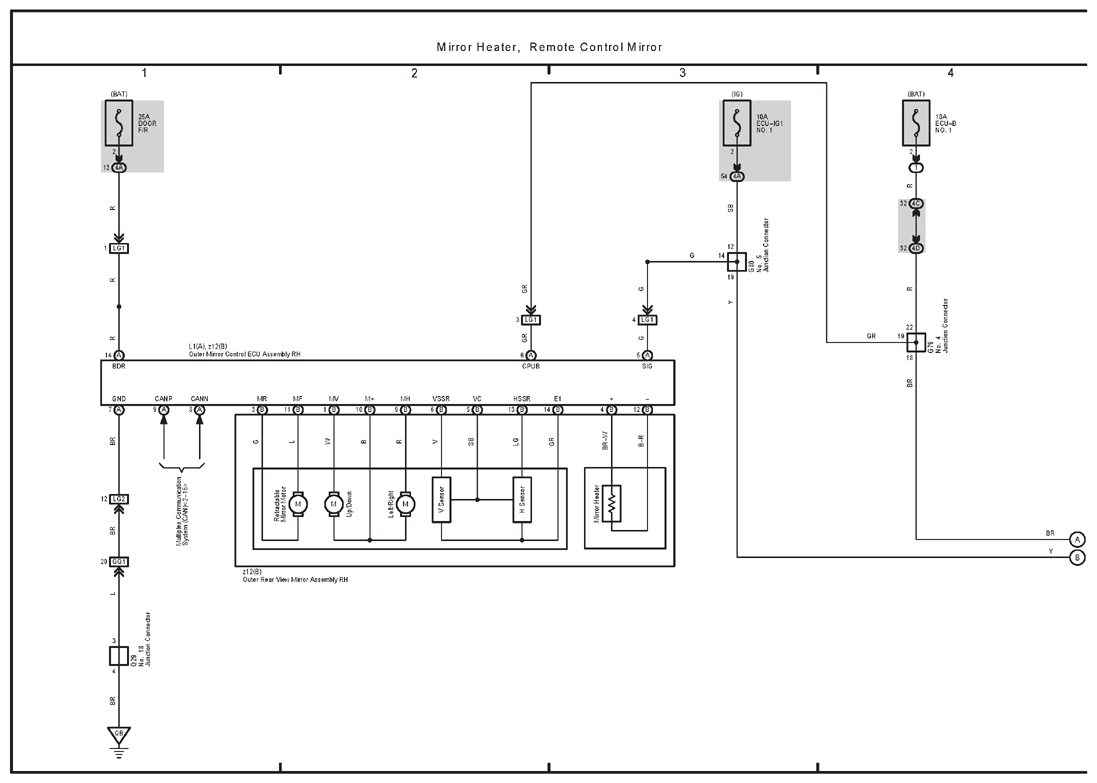

G12203392

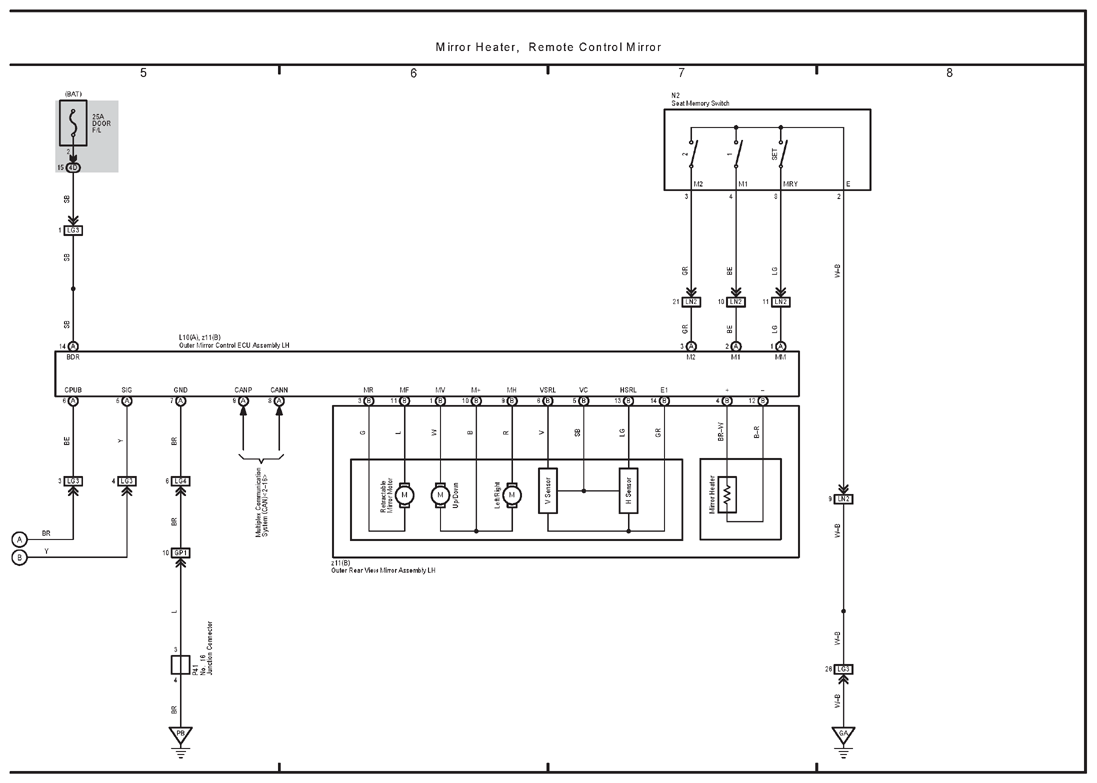

G12203393
