Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control

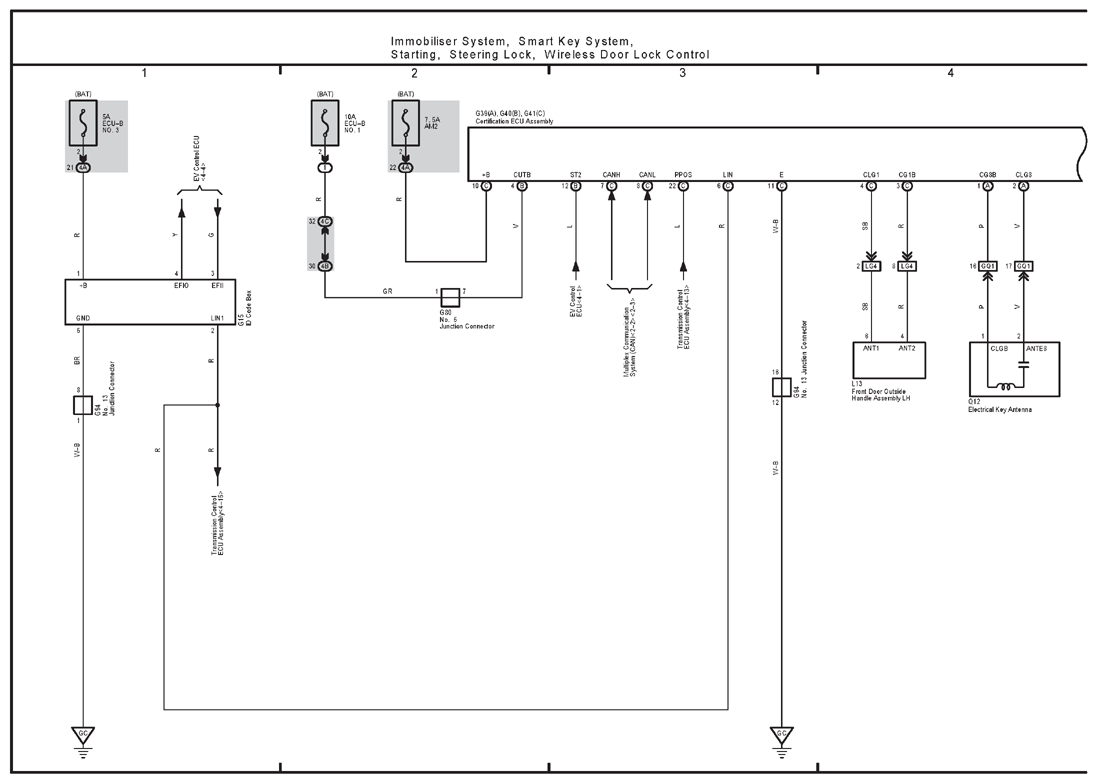

G12203404

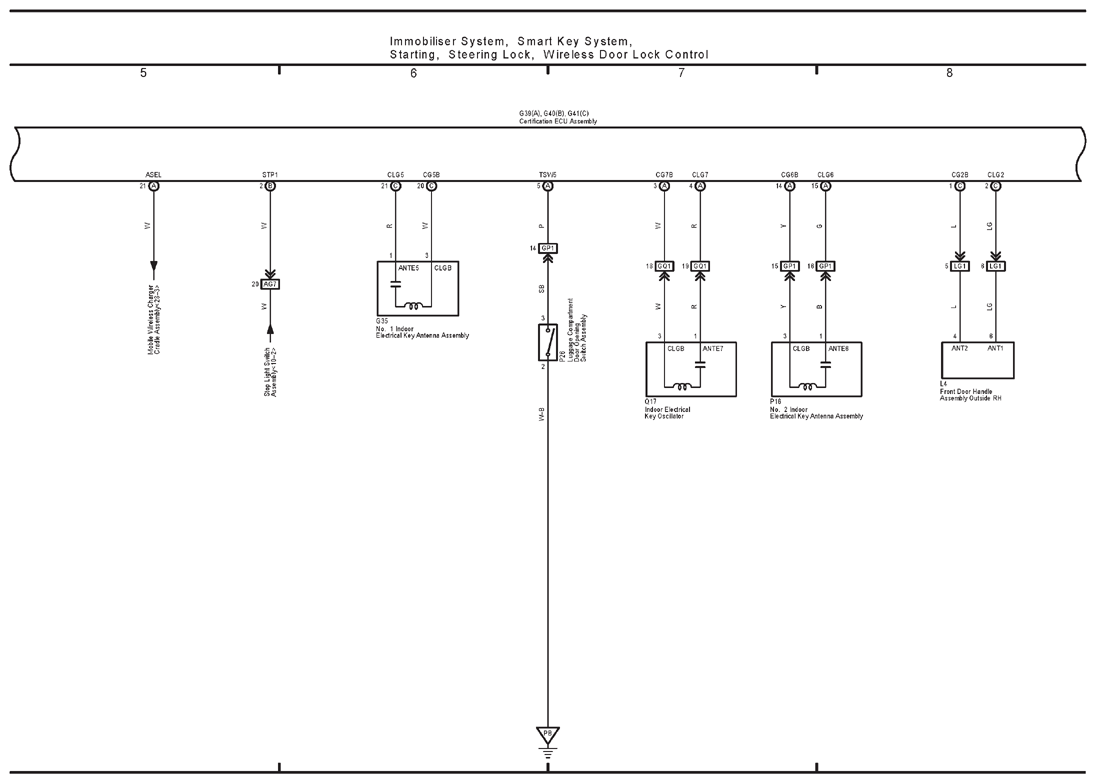

G12203405

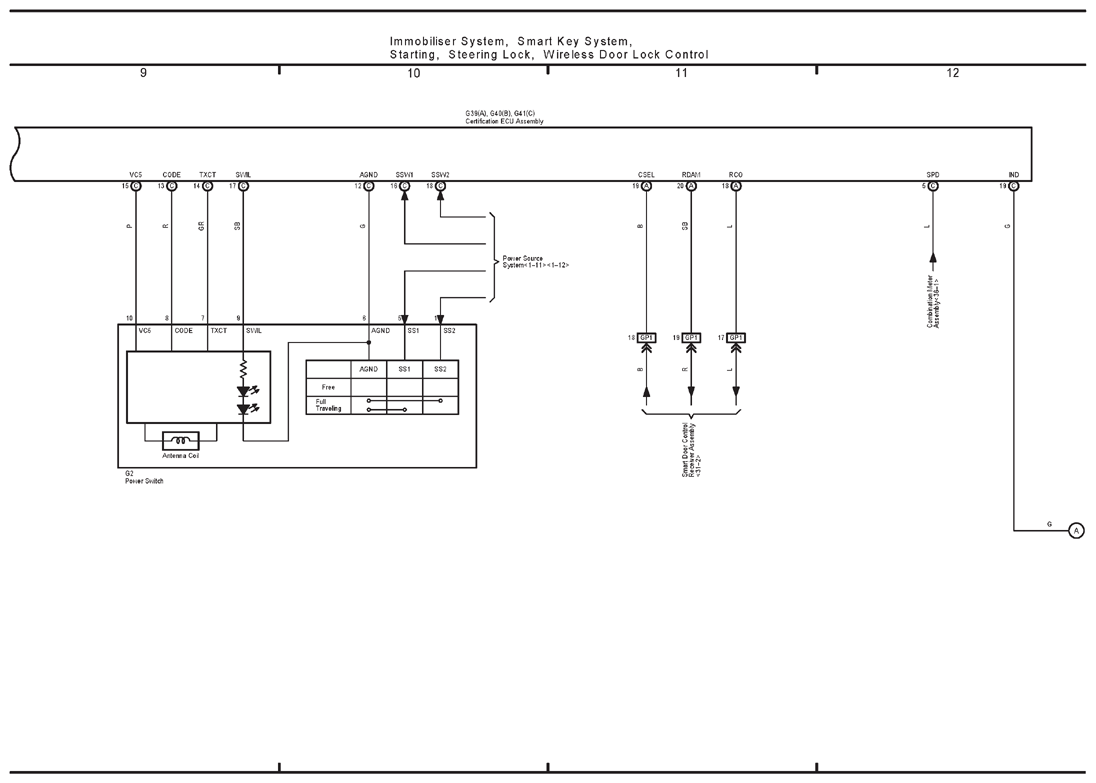

G12203406

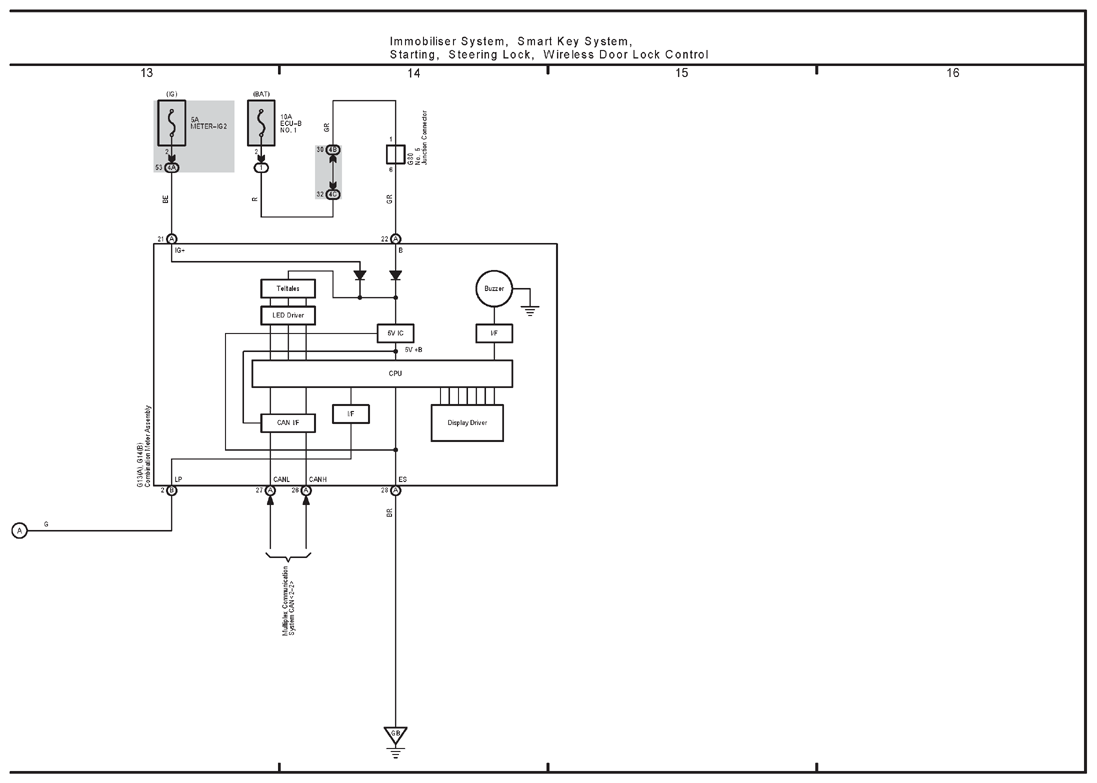

G12203407
