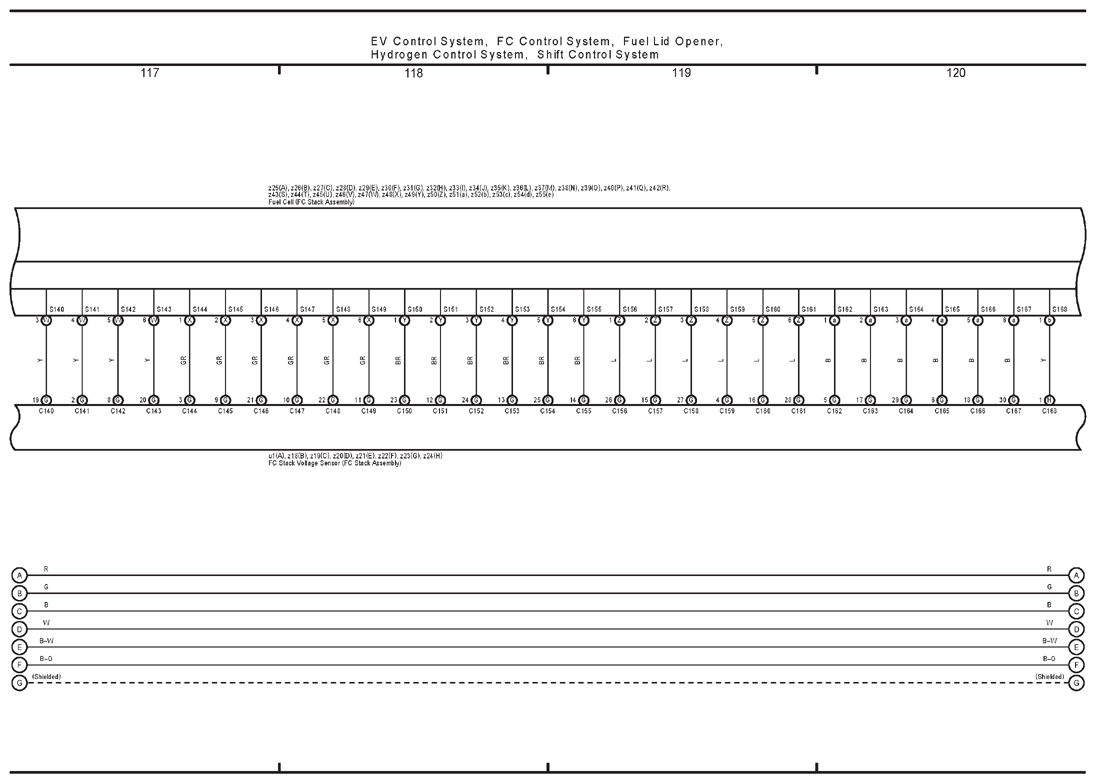

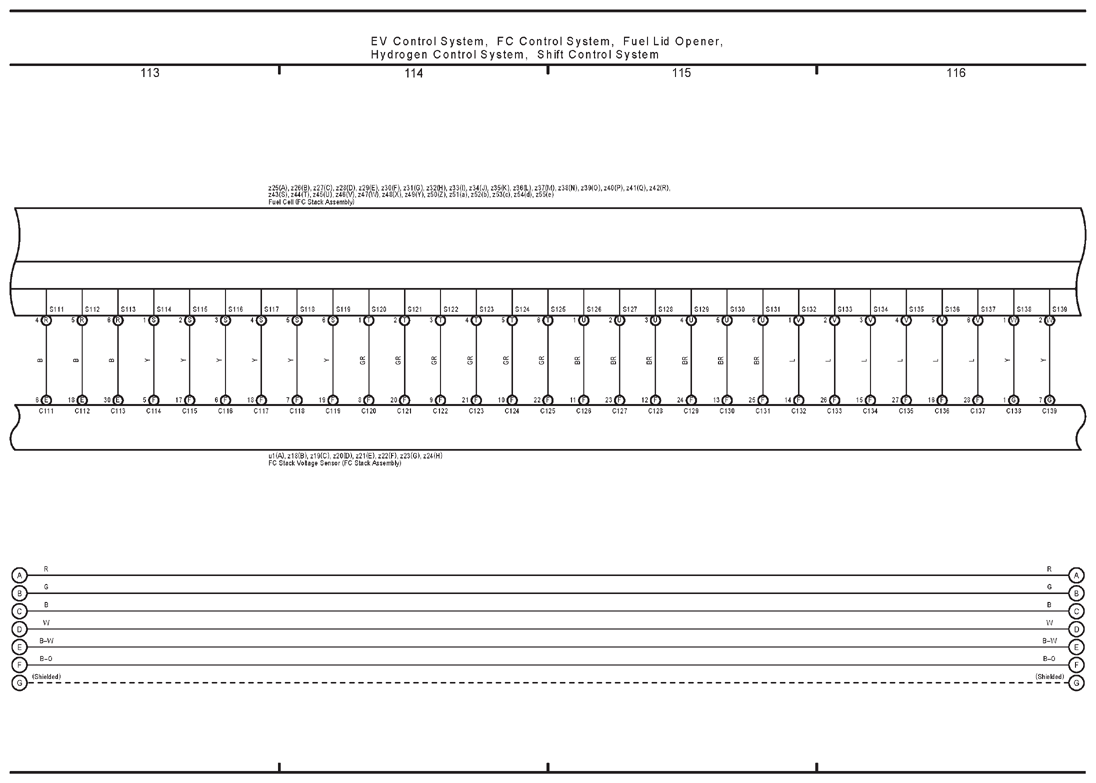

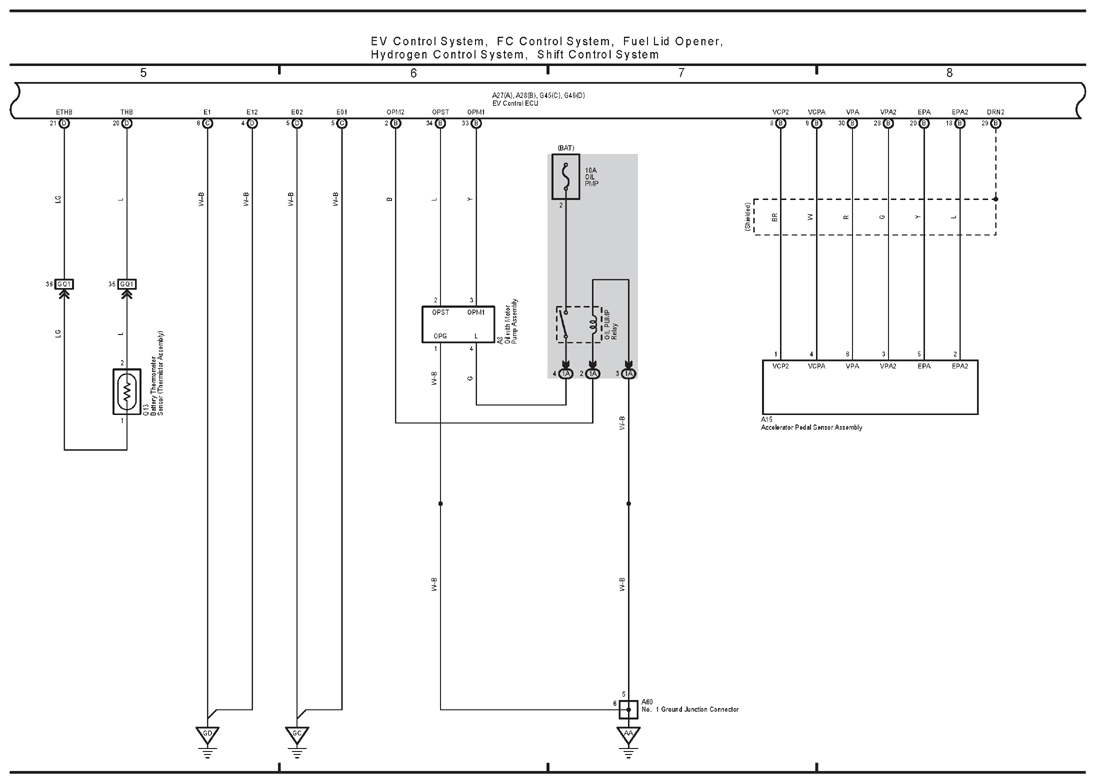

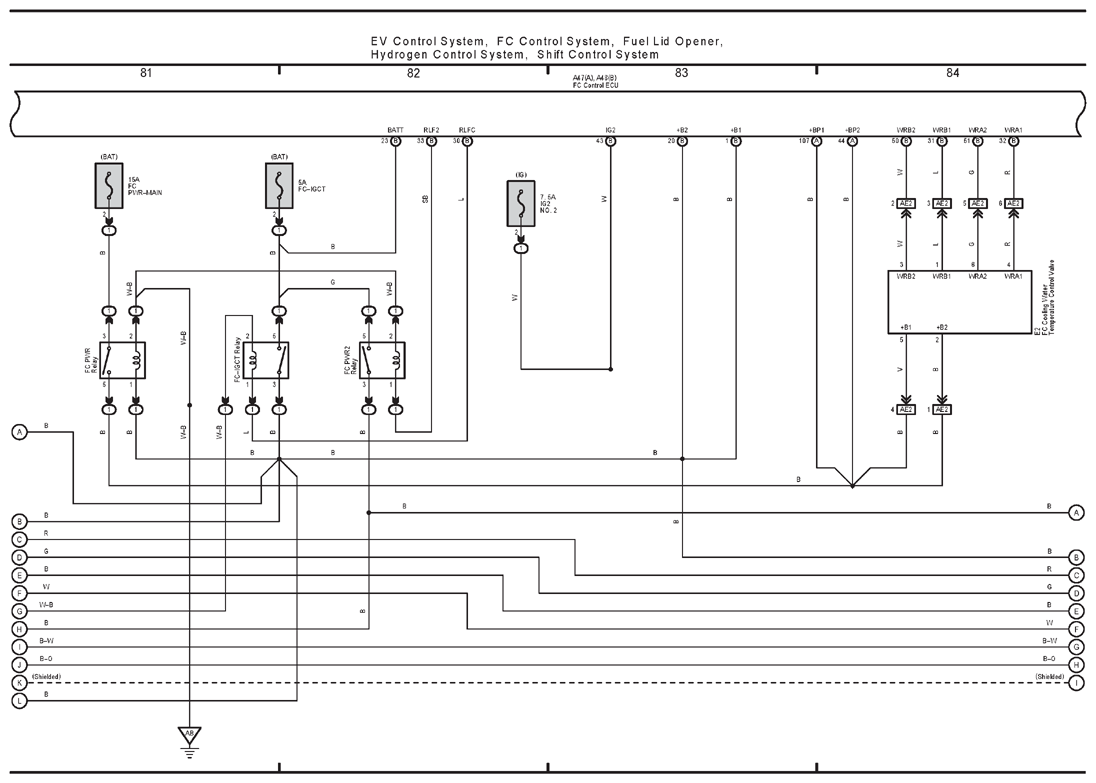

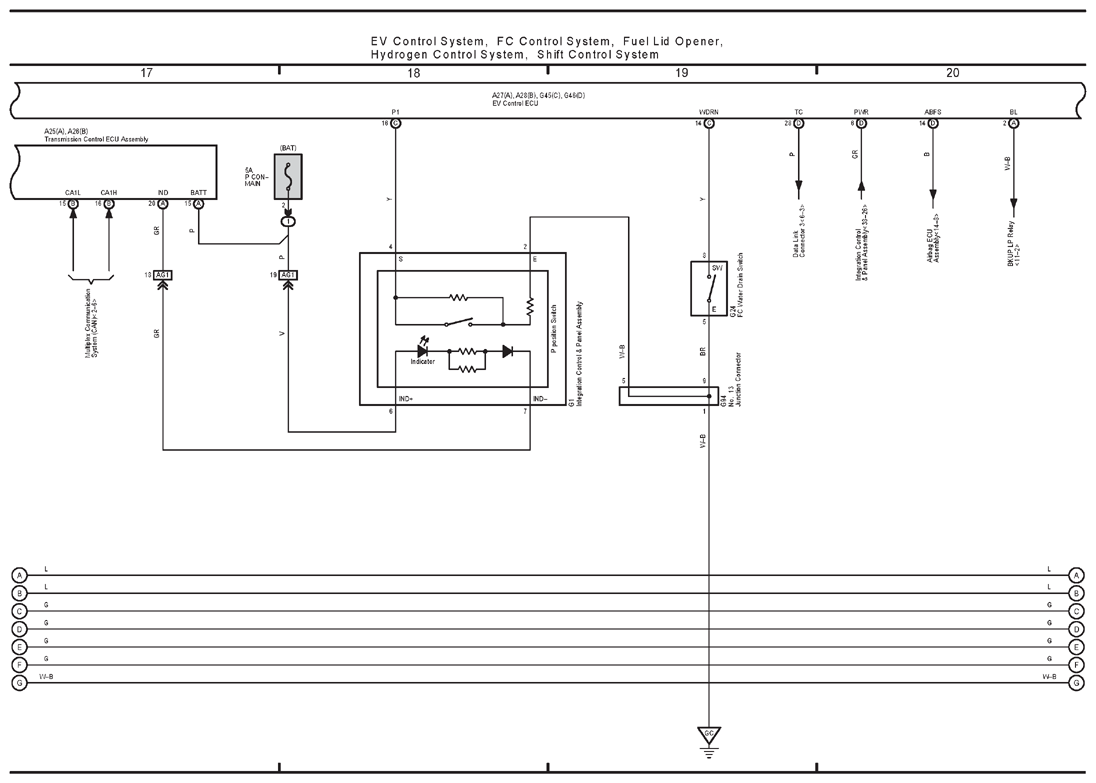

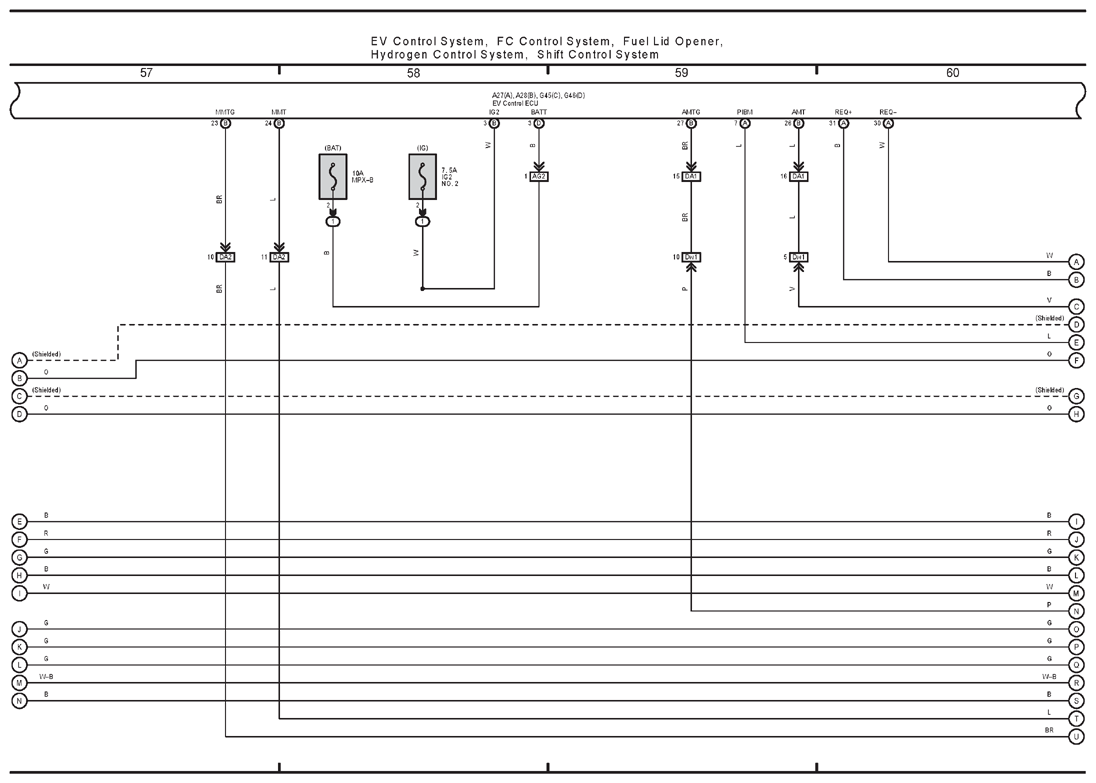

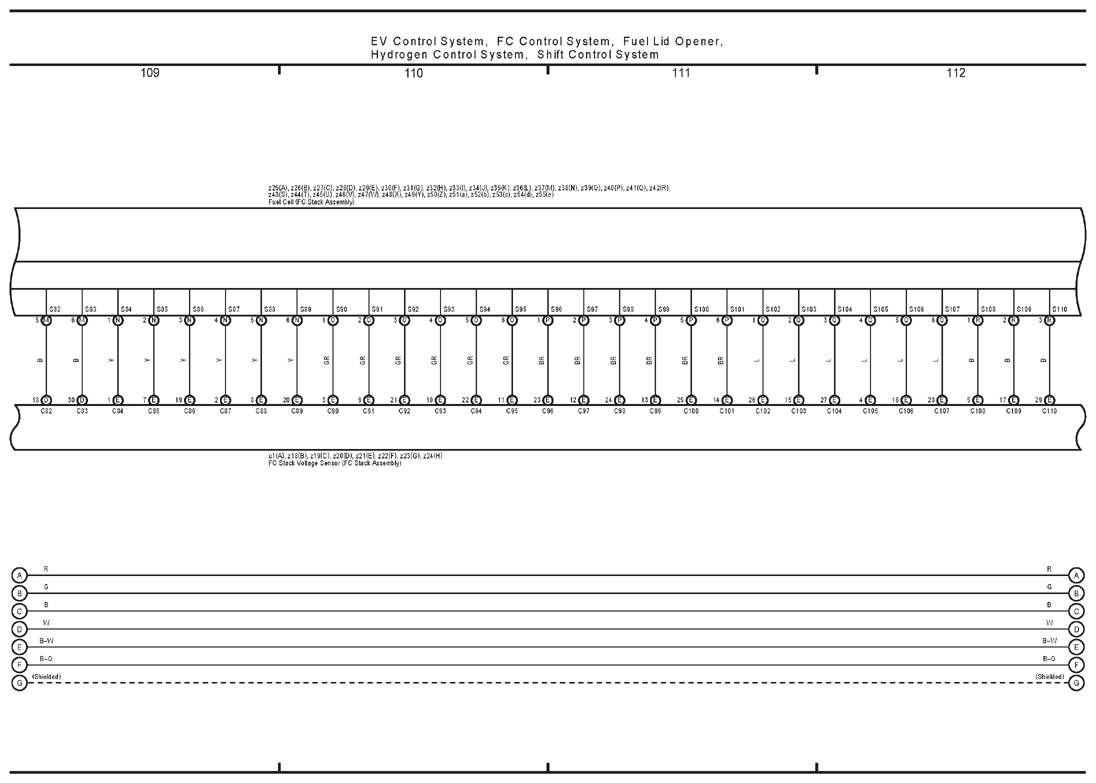

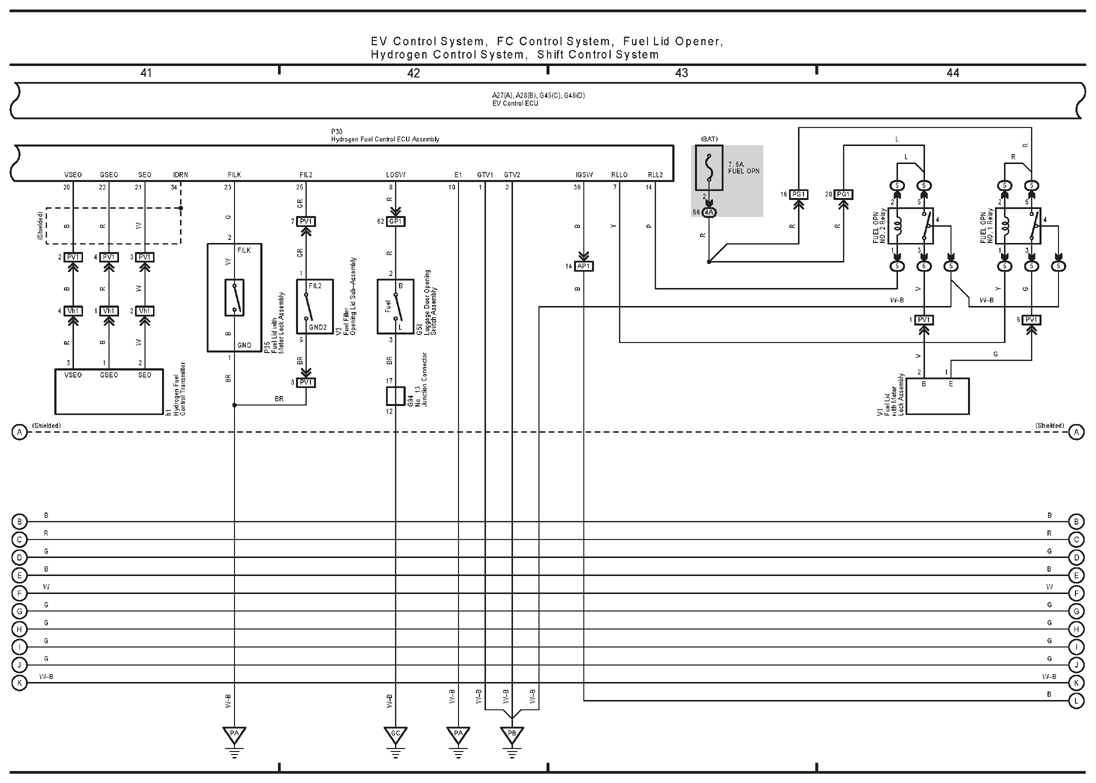

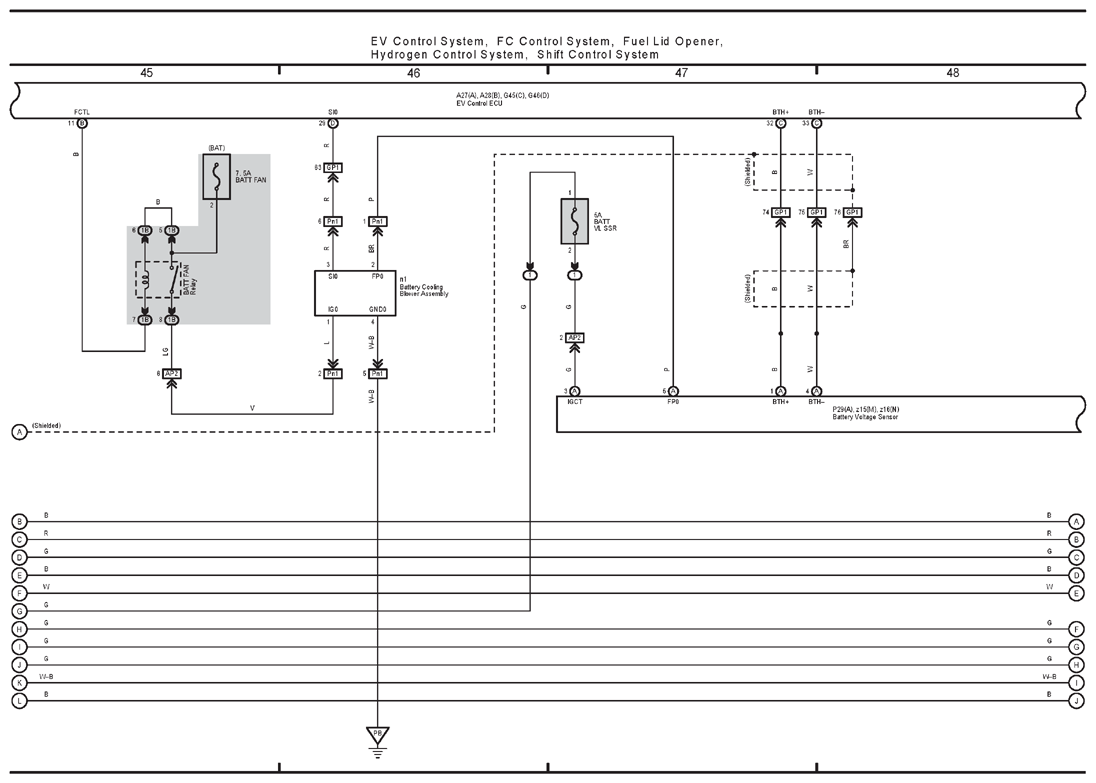

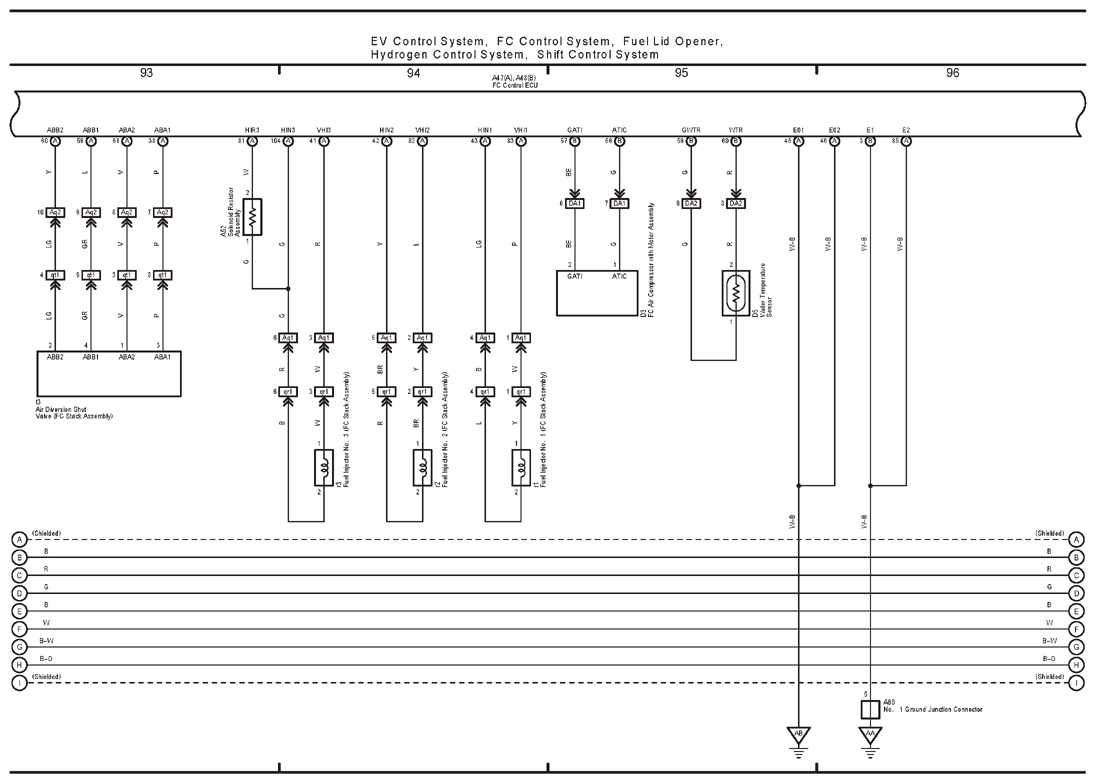

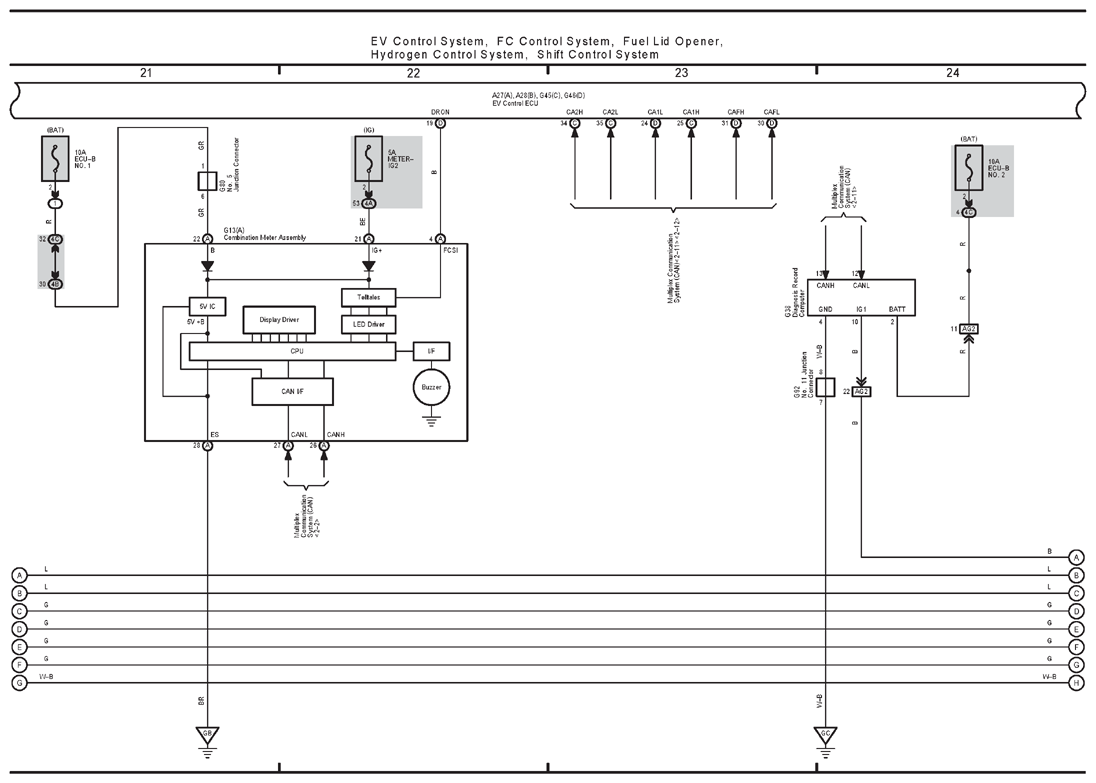

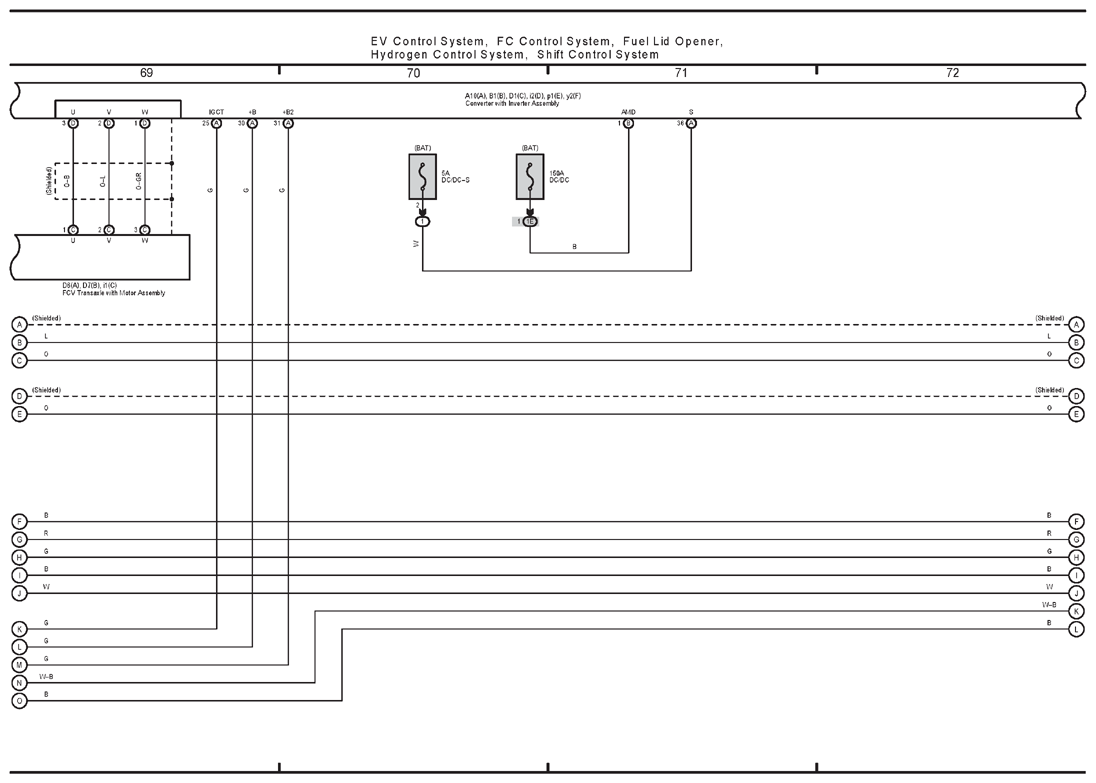

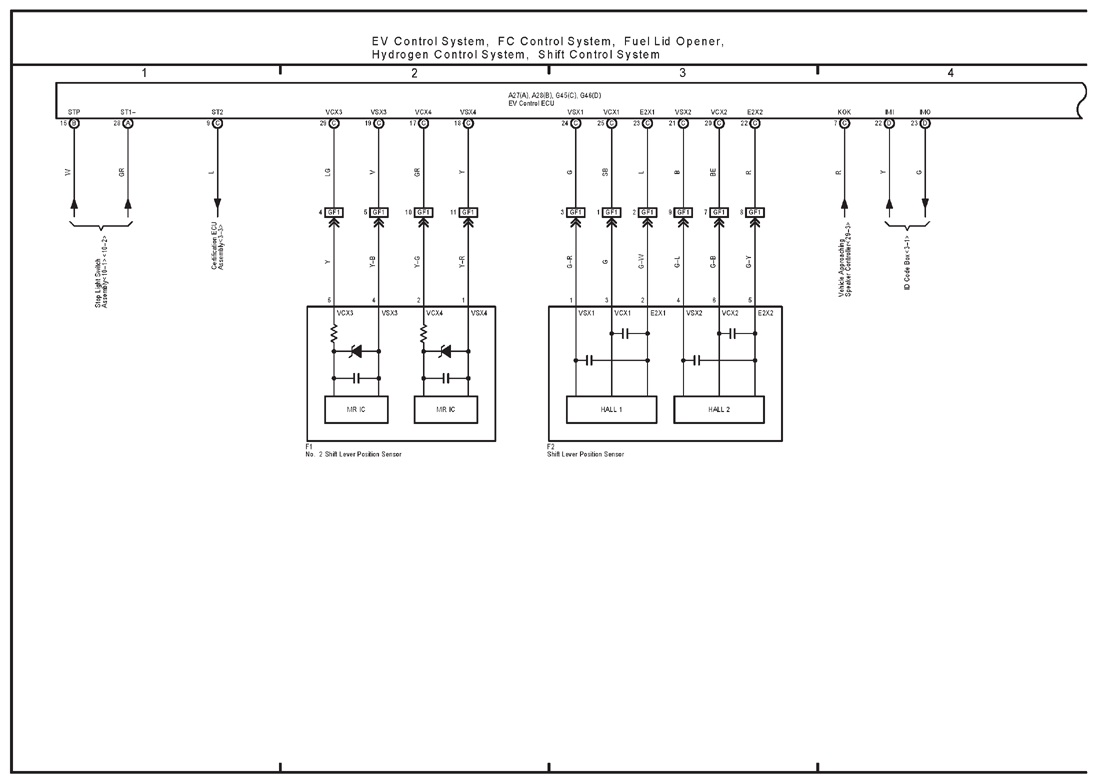

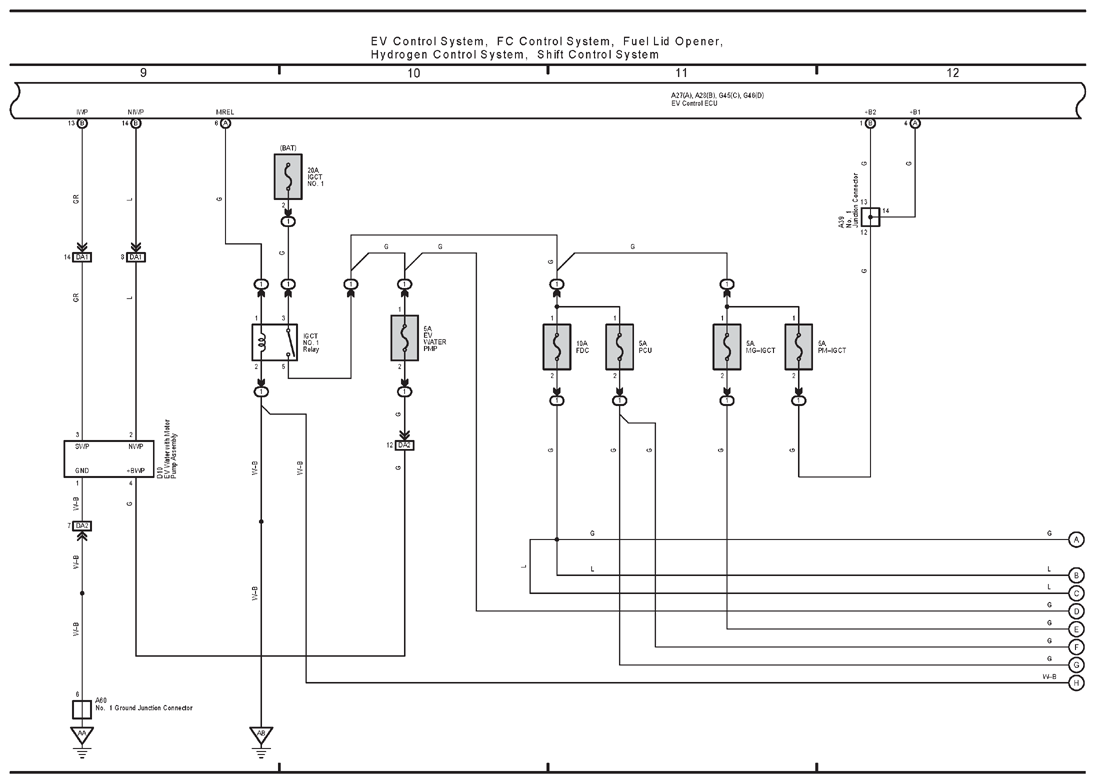

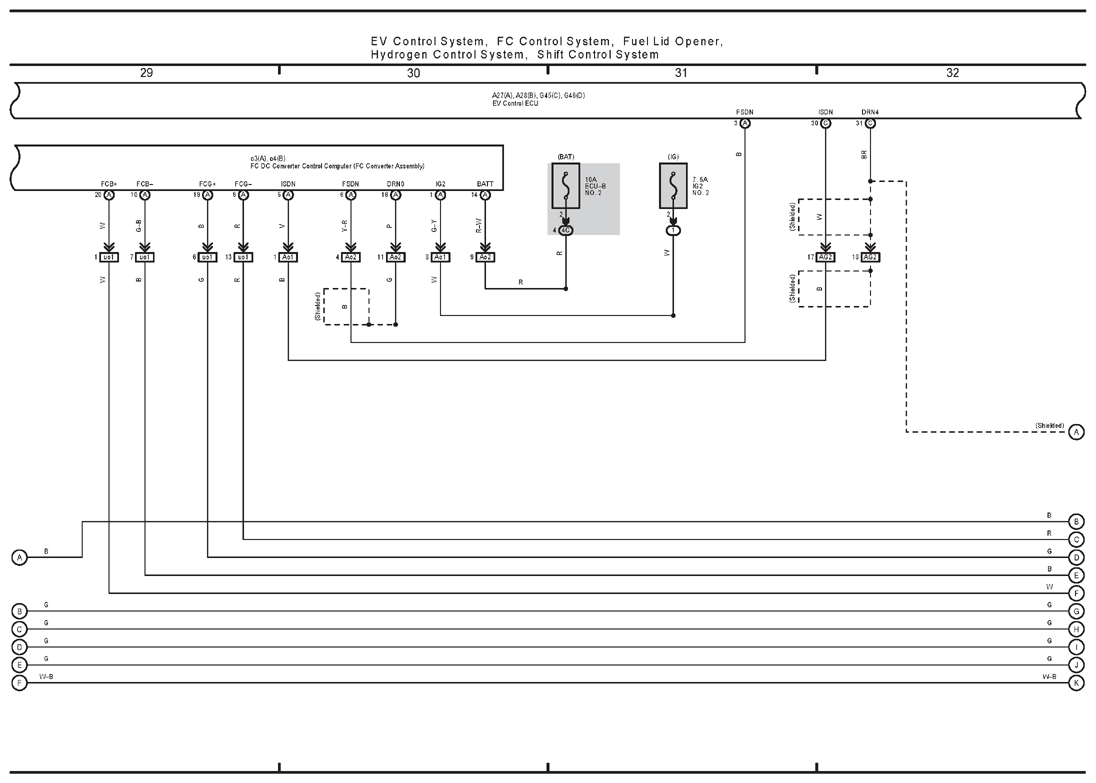

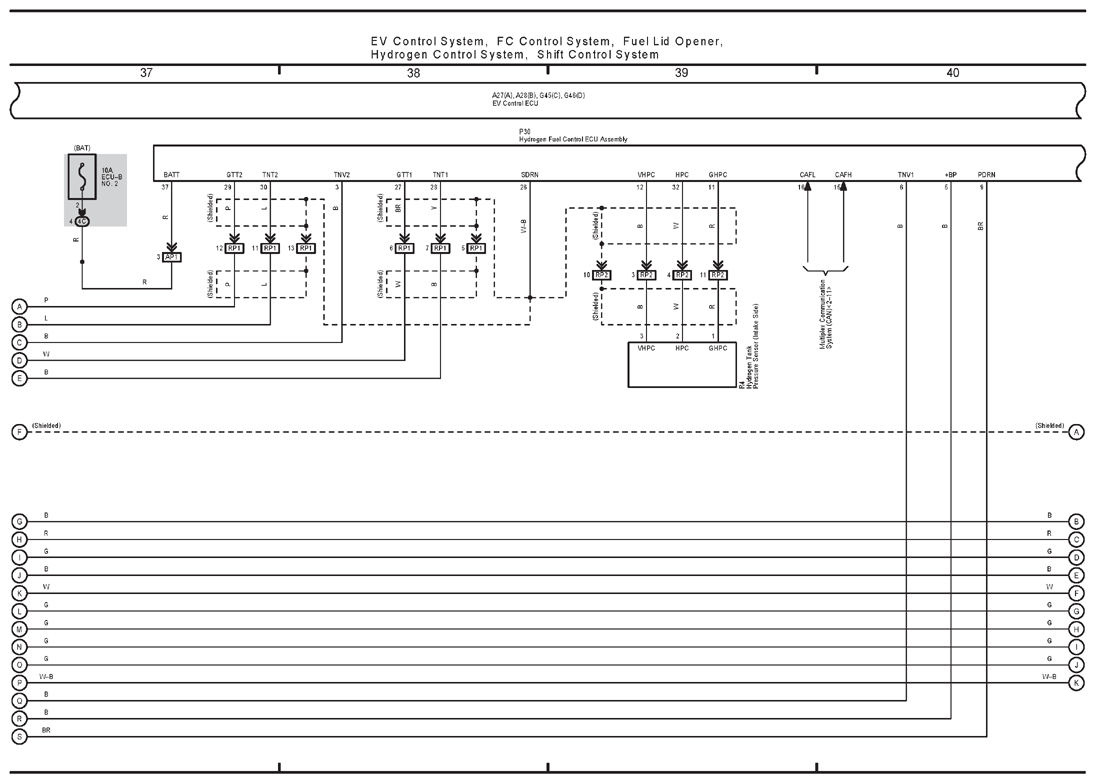

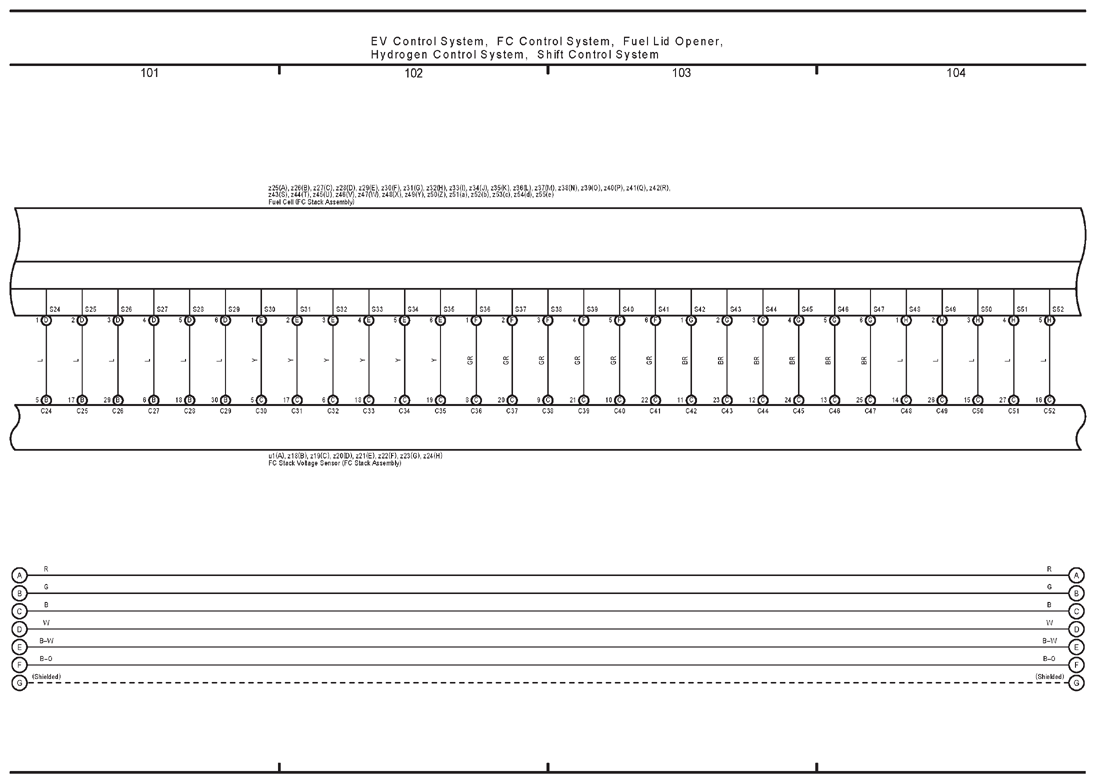

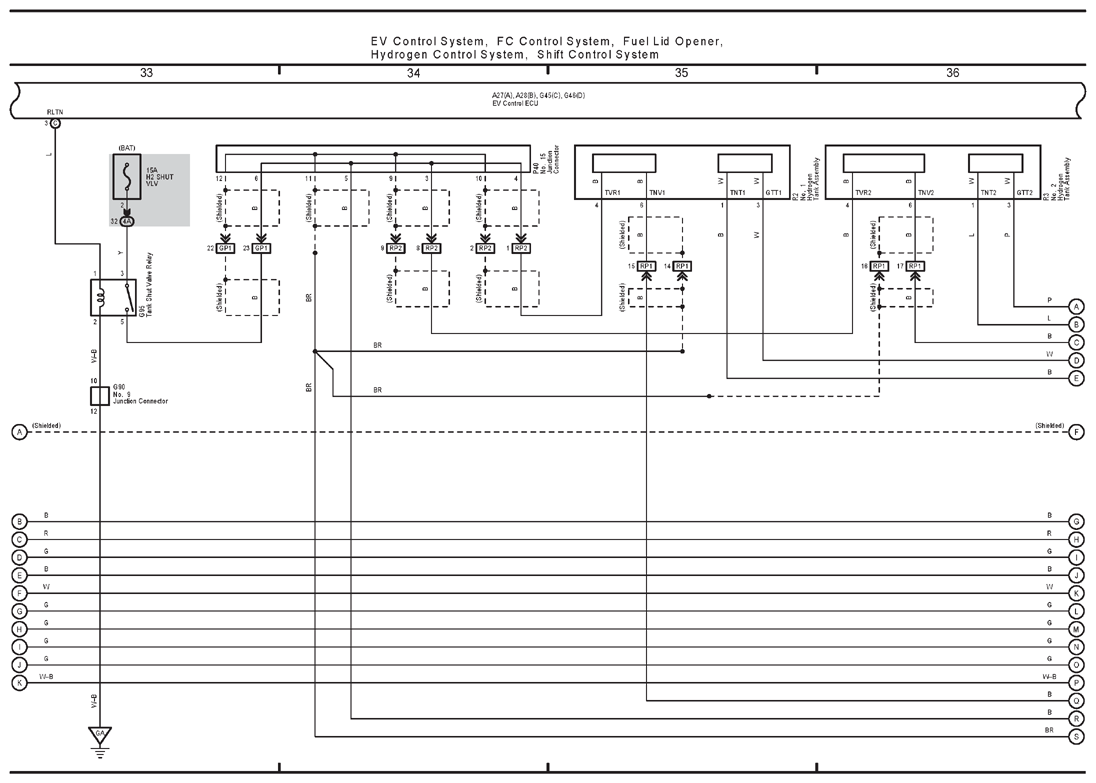

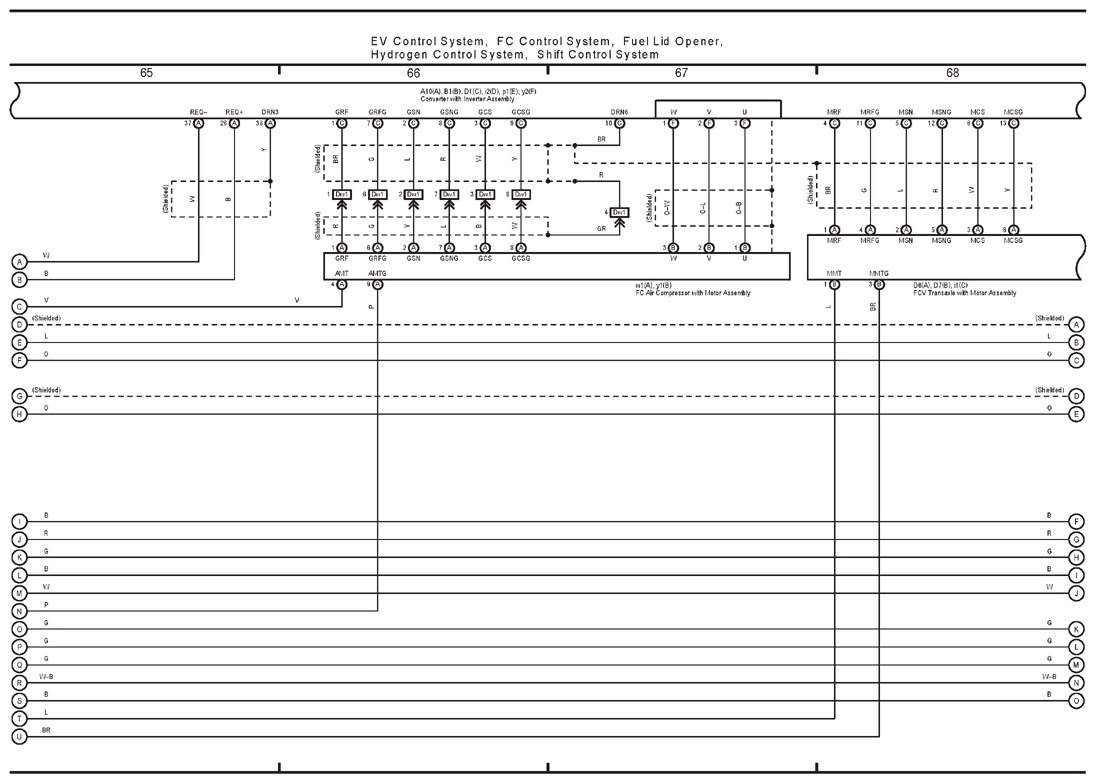

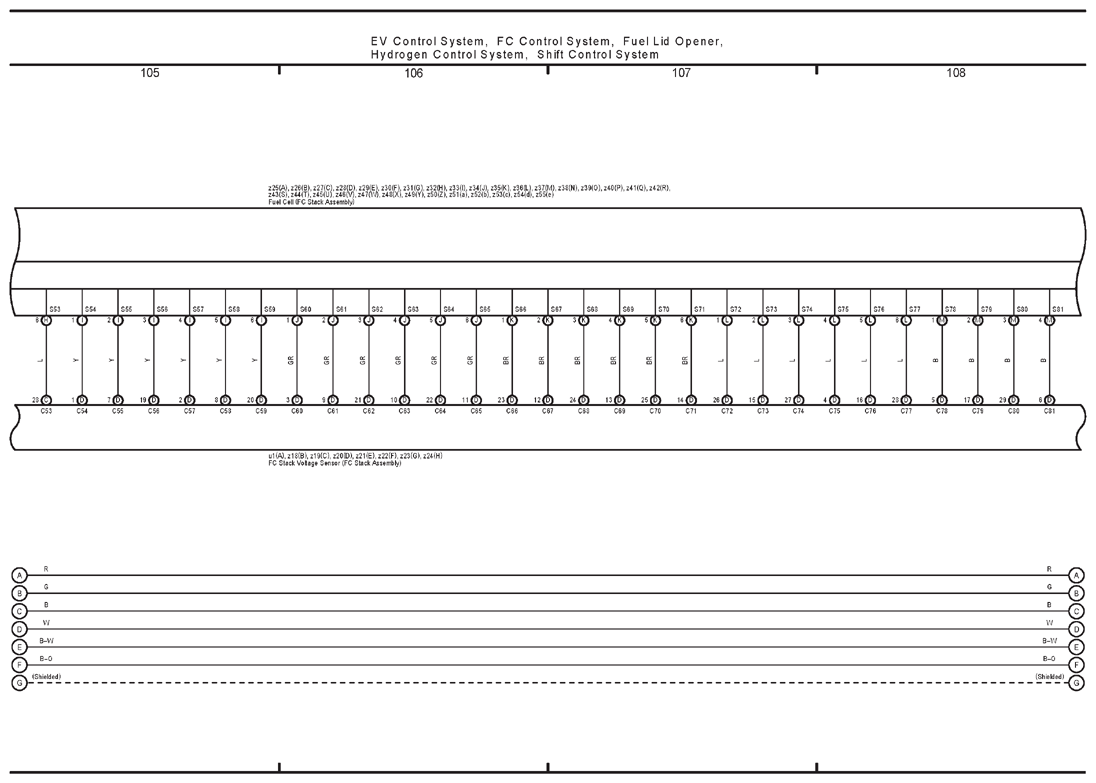

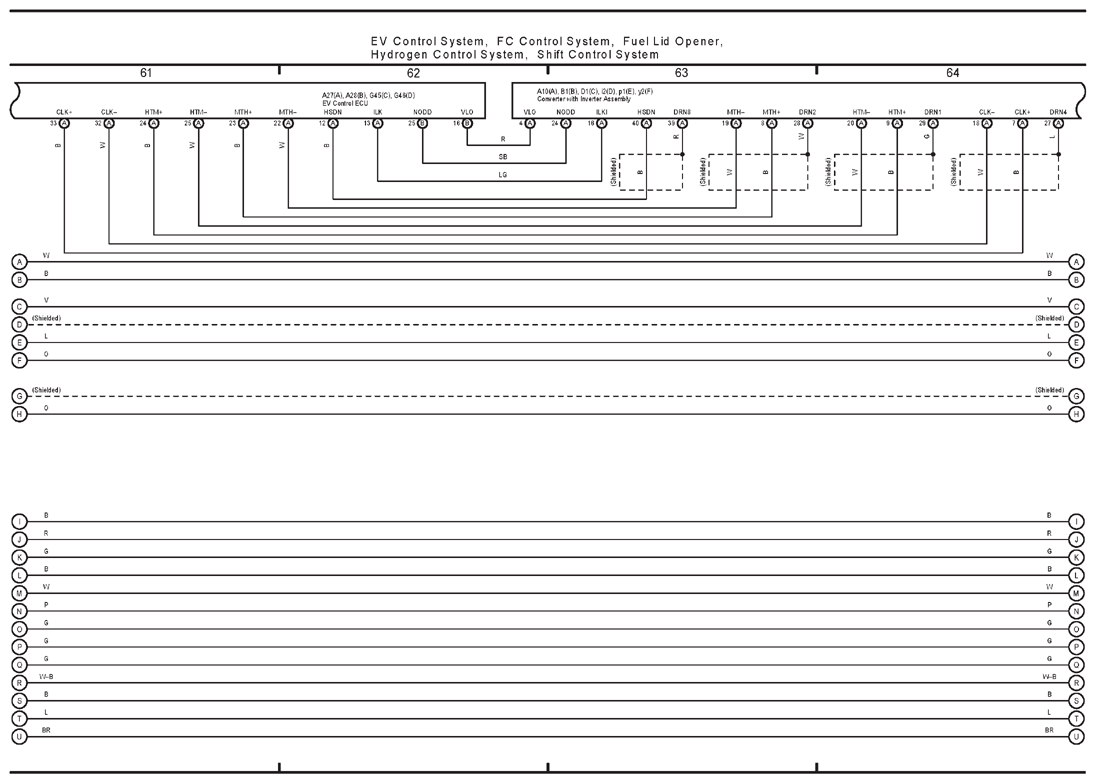

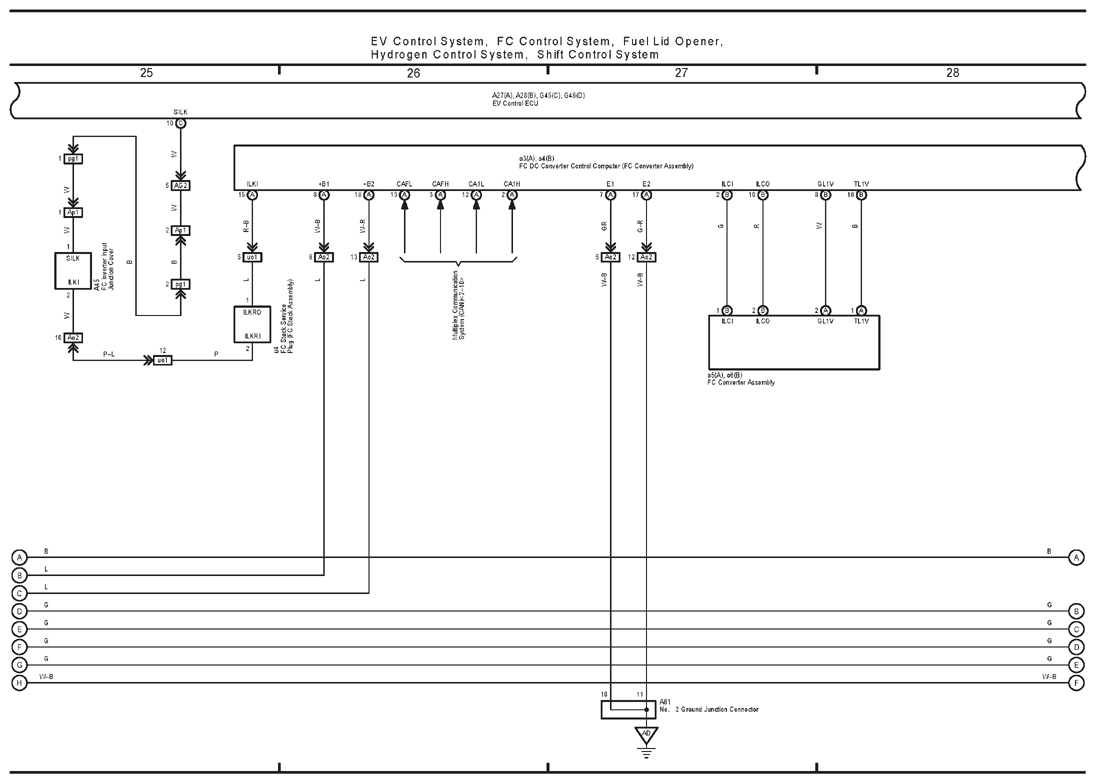

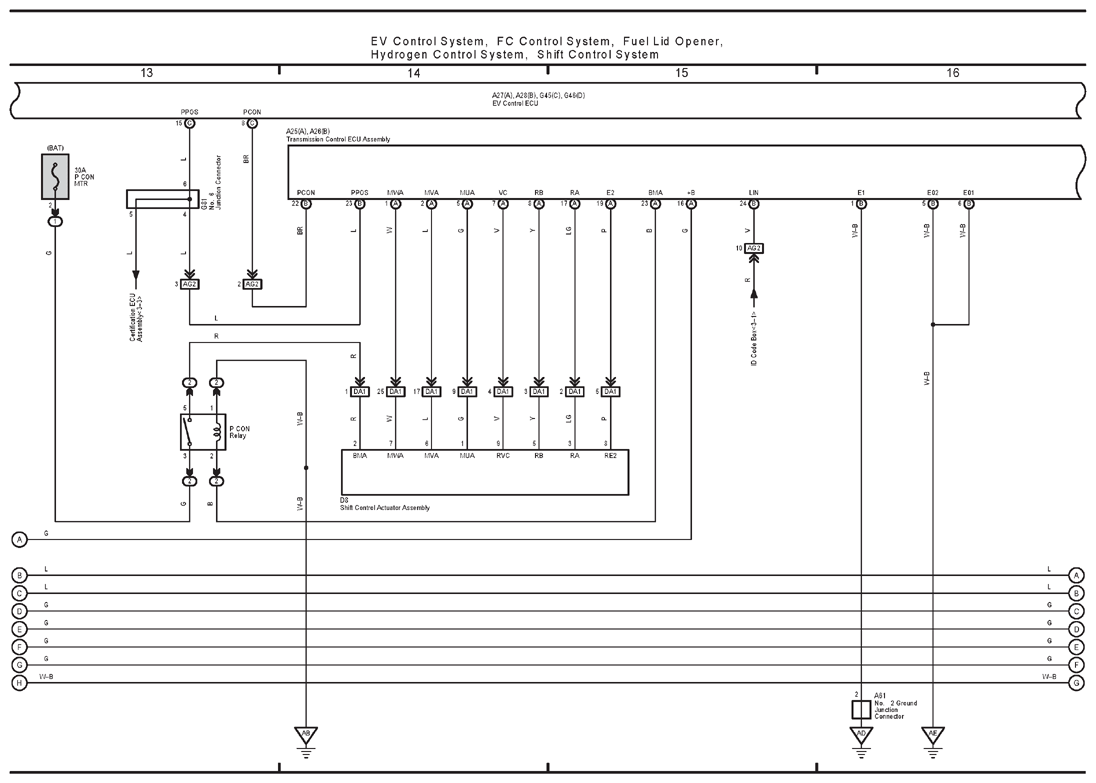

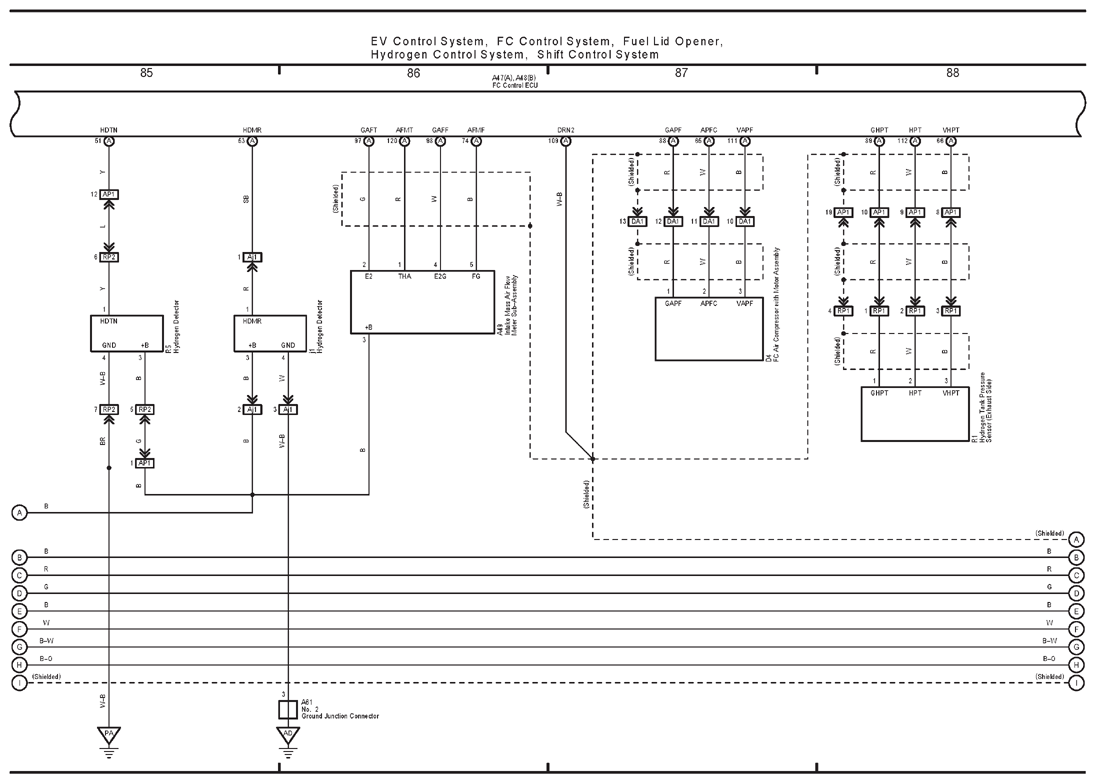

EV Control System, FC Control System, Fuel Lid Opener, Hydrogen Control System, Shift Control System

G12203429

G12203430

G12203431

G12203432

G12203433

G12203434

G12203435

G12203436

G12203437

G12203438

G12203439

G12203440

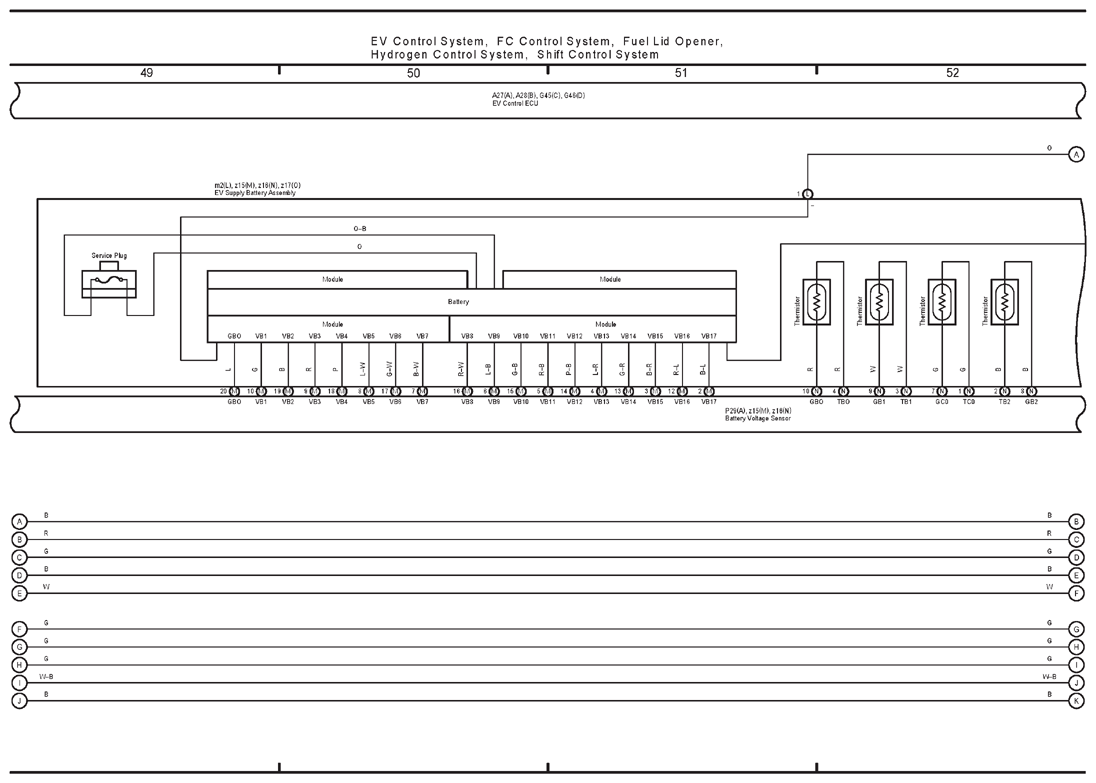

G12203441

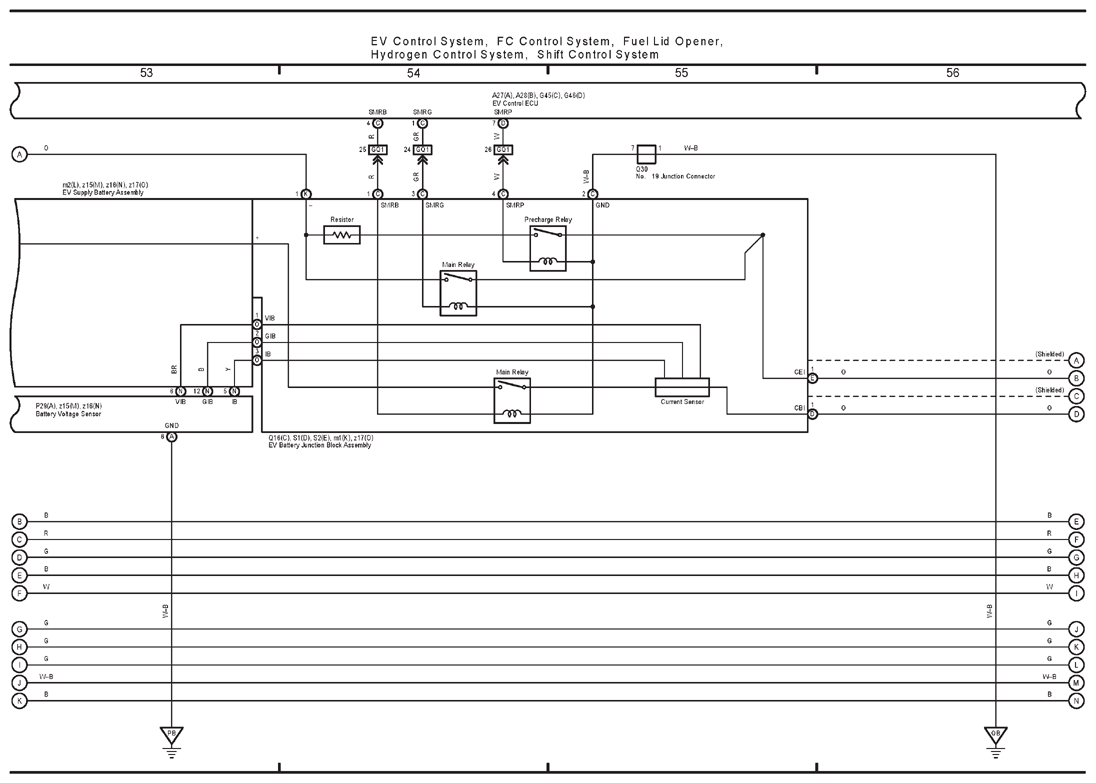

G12203442

G12203443

G12203444

G12203445

G12203446

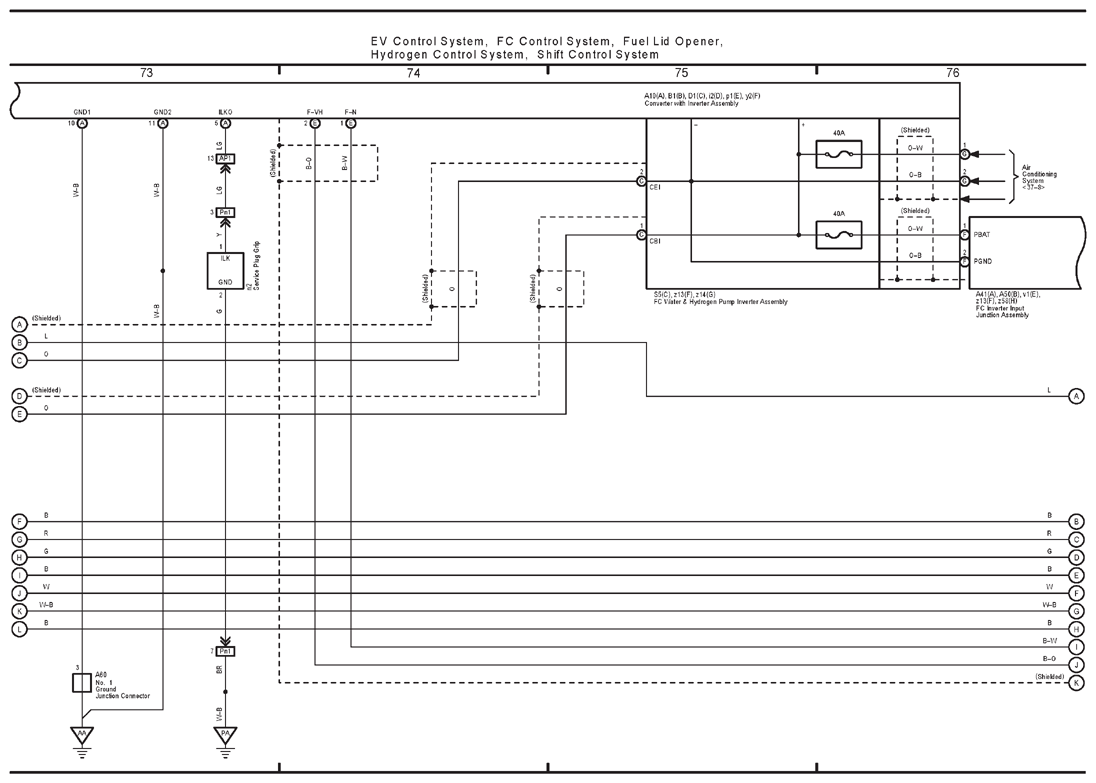

G12203447

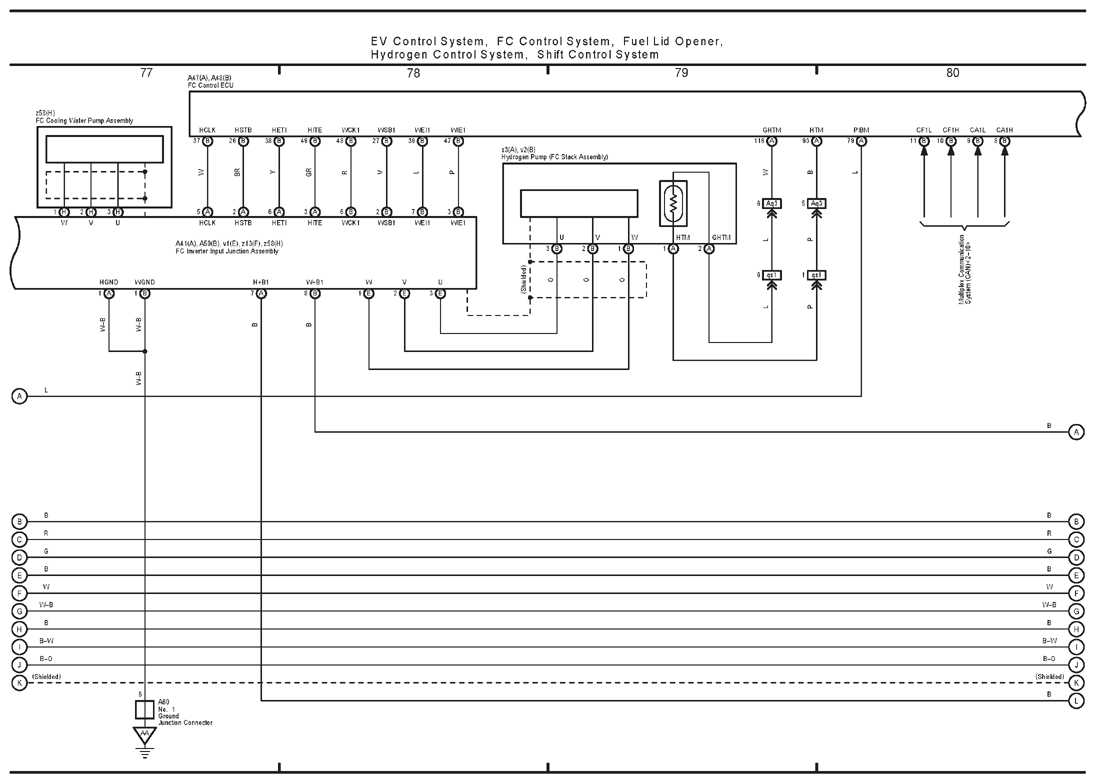

G12203448

G12203449

G12203450

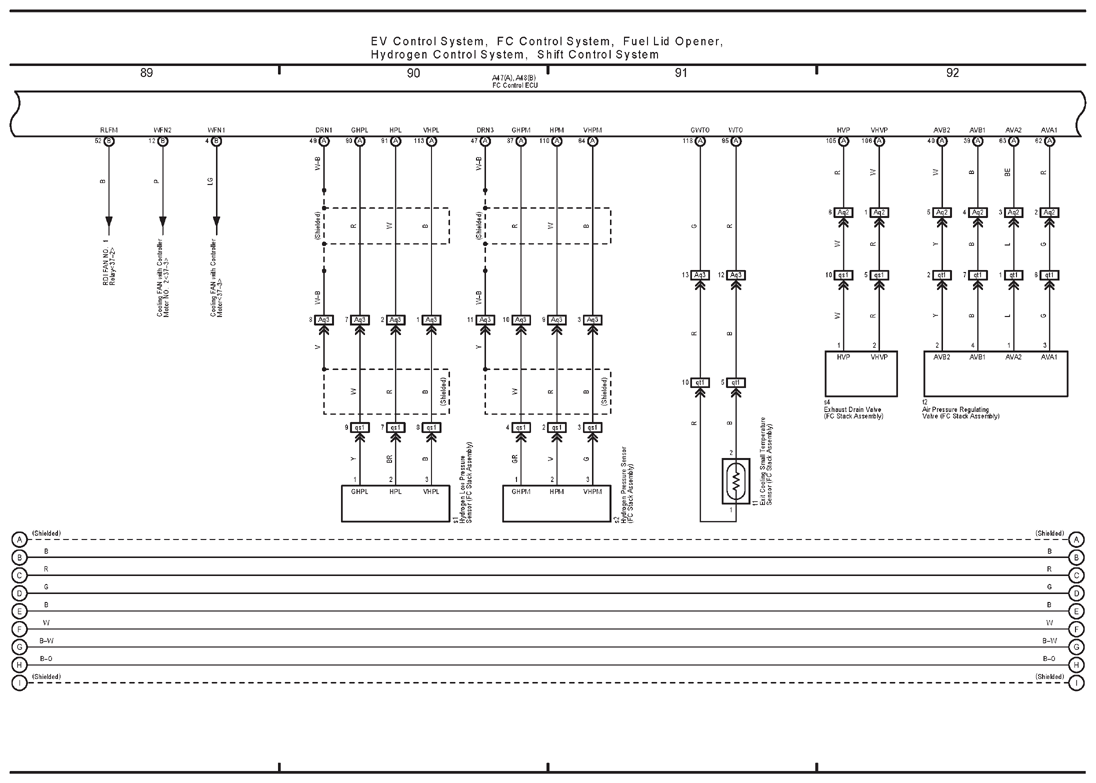

G12203451

G12203452

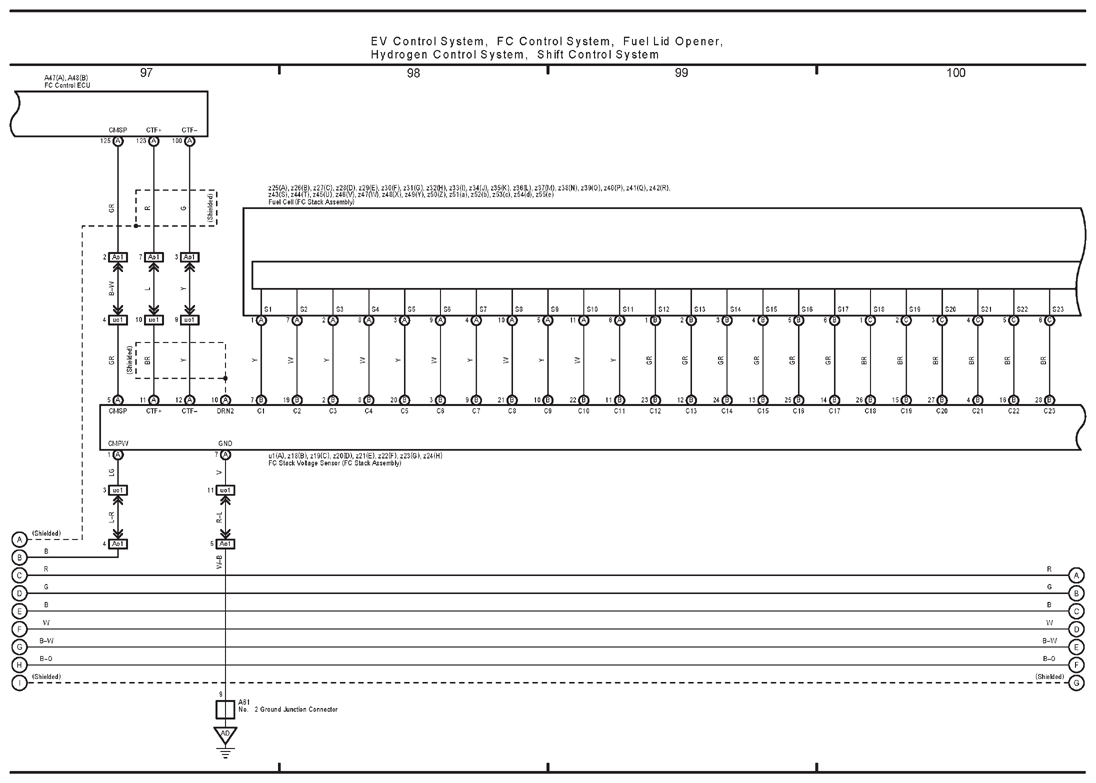

G12203453

G12203454

G12203455

G12203456

G12203457

G12203458

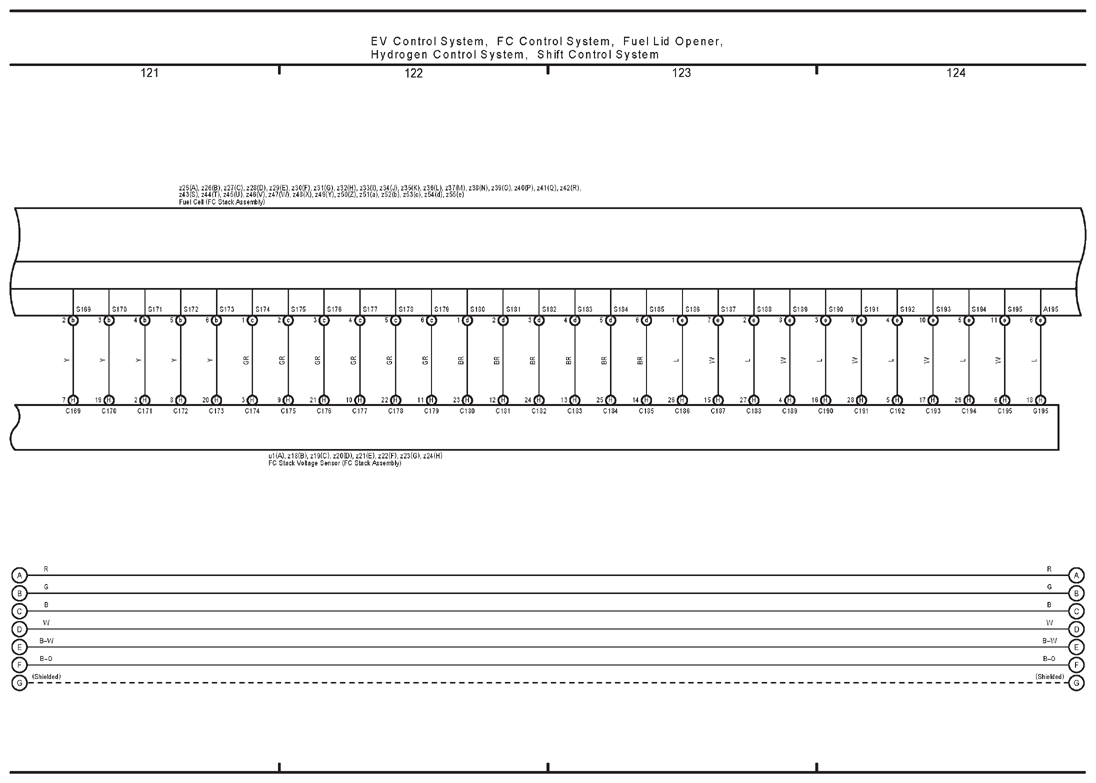

G12203459

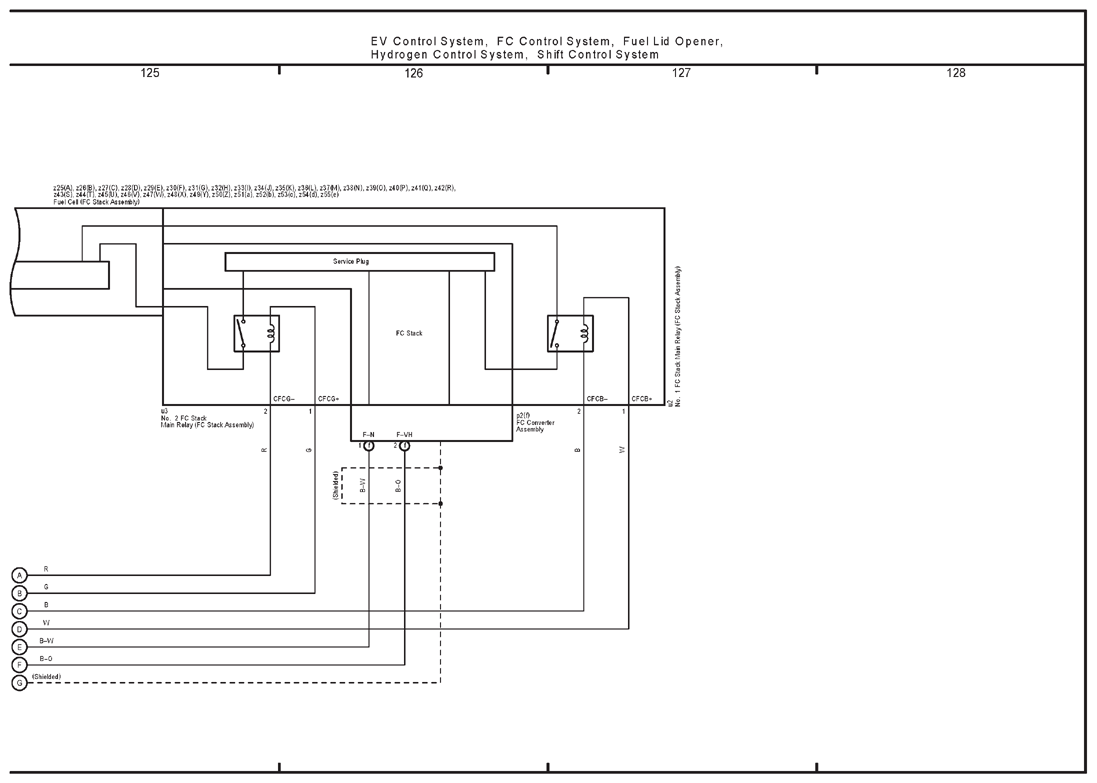

G12203460
