OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>

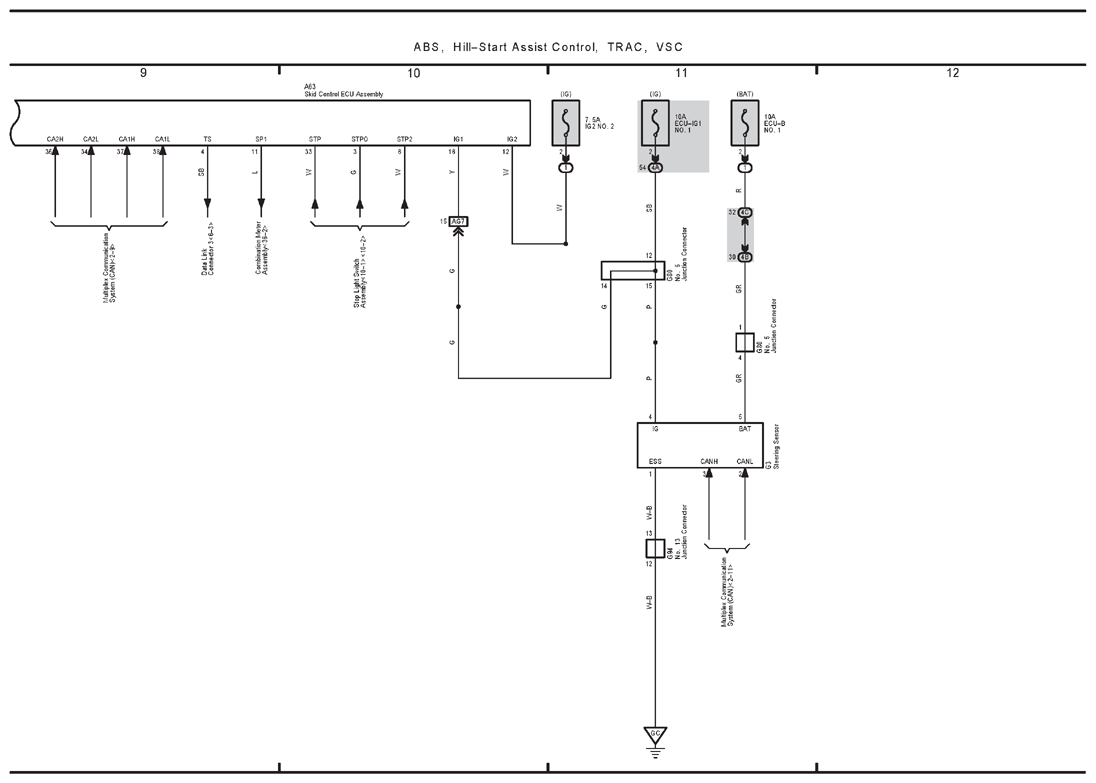

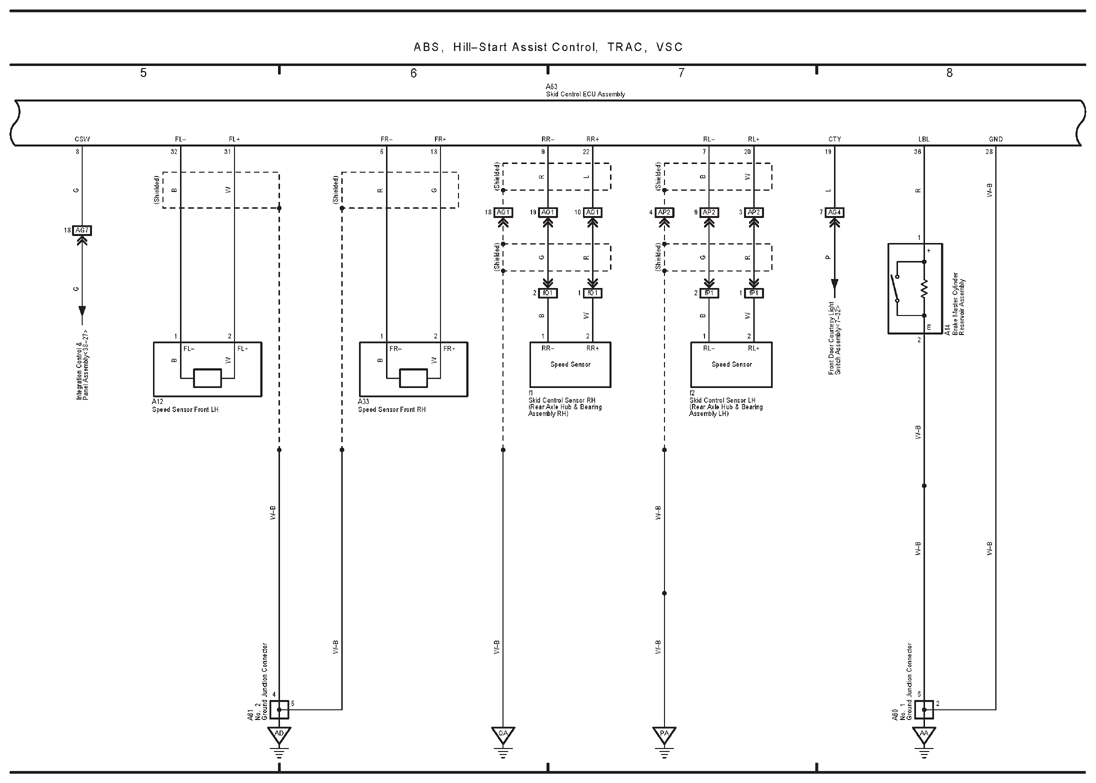

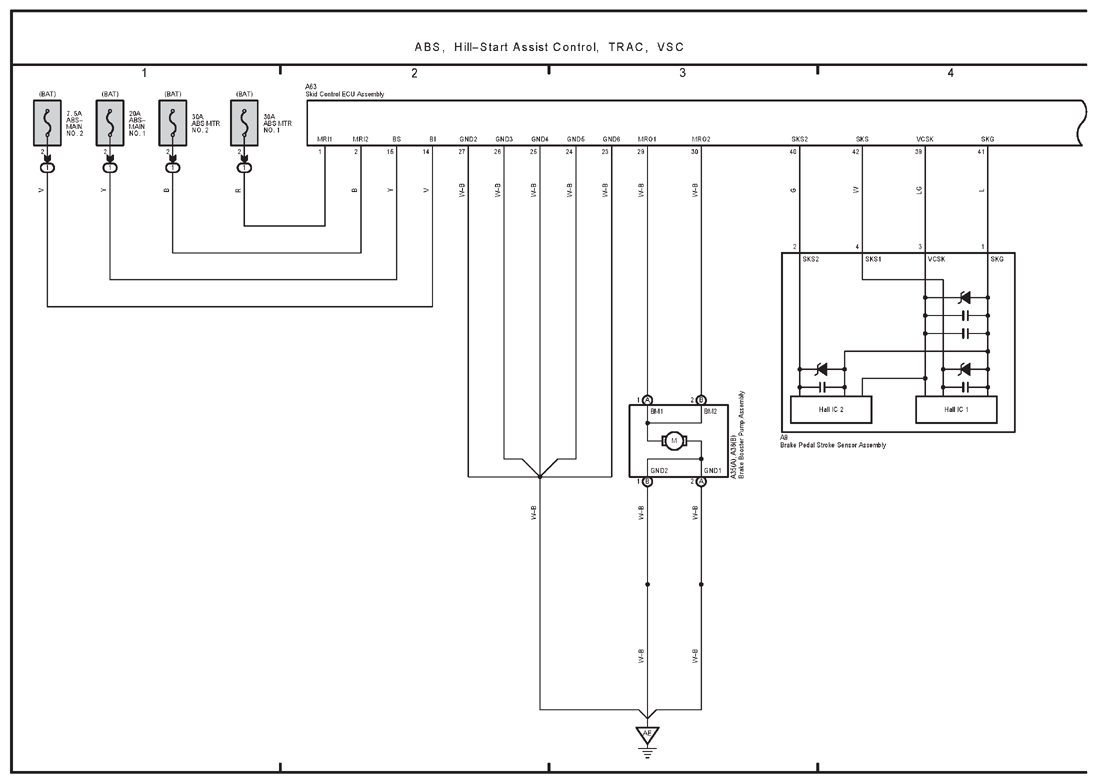

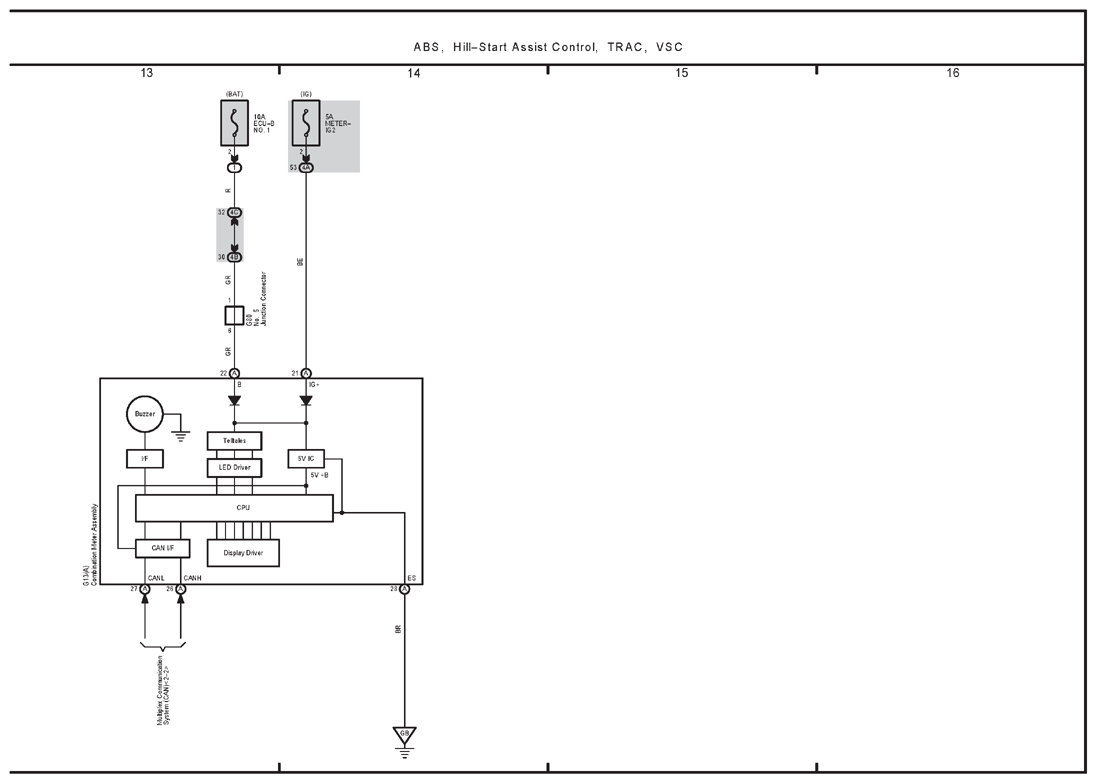

ABS, Hill-Start Assist Control, TRAC, VSC
ABS, Hill-Start Assist Control, TRAC, VSC
