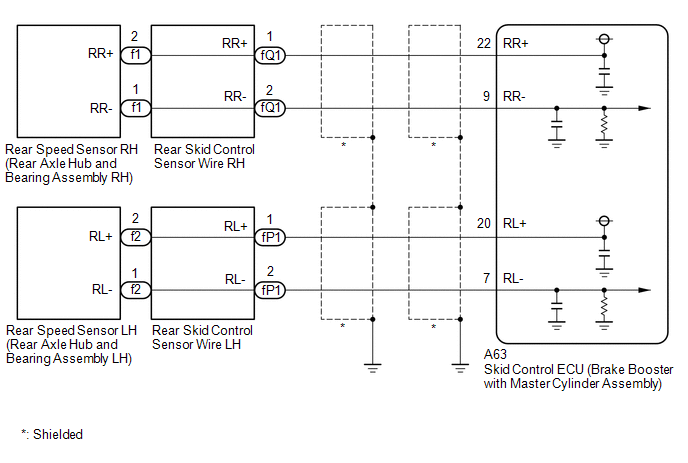

DTC C1273-73: Low Output Signal of Rear Speed Sensor RH (Test Mode DTC); DTC C1274-74: Low Output Signal of Rear Speed Sensor LH (Test Mode DTC); DTC C1466-33: Rear Speed Sensor RH Circuit; DTC C1467-34: Rear Speed Sensor LH Circuit [06-2015 - ]: Wiring Diagram

GTY601692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
