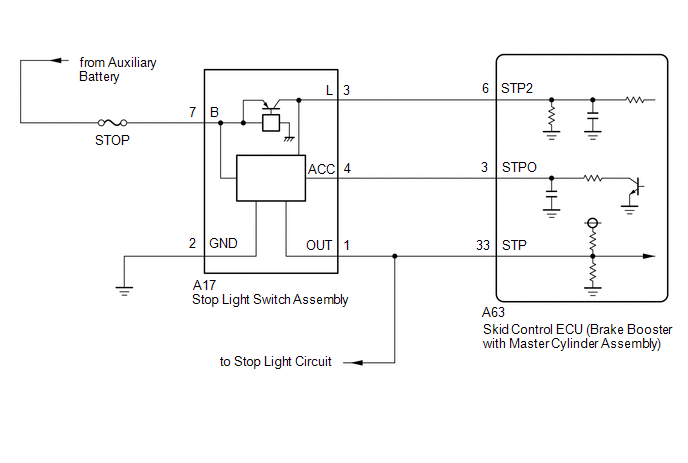

DTC C1249-49: Open in Stop Light Switch Circuit [06/2015 - ]: Wiring Diagram

GTY940601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
