Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

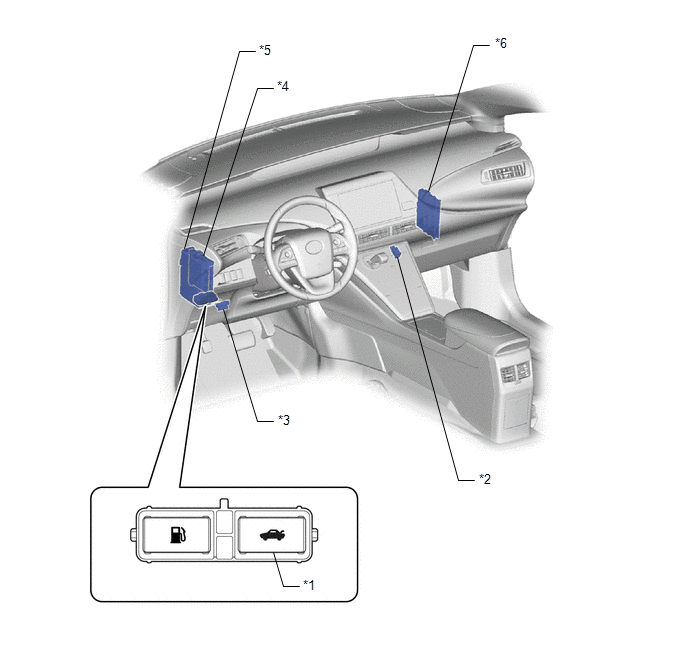

*1	LUGGAGE DOOR OPENING SWITCH ASSEMBLY	*2	LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY
*3	DLC3	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TRUNK OPN RELAY	*6	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

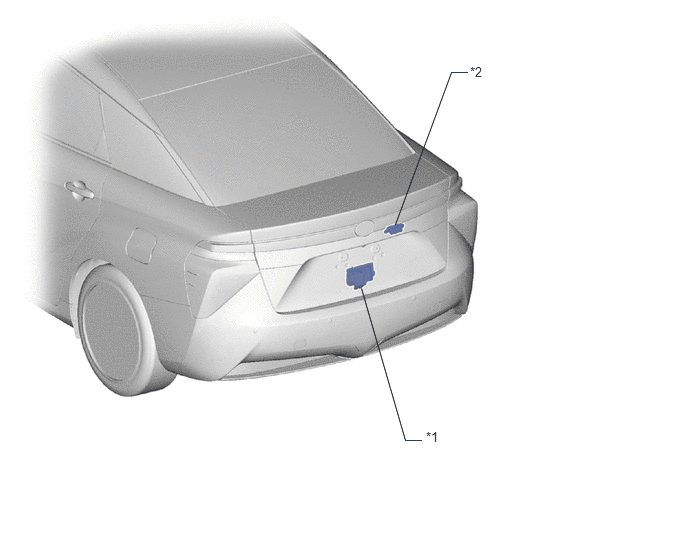

*1

LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

*2

LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY
