Removal [06/2015 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE LIGHT CONTROL RHEOSTAT

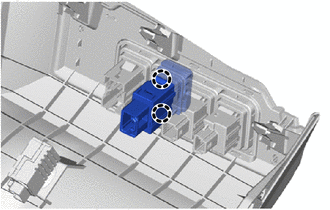

    1. Disengage the claws to remove the light control rheostat.
      GTY551025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
