Installation [06/2015 - 11/2018]: Procedure

INSTALL COMBINATION METER ASSEMBLY

Engage the clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

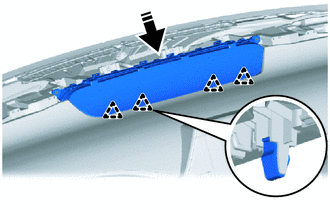

Engage the clips to install the combination meter assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
Refer to PROCEDURE - Step 3 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 3 [01/2018 - ]
INSTALL FRONT PILLAR GARNISH LH
Refer to PROCEDURE - Step 29 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 29 [01/2018 - ]
INSTALL FRONT PILLAR GARNISH RH
HINT:

Use the same procedure as for the LH side.
CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 31 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 31 [01/2018 - ]
CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
HINT:

Use the same procedure as for the LH side.
INSTALL NO. 1 INSTRUMENT PANEL CUSHION
Refer to PROCEDURE - Step 33 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 33 [01/2018 - ]
INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
Refer to PROCEDURE - Step 1
INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 35 [06/2015 - 01/2018] , or refer to PROCEDURE - Step 35 [01/2018 - ]
INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
HINT:

Use the same procedure as for the No. 1 instrument panel speaker panel sub-assembly side.
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
INSTALL LUGGAGE TRIM SERVICE HOLE COVER
Refer to PROCEDURE - Step 3
