Components [06/2015 - ]

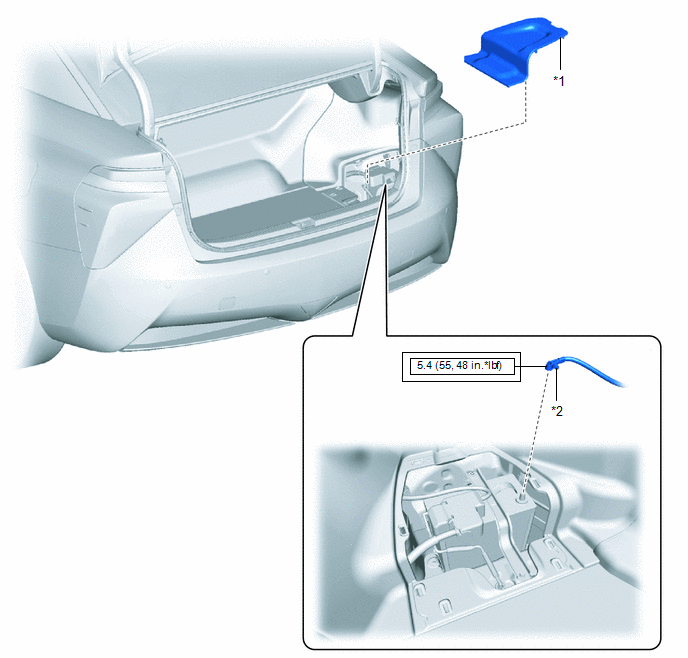

Fig 1: Combination Meter Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LUGGAGE TRIM SERVICE HOLE COVER	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

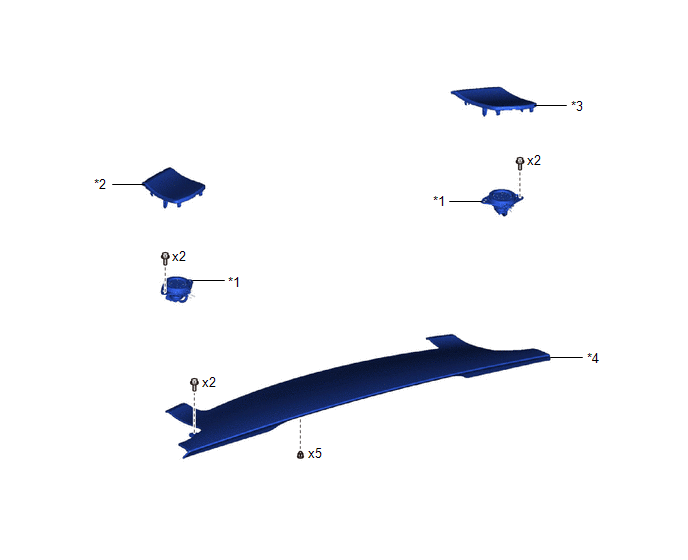

Fig 2: Combination Meter Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 2 SPEAKER ASSEMBLY	*2	NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
*3	NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY	*4	NO. 1 INSTRUMENT PANEL CUSHION

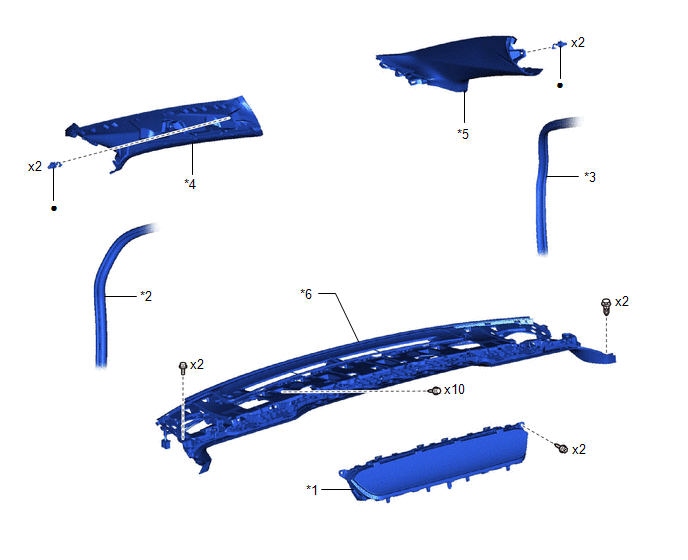

Fig 3: Combination Meter Replacement Components (3 Of 4)

*1	COMBINATION METER ASSEMBLY	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*4	FRONT PILLAR GARNISH LH
*5	FRONT PILLAR GARNISH RH	*6	LOWER INSTRUMENT PANEL ASSEMBLY
•	Non-reusable part	-	-

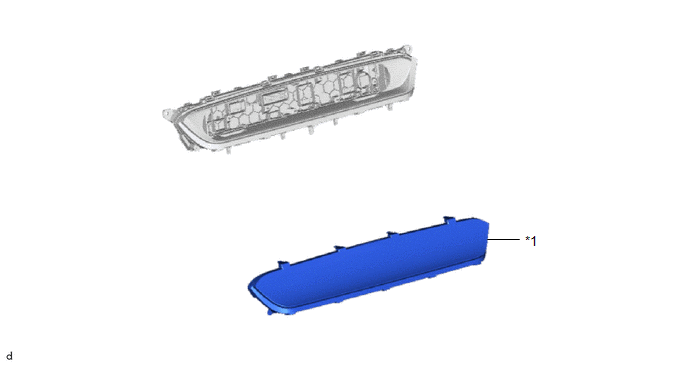

Fig 4: Combination Meter Replacement Components (4 Of 4)

COMBINATION METER GLASS
