Removal [08/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  3. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 17

  6. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 18

  7. REMOVE FRONT FENDER APRON TRIM PACKING A

    Refer to PROCEDURE - Step 5

  8. REMOVE FRONT FENDER APRON TRIM PACKING C

    Refer to PROCEDURE - Step 6

  9. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 38

  10. REMOVE TAILPIPE ASSEMBLY

    Refer to PROCEDURE - Step 2

  11. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 6

  13. REMOVE NO. 1 MANIFOLD STAY

    Refer to PROCEDURE - Step 18

  14. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 19

  15. REMOVE EXHAUST MANIFOLD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 20

  16. REMOVE STARTER COVER

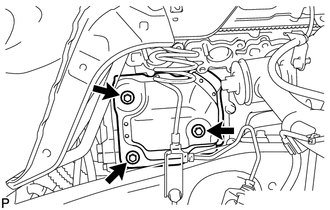

    1. Remove the 3 bolts and starter cover.
      GTY383362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE STARTER ASSEMBLY

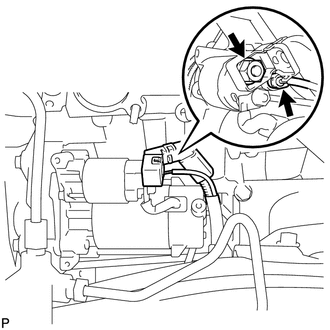

    1. Disconnect the starter connector.
      GTY347668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the starter wire.

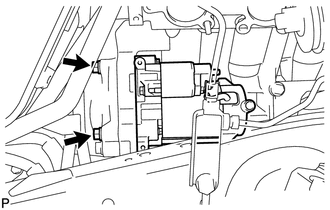

    3. Remove the 2 bolts and starter.
      GTY358011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the flywheel housing side cover.
      GTY611378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
