Components [11/2016 - ]: Illustration

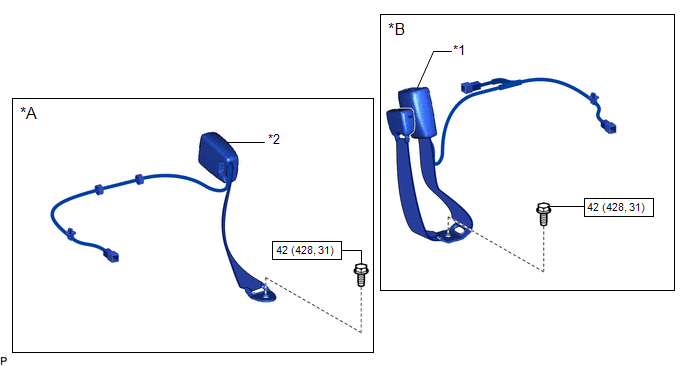

Fig 1: Rear No. 2 Seat Inner Belt Assembly Replacement Components With Torque Specifications
GTY718042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for LH Side *B for RH Side
*1 REAR NO. 2 SEAT INNER BELT ASSEMBLY RH *2 REAR NO. 2 SEAT INNER BELT SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
