Components [12/2013 - 11/2015]: Illustration

Fig 1: Rear No. 1 Seat Outer Belt Assembly Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK BOARD ASSEMBLY	*2	DECK SIDE TRIM BOX LH
*3	NO. 3 DECK BOARD SUB-ASSEMBLY	*4	REAR DECK FLOOR BOX
*5	REAR FLOOR FINISH PLATE	-	-

Fig 1: Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for LH Side	*B	for RH Side
*C	w/o Rear Automatic Air Conditioning System	*D	w/ Rear Automatic Air Conditioning System
*1	COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR	*2	DECK TRIM POCKET COVER
*3	DECK TRIM SIDE PANEL ASSEMBLY LH	*4	DECK TRIM SIDE PANEL ASSEMBLY RH
*5	FRONT DECK SIDE TRIM COVER	*6	NO. 1 DECK SIDE TRIM COVER
*7	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	*8	NO. 1 ROOM LIGHT ASSEMBLY
*9	NO. 2 DECK SIDE TRIM COVER	*10	REAR DOOR OPENING TRIM WEATHERSTRIP
*11	REAR DOOR SCUFF PLATE	*12	REAR NO. 1 SEAT OUTER BELT ASSEMBLY
*13	REAR NO. 2 SEAT OUTER BELT ASSEMBLY	*14	REAR OUTER SEAT TRACK BRACKET COVER
*15	ROPE HOOK	*16	SIDE TRIM COVER RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

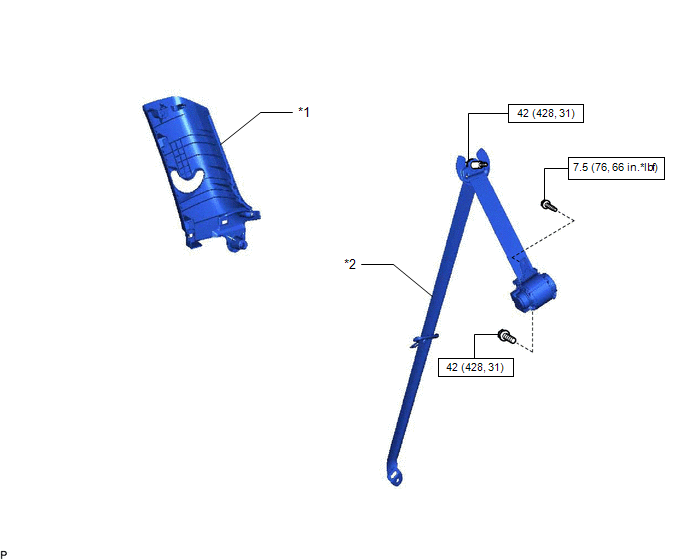

Fig 1: Rear No. 1 Seat Outer Belt Assembly Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	QUARTER PILLAR GARNISH	*2	REAR NO. 1 SEAT OUTER BELT ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
