Installation [12/2013 - 11/2016]: Procedure

INSTALL REAR NO. 2 SEAT 3 POINT TYPE BELT ASSEMBLY
1. Engage the guide and temporarily install the rear No. 2 seat 3 point type belt assembly with the 2 bolts.

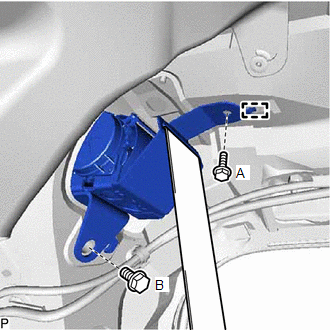

  Fig 1: Tightening Sequence Of Rear No. 2 Seat 3 Point Type Belt Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fully tighten the bolt (A) first, then the bolt (B).
  Bolt (A)

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  Bolt (B)

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
3. Engage the guide and install the through anchor of the rear No. 2 seat 3 point type belt assembly with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION [12/2013 - 11/2015] , or refer to INSTALLATION [11/2015 - 11/2016]
