Inspection [12/2013 - ]: Procedure
- INSPECT REAR NO. 1 CENTER SEAT LAP TYPE BELT ASSEMBLY
- Before installing the rear No. 1 center seat lap type belt assembly, check the ELR function.

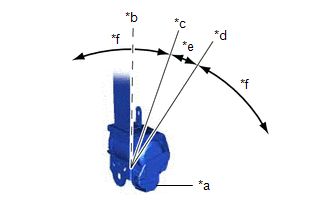

*a Retractor *b 0° *c 19° *d 33° *e Unlock *f Lock NOTE:Do not disassemble the retractor.
- When the inclination of the retractor is between 19° and 33°, check that the belt can be pulled from the retractor. When the inclination of the retractor is less 19° or more than 33°, check that the belt locks.
If the result is not as specified, replace the rear No. 1 center seat lap type belt assembly.
- When the inclination of the retractor is between 19° and 33°, check that the belt can be pulled from the retractor. When the inclination of the retractor is less 19° or more than 33°, check that the belt locks.
- Before installing the rear No. 1 center seat lap type belt assembly, check the ELR function.
