Components [11/2016 - ]: Illustration

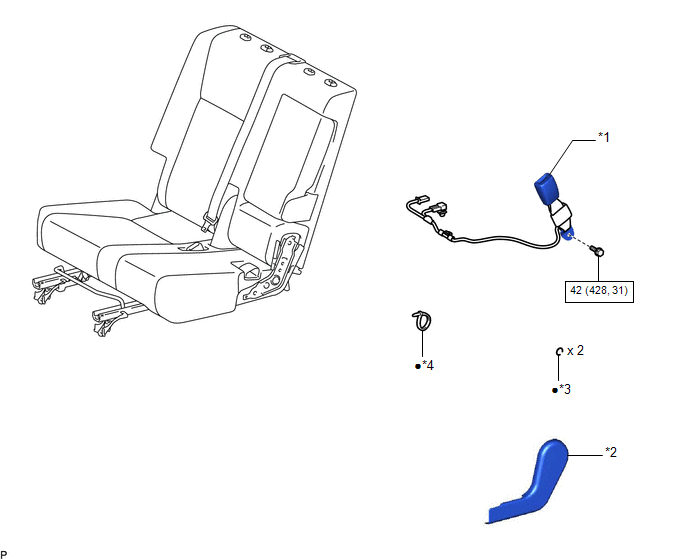

Fig 1: Rear Center Seat Outer Belt Assembly (for Rear No. 1 Seat) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR SEAT INNER BELT ASSEMBLY | *2 | REAR SEAT REAR CUSHION MOULDING RH |
| *3 | HOG RING | *4 | WIRE HARNESS CLAMP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

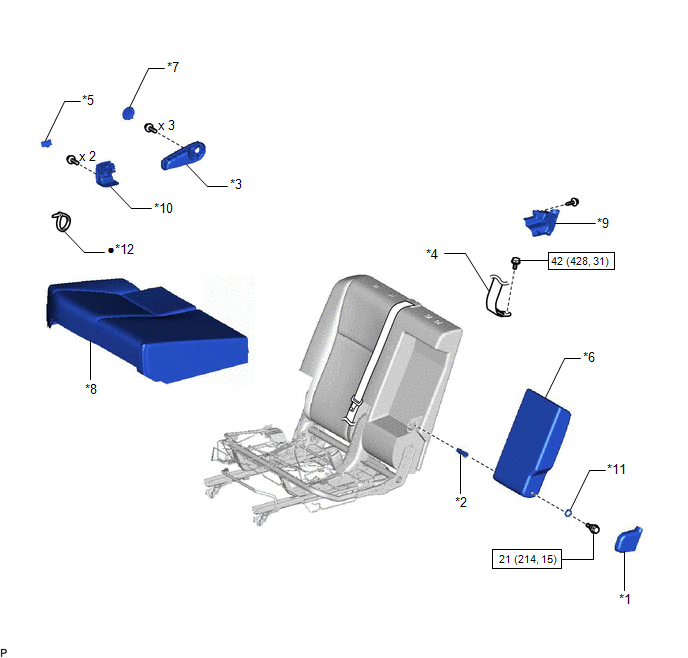

Fig 1: Rear Center Seat Outer Belt Assembly (for Rear No. 1 Seat) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | CENTER ARMREST HINGE COVER RH | *2 | NO. 1 REAR SEAT CENTER ARMREST PLATE |
| *3 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE | *4 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY |
| *5 | REAR NO. 1 SEATBACK LOCK STRIKER COVER | *6 | REAR SEAT CENTER ARMREST ASSEMBLY |
| *7 | REAR SEAT COVER CAP | *8 | REAR SEAT CUSHION COVER WITH PAD |
| *9 | REAR SEAT HINGE COVER | *10 | REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY |
| *11 | NO. 2 REAR SEAT CENTER ARMREST PLATE | *12 | WIRE HARNESS CLAMP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 1: Rear Center Seat Outer Belt Assembly (for Rear No. 1 Seat) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | BELT PROTECTOR | *2 | NO. 2 RECLINING REMOTE CONTROL LEVER KNOB |
| *3 | REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY | *4 | REAR NO. 1 SEAT COVER BEZEL |
| *5 | REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY | *6 | REAR SEAT SHOULDER BELT COVER |
| *7 | REAR SEAT SHOULDER BELT COVER RH | *8 | REAR SEATBACK BOARD CARPET ASSEMBLY |
| *9 | REAR SEATBACK COVER | *10 | REAR SEATBACK COVER RH |
| *11 | REAR SEATBACK COVER WITH PAD | *12 | REAR SEATBACK LOCK STRIKER COVER |
| *13 | SEAT BELT ANCHOR COVER CAP | *14 | HOG RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
