Inspection [11/2016 - ]: Procedure

  1. INSPECT SEAT INNER BELT SUB-ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

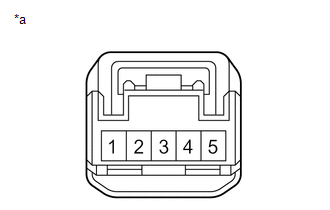

      GTY694264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Seat Inner Belt Sub-assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Rear No. 2 center seat belt unfastened Below 1 Ω
      Rear No. 2 center seat belt fastened 10 kΩ or higher

      If the result is not as specified, replace the seat inner belt sub-assembly.
