Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  2. REMOVE REAR SEAT REAR CUSHION MOULDING RH

    Refer to PROCEDURE - Step 6

  3. REMOVE REAR SEAT INNER BELT ASSEMBLY

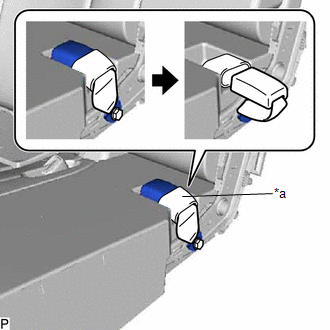

    1. Remove the rear seat inner belt assembly from the rubber band of the rear seat cushion assembly as shown in the illustration.
      GTY433081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rubber Band

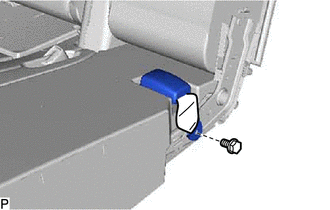

    2. Remove the bolt and rear seat inner belt assembly.
      GTY423881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
