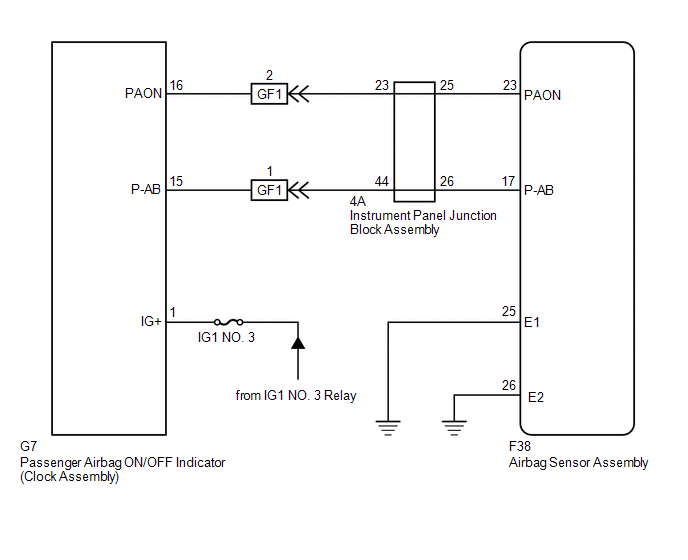

DTC B1660-43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [12/2013 - ]: Wiring Diagram

GTY436551

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
