DTC B1653-35: Seat Position Airbag Sensor Circuit Malfunction [12/2013 - ]: Procedure
- CHECK CONNECTORS
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Check that the connectors are properly connected to the airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
OK
The connectors are properly connected.
HINT:
If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.
- Disconnect the connectors from the airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
- Check that the terminals of the connectors are not damaged.
OK
The terminals are not deformed or damaged.
Result
Proceed to OK NG
Result: 2
NG
REPLACE WIRE HARNESS
Result: 1
OK
See step 2
- CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (OPEN)
- Connect the connectors to the front seat inner belt assembly LH and No. 2 floor wire.

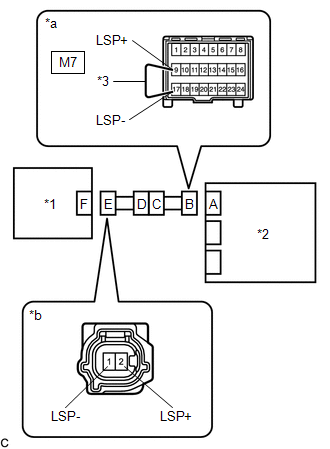

*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *3 Service Wire *a Front view of wire harness connector
(to Airbag Sensor Assembly)*b Front view of wire harness connector
(to Seat Position Airbag Sensor) - Using a service wire, connect terminals 9 (LSP+) and 17 (LSP-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (LSP+) - 1 (LSP-) Always Below 1 Ω Result
Proceed to OK NG
Result: 2
NG
See step 11
Result: 1
OK
See step 3
- Connect the connectors to the front seat inner belt assembly LH and No. 2 floor wire.
- CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT)
- Disconnect the service wire from connector B.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *a Front view of wire harness connector
(to Seat Position Airbag Sensor) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (LSP+) - 1 (LSP-) Always 1 MΩ or higher Result
Result OK NG
Result: 2
NG
See step 10
Result: 1
OK
See step 4
- Disconnect the service wire from connector B.
- CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT TO B+)
- Connect the cable to the negative (-) battery terminal.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *a Front view of wire harness connector
(to Seat Position Airbag Sensor) - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 2 (LSP+) - Body ground Ignition switch ON Below 1 V 1 (LSP-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
Result
Proceed to OK NG
Result: 2
NG
See step 9
Result: 1
OK
See step 5
- Connect the cable to the negative (-) battery terminal.
- CHECK SEAT POSITION AIRBAG SENSOR CIRCUIT (SHORT TO GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 2 (LSP+) - Body ground Always 1 MΩ or higher 1 (LSP-) - Body ground Always 1 MΩ or higher *1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *a Front view of wire harness connector
(to Seat Position Airbag Sensor)Result
Proceed to OK NG
Result: 2
NG
See step 8
Result: 1
OK
See step 6
- Measure the resistance according to the value(s) in the table below.
- CHECK DTC
- Connect the connectors to the airbag sensor assembly and seat position airbag sensor.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly - Connect the cable to the negative (-) battery terminal.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [12/2013 - ]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [12/2013 - ]
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1653-35 is not output.
HINT:
Codes other than DTC B1653-35 may be output at this time, but they are not related to this check.
Result
Result OK NG
Result: 1
OK
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2013 - 11/2016] Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2016 - ]
Result: 2
NG
See step 7
- Connect the connectors to the airbag sensor assembly and seat position airbag sensor.
- CHECK SEAT POSITION AIRBAG SENSOR
- Turn the ignition switch off.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly - Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Replace the seat position airbag sensor with a known good one.
Refer to REMOVAL [12/2013 - ]
HINT:
Perform the following inspection using known good parts from another vehicle if possible.
- Connect the cable to the negative (-) battery terminal.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [12/2013 - ]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [12/2013 - ]
Body Electrical > SRS Airbag > Trouble Codes
OK
DTC B1653-35 is not output.
HINT:
Codes other than DTC B1653-35 may be output at this time, but they are not related to this check.
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- Restore the seat position airbag sensor that was installed for testing to its original location.
Refer to REMOVAL [12/2013 - ]
Result
Proceed to OK NG
Result: 1
OK
REPLACE SEAT POSITION AIRBAG SENSOR. Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [12/2013 - ]
- Turn the ignition switch off.
- CHECK NO. 2 FLOOR WIRE (SHORT TO GROUND)
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *3 Front Seat Inner Belt Assembly LH *4 No. 2 Floor Wire *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly LH) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M4-4 (LSP+) - Body ground Always 1 MΩ or higher M4-3 (LSP-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
for Manual Seat: Refer to REMOVAL [12/2013 - ]
for Power Seat: Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
- CHECK NO. 2 FLOOR WIRE (SHORT TO B+)
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *3 Front Seat Inner Belt Assembly LH *4 No. 2 Floor Wire *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly LH) - Connect the cable to the negative (-) battery terminal.
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition M4-4 (LSP+) - Body ground Ignition switch ON Below 1 V M4-3 (LSP-) - Body ground Ignition switch ON Below 1 V Result
Proceed to OK NG
Result: 1
OK
REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
for Manual Seat: Refer to REMOVAL [12/2013 - ]
for Power Seat: Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
- CHECK NO. 2 FLOOR WIRE (SHORT)
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *3 Front Seat Inner Belt Assembly LH *4 No. 2 Floor Wire *a Front view of wire harness connector
(to Front Seat Inner Belt Assembly LH) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M4-4 (LSP+) - M4-3 (LSP-) Always 1 MΩ or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
for Manual Seat: Refer to REMOVAL [12/2013 - ]
for Power Seat: Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
- CHECK NO. 2 FLOOR WIRE (OPEN)
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.

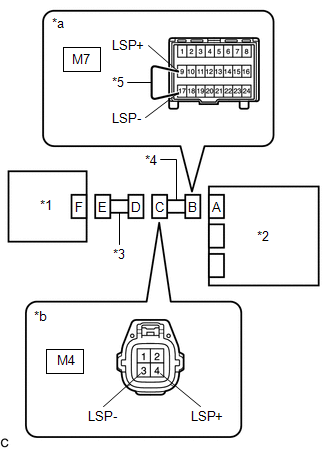

*1 Seat Position Airbag Sensor *2 Airbag Sensor Assembly *3 Front Seat Inner Belt Assembly LH *4 No. 2 Floor Wire *5 Service Wire *a Front view of wire harness connector
(to Airbag Sensor Assembly)*b Front view of wire harness connector
(to Front Seat Inner Belt Assembly LH)HINT:
The service wire has already been inserted into connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M4-4 (LSP+) - M4-3 (LSP-) Always Below 1 Ω - Disconnect the service wire from the connector B.
Result
Proceed to OK NG
Result: 1
OK
REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
for Manual Seat: Refer to REMOVAL [12/2013 - ]
for Power Seat: Refer to REMOVAL [12/2013 - ]
Result: 2
NG
REPLACE NO. 2 FLOOR WIRE
- Disconnect the No. 2 floor wire from the front seat inner belt assembly LH.
