Installation [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL STUD BOLT

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

    1. Using an E6 "TORX" socket wrench, install the 3 stud bolts to the intake manifold.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      GTY691206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Install 2 new No. 1 intake manifold to head gaskets to the cylinder head sub-assembly LH and cylinder head sub-assembly RH.
      NOTE:
      • Align the port holes of the No. 1 intake manifold to head gaskets and cylinder head sub-assembly LH and cylinder head sub-assembly RH.
      • Make sure that the No. 1 intake manifold to head gaskets are installed in the correct direction.
  3. INSTALL INTAKE MANIFOLD
    1. Temporarily install the intake manifold to the cylinder head sub-assembly LH and cylinder head sub-assembly RH with the 4 bolts and 4 nuts.
    2. Tighten the 4 bolts and 4 nuts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

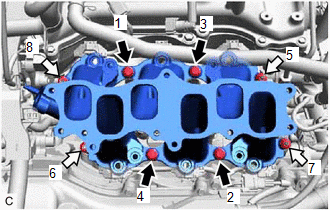

      Fig 1: Intake Manifold Tightening Sequence
      GTY646785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  4. INSTALL INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 2

  5. INSTALL NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 3

  6. INSTALL FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  7. CONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  8. INSTALL NO. 2 EGR PIPE GASKET
    1. Install a new No. 2 EGR pipe gasket to the No. 2 EGR pipe.
      GTY677180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
      NOTE:

      Make sure that the No. 2 EGR pipe gasket is installed in the correct direction.

    2. Install a new No. 2 EGR pipe gasket to the EGR valve assembly.
      NOTE:

      Make sure that the No. 2 EGR pipe gasket is installed in the correct direction.

      GTY623412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
  9. INSTALL NO. 2 EGR PIPE
    1. Set the No. 2 EGR pipe.
    2. Using an E6 "TORX" socket wrench, install the stud bolt to the intake manifold.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Install the No. 2 EGR pipe to the intake manifold and EGR valve assembly with the 2 bolts and 2 nuts in the order shown in the illustration.

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      Fig 2: No. 2 Egr Pipe Tightening Sequence
      GTY720168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  10. INSTALL NO. 2 ENGINE MOUNTING STAY RH
    1. Install the No. 2 engine mounting stay RH to the intake manifold with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      GTY691212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the No. 2 engine mounting stay RH to the engine moving control rod with the bolt and 2 nuts.
      GTY708005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Bolt

      Torque: 38 N*m (387 kgf*cm, 28 ft.*lbf)

      Nut

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

    3. Connect the wire harness clamp bracket to the No. 2 engine mounting stay RH with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the EGR valve assembly connector.
      GTY696256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fuel Tube Sub-assembly Connector
      *b EGR Valve Assembly Connector
    5. Connect the fuel tube sub-assembly connector.
    6. Engage the wire harness clamp to the wire harness clamp bracket.
  11. INSTALL RESERVOIR BRACKET

    Refer to PROCEDURE - Step 41

  12. INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

    Refer to PROCEDURE - Step 42

  13. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. Install the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) to the intake air surge tank assembly with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  14. INSTALL NO. 1 V-BANK COVER BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 1 V-bank cover bracket is necessary.

    1. Install the 2 No. 1 V-bank cover brackets to the intake air surge tank assembly.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

  15. INSTALL AIR SURGE TANK TO INTAKE MANIFOLD GASKET
    1. Install a new air surge tank to intake manifold gasket to the intake air surge tank assembly.
  16. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
    NOTE:

    Do not apply oil to the bolts and nuts as listed below:

    Oil Application Prohibited Bolt and Nut
    Bolt and Nut for Intake Air Surge Tank Assembly and Intake Manifold
    1. Set the intake air surge tank assembly.
    2. Temporarily install the intake air surge tank assembly to the intake manifold with the 5 bolts and 2 nuts.
    3. Temporarily install the No. 2 surge tank stay to the intake air surge tank assembly and camshaft housing sub-assembly with the 2 bolts.
    4. Tighten the 5 bolts and 2 nuts in the order shown in the illustration.
      Fig 3: Intake Air Surge Tank Assembly Tightening Sequence
      GTY731487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Tighten the 2 bolts in the order shown in the illustration.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      GTY725040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the water hose clamp to the intake air surge tank assembly with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    7. Engage the 2 wire harness clamps and connect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
  17. CONNECT PURGE VALVE (PURGE VSV)
    1. Connect the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Connect the No. 1 fuel vapor feed hose to the intake air surge tank assembly.
  18. CONNECT VENTILATION HOSE
    1. Connect the ventilation hose to the intake air surge tank assembly and slide the clip to secure it.
  19. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [11/2016 - ]

  20. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  21. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 74
