Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  2. SECURE STEERING WHEEL
    1. Secure the steering wheel with the seat belt in order to prevent rotation.
      GTY433135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This operation is useful to prevent damage to the spiral cable.

  3. REMOVE FRONT WHEELS
  4. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Put matchmarks on the steering intermediate shaft assembly and the steering link assembly.
      GTY443624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt and separate the steering intermediate shaft assembly from the steering link assembly.
  5. SEPARATE TIE ROD ASSEMBLY LH
    1. Remove the cotter pin and nut.
      GTY433131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install SST to the tie rod assembly LH.
      GTY433422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09960-20010
        1. 09961-02060
      NOTE:

      Make sure that the upper ends of the tie rod assembly LH and SST are aligned.

    3. Secure SST using a string.
      NOTE:

      Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.

    4. Using SST, separate the tie rod assembly LH from the steering knuckle.
      • SST: 09960-20010
        1. 09961-02010
      GTY440527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a String *b Molybdenum grease application area
      *c Place wrench here *d Turn
      *e Center Nut - -
      WARNING:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      NOTE:
      • Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
      • Install SST with the center nut so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
      • Be sure to place the wrench on the part indicated in the illustration.
      • Do not damage the front disc brake dust cover sub-assembly.
      • Do not damage the ball joint dust cover.
      • Do not damage the steering knuckle.
  6. SEPARATE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  7. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  8. REMOVE FRONT NO. 1 STABILIZER BRACKET LH

    Refer to PROCEDURE - Step 5

  9. REMOVE FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Perform the same procedure as for the LH side.

  10. REMOVE FRONT STABILIZER BAR WITH FRONT STABILIZER LINK ASSEMBLY
    1. Remove the front stabilizer bar with 2 front stabilizer links, 2 front No. 2 stabilizer brackets and 2 front No. 1 stabilizer bar bushings from the front frame assembly.
  11. REMOVE STEERING LINK ASSEMBLY

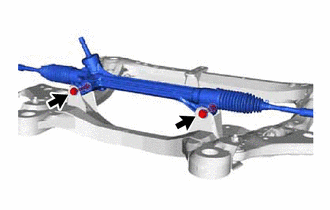

    1. Remove the 2 bolts, 2 nuts and steering link assembly from the front frame assembly.
      GTY718512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the nut from rotating while turning the bolt because the nut has its own stopper.

  12. SECURE STEERING LINK ASSEMBLY
    1. Using SST, secure the steering link assembly in a vise.
      • SST: 09612-00012
      GTY450579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Tape SST before use.

  13. REMOVE TIE ROD ASSEMBLY LH
    1. Put matchmarks on the tie rod assembly LH and steering gear assembly.
      GTY429095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the tie rod assembly LH and lock nut.
  14. REMOVE TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.
