Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

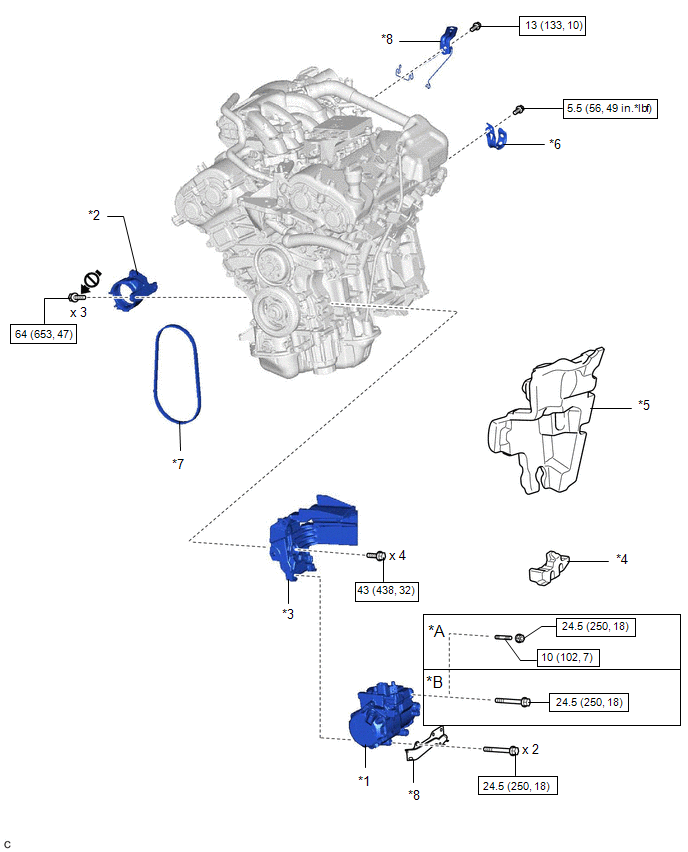

Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 12)
GTY701743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 COMPRESSOR WITH MOTOR ASSEMBLY *2 REAR ENGINE MOUNTING BRACKET
*3 NO. 1 COMPRESSOR MOUNTING BRACKET *4 NO. 4 CYLINDER BLOCK INSULATOR
*5 NO. 5 CYLINDER BLOCK INSULATOR *6 RADIATOR PIPE CLAMP
*7 V-RIBBED BELT *8 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque Do not apply lubricants to the threaded parts

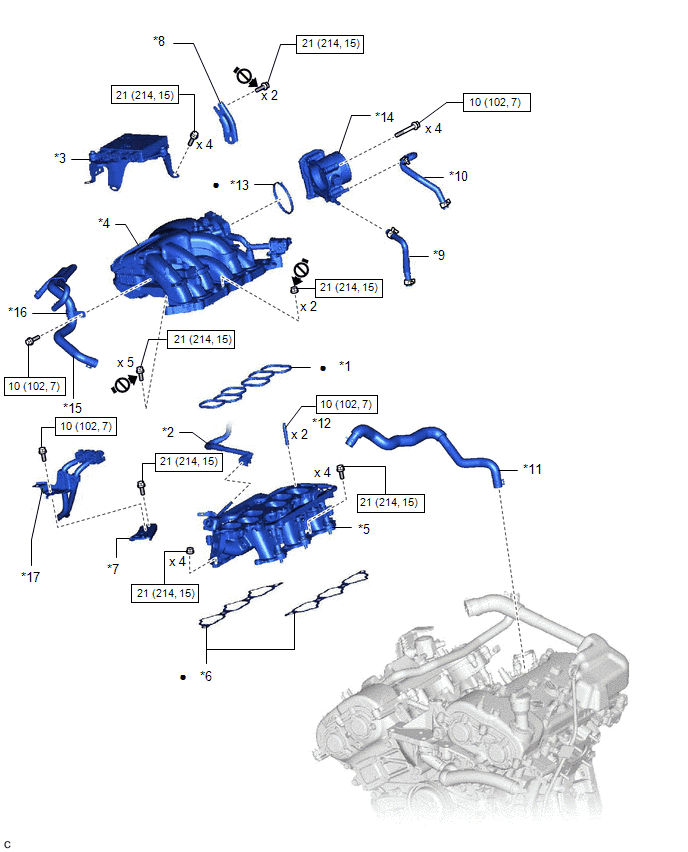

Fig 1: Engine Unit Replacement Components With Torque Specifications (2 Of 12)
GTY719304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR SURGE TANK TO INTAKE MANIFOLD GASKET *2 FUEL TUBE SUB-ASSEMBLY
*3 INJECTOR DRIVER *4 INTAKE AIR SURGE TANK ASSEMBLY
*5 INTAKE MANIFOLD *6 NO. 1 INTAKE MANIFOLD TO HEAD GASKET
*7 NO. 2 ENGINE MOUNTING STAY RH *8 NO. 2 SURGE TANK STAY
*9 NO. 2 WATER BY-PASS HOSE *10 NO. 3 WATER BY-PASS HOSE
*11 NO. 6 WATER BY-PASS HOSE *12 STUD BOLT
*13 THROTTLE BODY GASKET *14 THROTTLE BODY WITH MOTOR ASSEMBLY
*15 WATER BY-PASS HOSE ASSEMBLY *16 WATER HOSE CLAMP
*17 WIRE HARNESS CLAMP BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants to the threaded parts - -

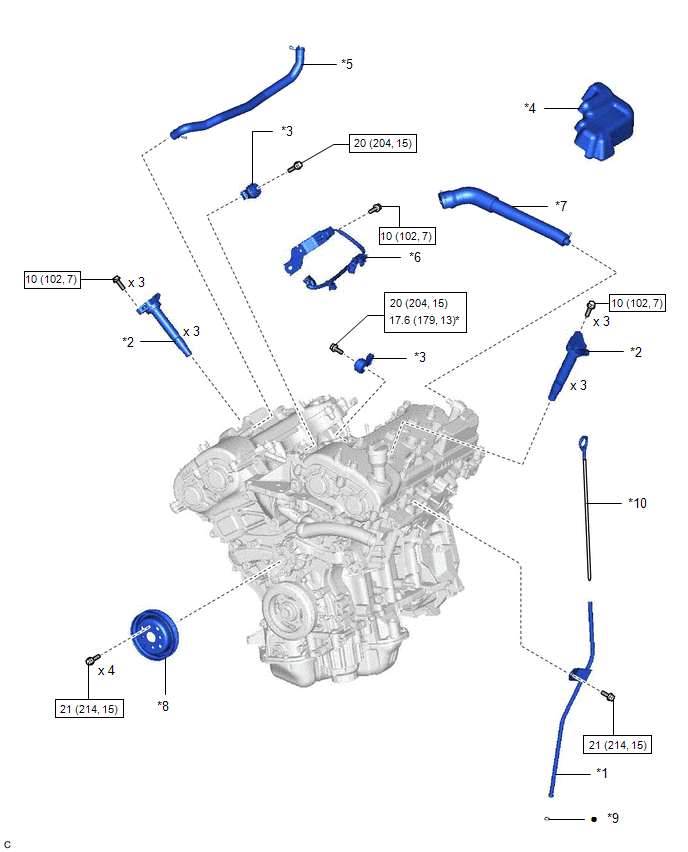

Fig 1: Engine Unit Replacement Components With Torque Specifications (3 Of 12)
GTY716667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL DIPSTICK GUIDE *2 IGNITION COIL ASSEMBLY
*3 KNOCK CONTROL SENSOR *4 NO. 1 ENGINE COVER
*5 NO. 2 VENTILATION HOSE *6 SENSOR WIRE
*7 VENTILATION HOSE *8 WATER PUMP PULLEY
*9 ENGINE OIL LEVEL DIPSTICK GUIDE O-RING *10 ENGINE OIL LEVEL DIPSTICK
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
* For use with a union nut wrench - -

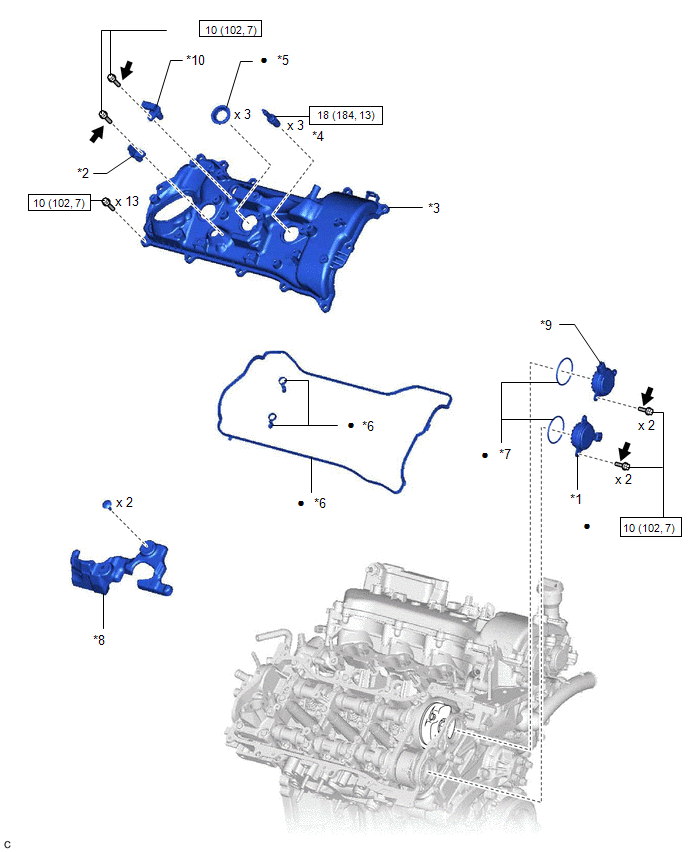

Fig 1: Engine Unit Replacement Components With Torque Specifications (4 Of 12)
GTY760434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) *2 VVT SENSOR (for Exhaust Side of Bank 1)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY *4 SPARK PLUG
*5 SPARK PLUG TUBE GASKET *6 CYLINDER HEAD COVER GASKET
*7 O-RING *8 NO. 1 ENGINE COVER SUB-ASSEMBLY
*9 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) *10 VVT SENSOR (for Intake Side of Bank 1)
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

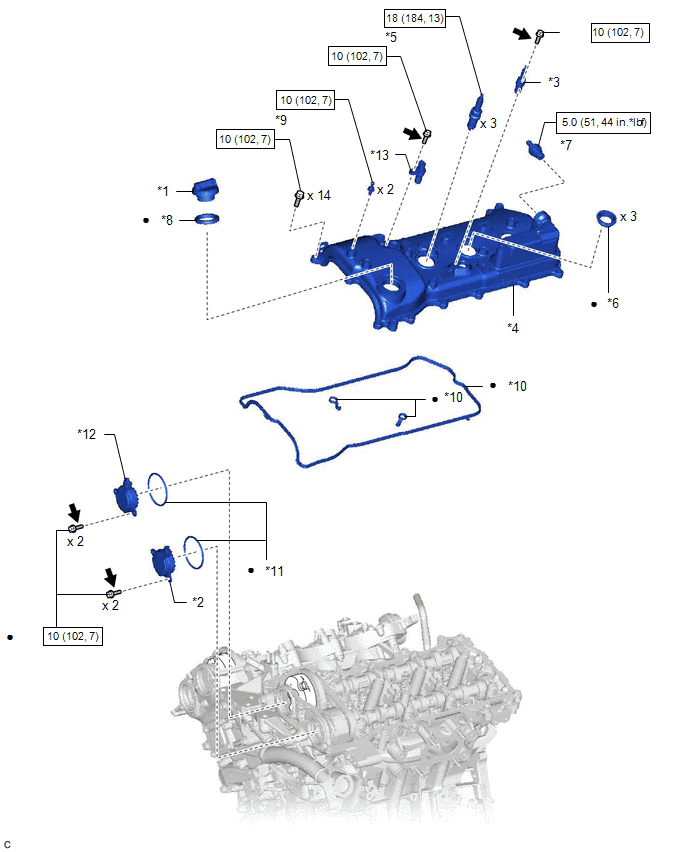

Fig 1: Engine Unit Replacement Components With Torque Specifications (5 Of 12)
GTY758622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL FILLER CAP SUB-ASSEMBLY *2 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)
*3 VVT SENSOR (for Exhaust Side of Bank 2) *4 CYLINDER HEAD COVER SUB-ASSEMBLY LH
*5 SPARK PLUG *6 SPARK PLUG TUBE GASKET
*7 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *8 OIL FILLER CAP GASKET
*9 NO. 1 V-BANK COVER BRACKET *10 NO. 2 CYLINDER HEAD COVER GASKET
*11 O-RING *12 CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
*13 VVT SENSOR (for Intake Side of Bank 2) - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1324 * Precoated part

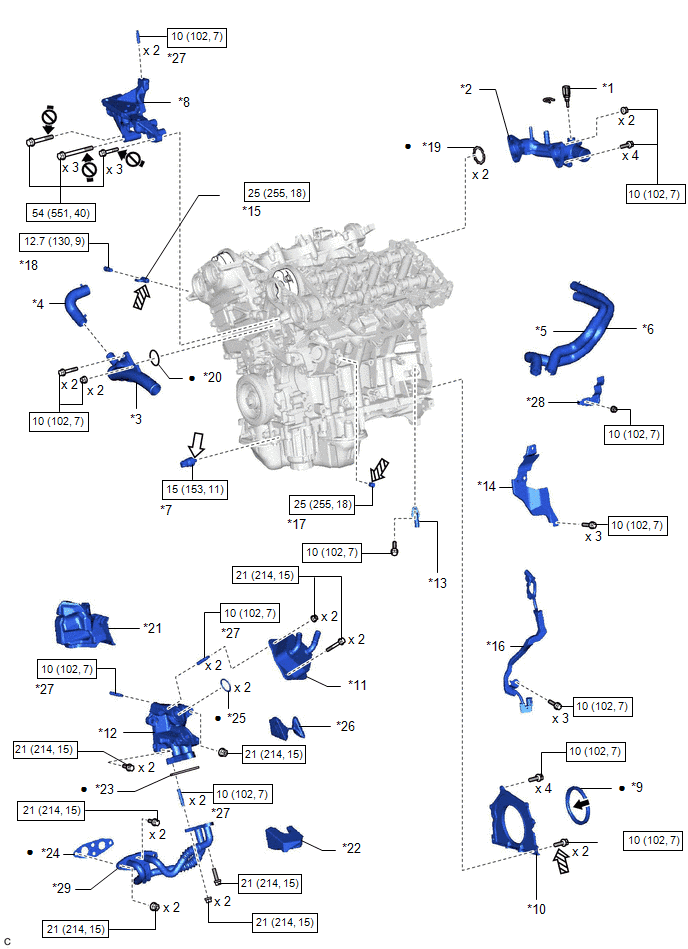

Fig 1: Engine Unit Replacement Components With Torque Specifications (6 Of 12)
GTY724627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 WATER OUTLET
*3 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY *4 WATER BY-PASS HOSE
*5 NO. 4 WATER BY-PASS HOSE *6 NO. 5 WATER BY-PASS HOSE
*7 ENGINE OIL PRESSURE SWITCH ASSEMBLY *8 FRONT NO. 1 ENGINE MOUNTING BRACKET LH
*9 REAR ENGINE OIL SEAL *10 REAR ENGINE OIL SEAL RETAINER
*11 OIL COOLER ASSEMBLY *12 NO. 1 OIL COOLER BRACKET
*13 CRANKSHAFT POSITION SENSOR *14 CRANKSHAFT POSITION SENSOR PROTECTOR
*15 CYLINDER BLOCK WATER DRAIN COCK SUB-ASSEMBLY *16 SENSOR WIRE
*17 TAPER SCREW PLUG *18 CYLINDER BLOCK WATER DRAIN COCK PLUG
*19 NO. 2 WATER INLET HOUSING GASKET *20 GASKET
*21 NO. 2 CYLINDER BLOCK INSULATOR *22 NO. 3 CYLINDER BLOCK INSULATOR
*23 OIL COOLER GASKET *24 OIL HOLE COVER GASKET
*25 O-RING *26 NO. 1 CYLINDER BLOCK INSULATOR
*27 STUD BOLT *28 HOSE CLAMP
*29 OIL COOLER PIPE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Adhesive 1344
Adhesive 1324 * Precoated part
Do not apply lubricants to the threaded parts - -

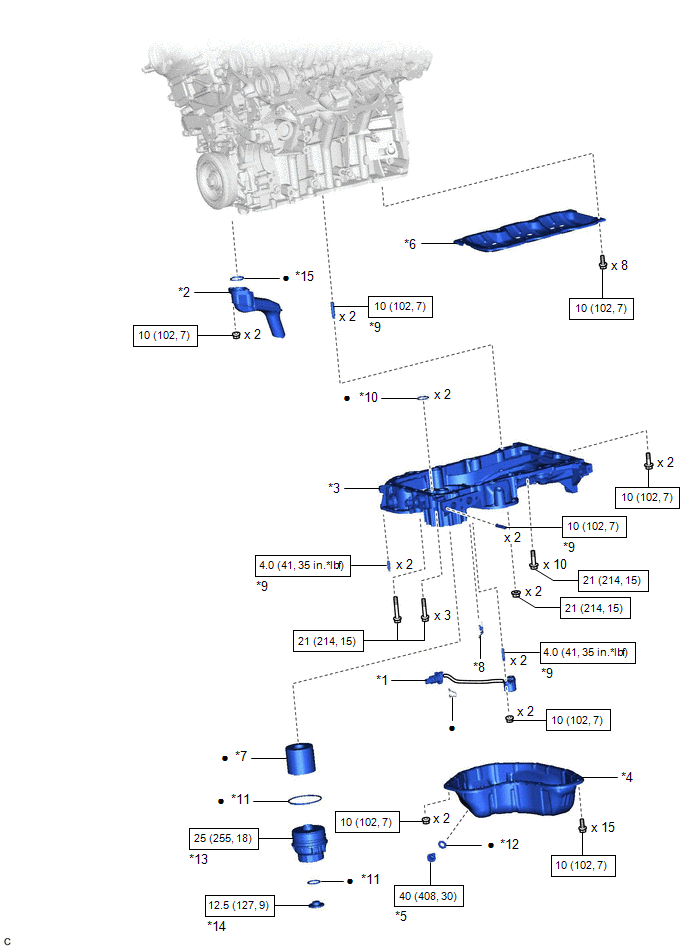

Fig 1: Engine Unit Replacement Components With Torque Specifications (7 Of 12)
GTY688253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL SENSOR *2 OIL STRAINER SUB-ASSEMBLY
*3 OIL PAN SUB-ASSEMBLY *4 NO. 2 OIL PAN SUB-ASSEMBLY
*5 OIL PAN DRAIN PLUG *6 NO. 1 OIL PAN BAFFLE PLATE
*7 OIL FILTER ELEMENT *8 OIL FILTER BRACKET CLIP
*9 STUD BOLT *10 OIL PAN GASKET
*11 O-RING *12 OIL PAN DRAIN PLUG GASKET
*13 OIL FILTER CAP ASSEMBLY *14 OIL FILTER DRAIN PLUG
*15 OIL STRAINER GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

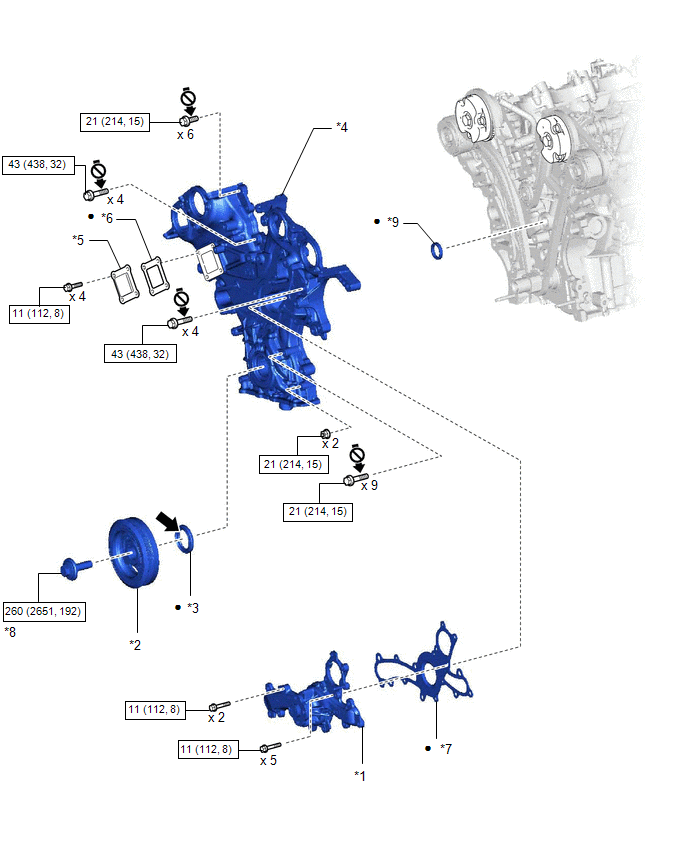

Fig 1: Engine Unit Replacement Components With Torque Specifications (8 Of 12)
GTY725593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY *2 CRANKSHAFT PULLEY
*3 TIMING CHAIN CASE OIL SEAL *4 TIMING CHAIN COVER ASSEMBLY
*5 TIMING CHAIN COVER PLATE *6 TIMING CHAIN COVER GASKET
*7 WATER PUMP GASKET *8 CRANKSHAFT PULLEY SET BOLT
*9 OIL PUMP GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Do not apply lubricants to the threaded parts

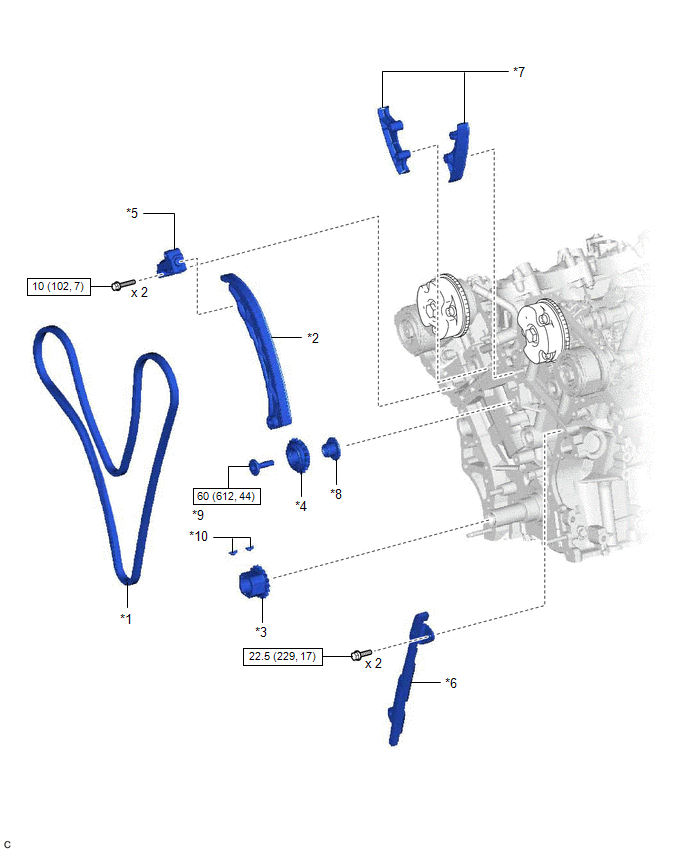

Fig 1: Engine Unit Replacement Components With Torque Specifications (9 Of 12)
GTY701286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 CRANKSHAFT TIMING SPROCKET *4 IDLE SPROCKET ASSEMBLY
*5 NO. 1 CHAIN TENSIONER ASSEMBLY *6 NO. 1 CHAIN VIBRATION DAMPER
*7 NO. 2 CHAIN VIBRATION DAMPER *8 NO. 1 IDLE GEAR SHAFT
*9 NO. 2 IDLE GEAR SHAFT *10 CRANKSHAFT TIMING GEAR KEY
N*m (kgf*cm, ft.*lbf): Specified torque - -

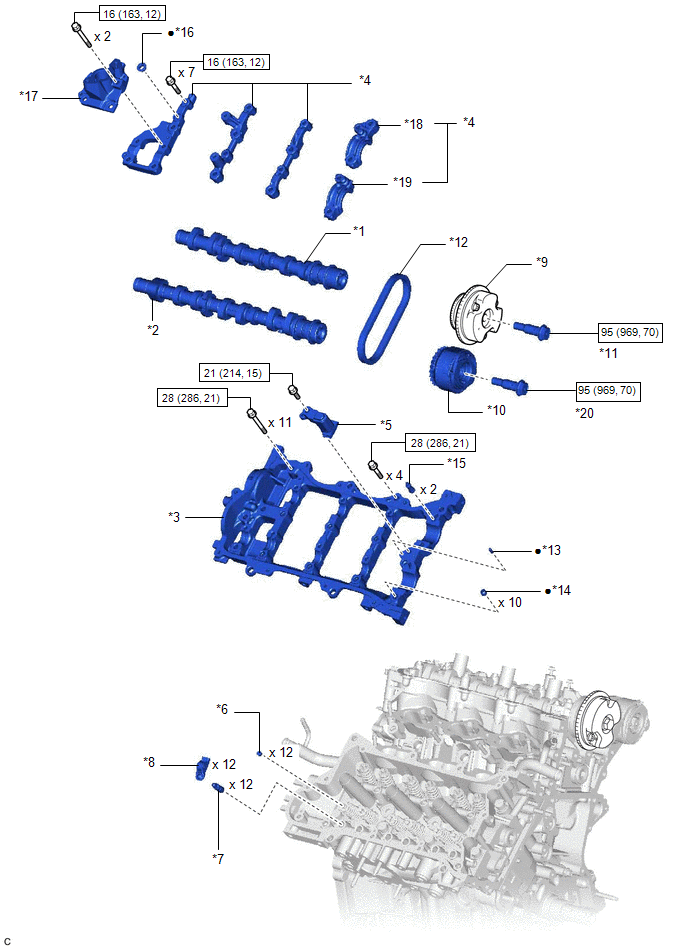

Fig 1: Engine Unit Replacement Components With Torque Specifications (10 Of 12)
GTY708801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 NO. 2 CAMSHAFT
*3 CAMSHAFT HOUSING SUB-ASSEMBLY *4 CAMSHAFT BEARING CAP
*5 NO. 2 CHAIN TENSIONER ASSEMBLY *6 VALVE STEM CAP
*7 VALVE LASH ADJUSTER ASSEMBLY *8 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*9 CAMSHAFT TIMING GEAR ASSEMBLY *10 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
*11 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) *12 NO. 2 CHAIN SUB-ASSEMBLY
*13 STRAIGHT PIN *14 CAMSHAFT BEARING CAP SETTING RING PIN
*15 OIL CONTROL VALVE FILTER *16 CAMSHAFT BEARING CAP OIL HOLE GASKET
*17 FUEL PUMP LIFTER HOUSING *18 NO. 1 CAMSHAFT BEARING CAP
*19 NO. 2 CAMSHAFT BEARING CAP *20 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1)
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

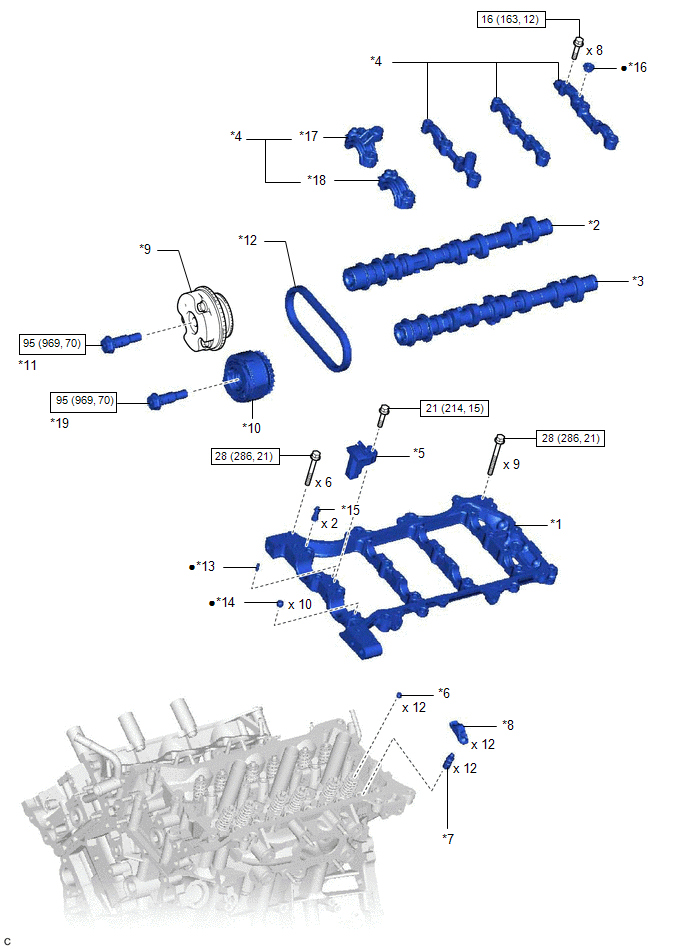

Fig 1: Engine Unit Replacement Components With Torque Specifications (11 Of 12)
GTY713868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT HOUSING SUB-ASSEMBLY LH *2 NO. 3 CAMSHAFT SUB-ASSEMBLY
*3 NO. 4 CAMSHAFT SUB-ASSEMBLY *4 CAMSHAFT BEARING CAP
*5 NO. 3 CHAIN TENSIONER ASSEMBLY *6 VALVE STEM CAP
*7 VALVE LASH ADJUSTER ASSEMBLY *8 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*9 CAMSHAFT TIMING GEAR ASSEMBLY *10 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
*11 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) *12 NO. 2 CHAIN SUB-ASSEMBLY
*13 STRAIGHT PIN *14 CAMSHAFT BEARING CAP SETTING RING PIN
*15 OIL CONTROL VALVE FILTER *16 CAMSHAFT BEARING CAP OIL HOLE GASKET LH
*17 NO. 3 CAMSHAFT BEARING CAP *18 NO. 4 CAMSHAFT BEARING CAP
*19 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

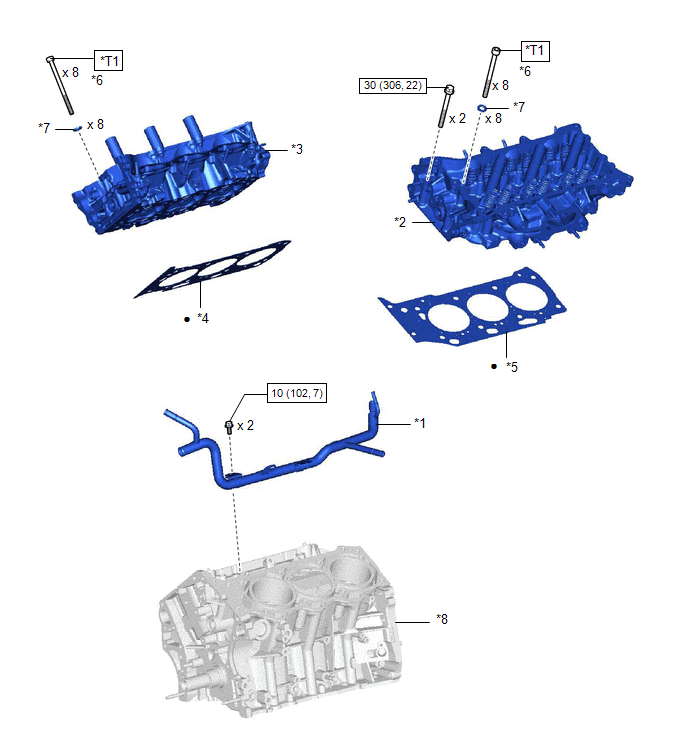

Fig 1: Engine Unit Replacement Components With Torque Specifications (12 Of 12)
GTY688068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 WATER INLET PIPE *2 CYLINDER HEAD LH
*3 CYLINDER HEAD SUB-ASSEMBLY *4 CYLINDER HEAD GASKET
*5 NO. 2 CYLINDER HEAD GASKET *6 CYLINDER HEAD SET BOLT
*7 CYLINDER HEAD SET PLATE WASHER *8 CYLINDER BLOCK SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: Turn 90°
3rd: Turn 90°		 - -
